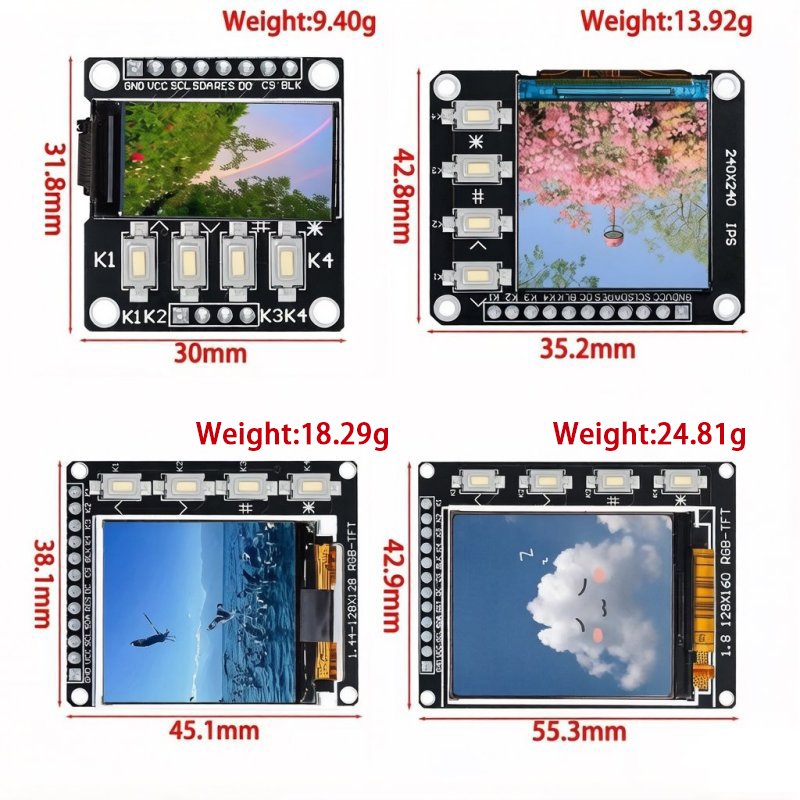

0.96/1.3/1.44/1.8 Inch ST7735 SPI TFT LCD Display Module with 4 Independent Buttons, 3.3V Color Screen for Arduino DIY Project
$1.20
↓ 20%
1.54 Inch TFT LCD Display Module ST7789 Driver SPI Interface 240×240 Resolution Screen
1.54 Inch TFT LCD Display Module ST7789 Driver SPI Interface 240×240 Resolution Screen
Price :
$1.68 $1.69价格范围：$1.68 至 $1.69
- Information related to taxation
- Some question to contact us
- Shipping Information
1.54-inch 240×240 full-color TFT display module with ST7789V chip, SPI interface, 3-5V supply, compatible with Arduino ESP32 STM32 for maker DIY and equipment display.
Description
1.54-inch TFT LCD screen
✅ Well-crafted
✅ High accuracy
✅ Stable performance
📋 Basic Parameters
| Item | Spec |
|---|---|
| Dot Matrix | 240*240 |
| Interface | SPI |
| Display Color | Full Color |
| Module Power Supply | 3-5V |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Connection Method | COG |
| Driver IC | ST7789V |
| Module Size | 3243.72.58 mm |
| Effective Display Area | 29.72*30.12 mm |
| View Area | 27.72*27.72 mm |
| Dot Pitch | 0.1155*0.1155 mm |
| Dot Size | 0.1155*0.1155 mm |
📌 Interface Specification
| PIN | SYMBOL | Function Description |
|---|---|---|
| 1 | GND | Power Ground |
| 2 | VCC | Power Positive |
| 3 | SCL | Clock Signal |
| 4 | SDA | Data Signal |
| 5 | RST | Reset Pin |
| 6 | DC | Command / Data Control |
| 7 | CS | Chip Select |
| 8 | BLK | Backlight Control |
Kind reminder: If there are version differences or images not been updated, please refer to the actual product.
This 1.54 inch TFT LCD module adopts ST7789V driver chip, 240×240 full-color resolution, SPI communication interface. It supports MCU such as Arduino, ESP32, STM32. Widely used for electronic projects, wearable devices, instrument display, DIY maker projects.
