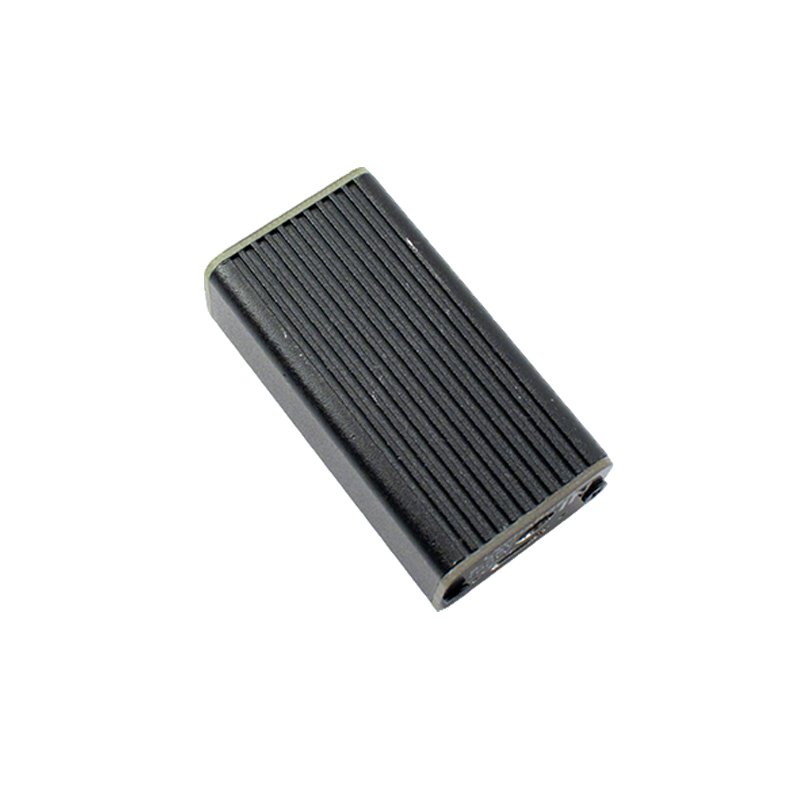

100W All Protocol DC-DC Fast Charging Module 9-35V Input USB-A Type-C PD QC Quick Charger Module

100W All Protocol DC-DC Fast Charging Module 9-35V Input USB-A Type-C PD QC Quick Charger Module - 图片 3

100W All Protocol DC-DC Fast Charging Module 9-35V Input USB-A Type-C PD QC Quick Charger Module

Price :

$7.88

100W All Protocol DC-DC Fast Charging Module 9-24V Input USB Type-C Dual Port PD QC VOOC Converter

Description

✅ Product Overview

This all-protocol super fast charging module is a DC-DC charging converter, NOT a power bank. It supports 9-24V DC input, with a maximum output power of 100W, delivering high-speed fast charging for mobile phones and digital devices.

You can reuse your old DC power adapters. Connect this converter, and ordinary DC power sources can be converted into multi-protocol fast charging power supply. It is compact and portable, easy to carry in your laptop bag for outdoor, vehicle and laboratory use.

📋 Product Specifications

Item	Parameter
Input Voltage	9-24V
Input Interface	DC5.5*2.5, Type-C PD2.0/3.0 Input (PD auto trigger max voltage within 20V)
Output Ports	USB-A Port + Type-C Port
Max Output Power	100W
Dimension	50mm25mm17mm
Weight	34.2g

⭐ Protocol Support

▪ USB-A Port: Genuine VOOC/DASH, compatible with OnePlus 7P, Xiaomi 9, Huawei 22.5W fast charge

▪ Type-C Port: PD2.0, PD3.0, PPS, QC4, and all protocols supported by USB-A

⚠️ Unsupported protocols: Huawei 40W, SUPER VOOC 50W, IQOO 44W, NEX 22.5W

💡 Note: Huawei 40W fast charge phones can backward compatible with SCP 25W fast charging.

📌 Important Notes

Output voltage is always lower than input voltage. To achieve 20V 5A 100W output, the input voltage needs to reach at least 22V.
Some laptops are not supported. Apple iMac identifies 60W charging power.
Charging VOOC / OnePlus DASH devices requires original data cable; third-party cables will cause reduced charging speed.
Reverse connection protection: Accidentally plug PD power into output port will not damage the module, the unit just stops working.
Kind reminder: If there are version differences or images not been updated, please refer to the actual product.

🔧 Application Scenarios

▸ Convert laptop DC power supply to fast charging source

▸ Outdoor portable power conversion

▸ Vehicle DC power fast charging transformation

▸ Maker laboratory power conversion

▸ Mobile phone, tablet daily fast charging

Downloads
