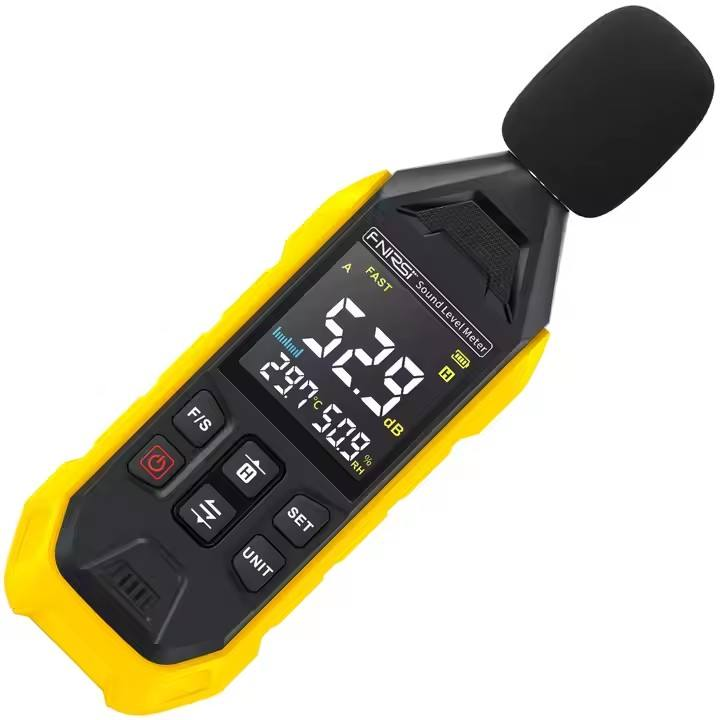

FNIRSI FDM01 Digital Handheld DB Meter 30~130dB 0.5dB Resolution A-Weighting Noise Measuring Instrument Audio Sound Level Meter
FNIRSI FDM01 Digital Handheld DB Meter 30~130dB 0.5dB Resolution A-Weighting Noise Measuring Instrument Audio Sound Level Meter
Price :
$16.00
- Information related to taxation
- Some question to contact us
- Shipping Information
FNIRSI FDM-01 Digital Sound Level Meter, 30~130dB Decibel Tester with A-Weighting, FAST/SLOW Mode, Temperature & Humidity, Rechargeable 600mAh Battery
Description
FNIRSI FDM-01 is a compact handheld digital noise meter for environmental noise measurement. It uses a 6mm high-sensitivity condenser microphone, with measurement range 30~130dB, ±1.5dB accuracy, 0.1dB resolution, and frequency response 31.5Hz~8.5kHz. It supports FAST/SLOW time weighting and A-weighting, and simultaneously displays ambient temperature and humidity. It features MIN/MAX/AVG value recording, data hold, overload indication, and adjustable threshold light alarm. Equipped with a VA color screen with backlight, built-in 600mAh rechargeable lithium battery and Type-C charging. It complies with IEC651 Type 2 standard. Widely used for home noise inspection, factory workshop, construction site, office environment and audio equipment testing.
- 3-in-1: noise decibel + ambient temperature + humidity measurement
- 30~130dB measuring range, 0.1dB resolution, ±1.5dB high precision
- A-weighting, FAST (125ms) / SLOW (1000ms) response switchable
- MIN / MAX / AVG recording, data hold, OVER/UNDER overload reminder
- VA color screen with backlight, clear reading under strong light
- Adjustable threshold light alarm for exceeding noise limit

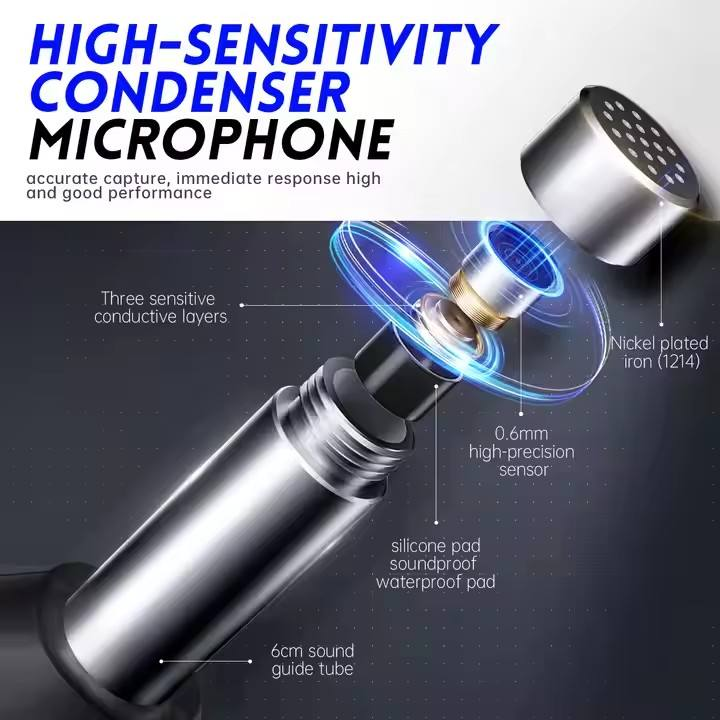

- High-sensitivity condenser microphone with windproof foam cover
- Built-in 600mAh lithium battery, Type-C rechargeable, auto power-off
- Compact lightweight handheld design, easy to carry to field sites
- Meets IEC651 Type 2 standard, suitable for home, factory and environmental testing
Package Contents:
- FDM-01 Sound Level Meter Main Unit
- Windproof foam microphone cover
- Type-C charging cable
- English & Chinese user manual
- Retail carton
Dimension: 190 × 61 × 31 mm
Net Weight (Host Only): ~127g
Gross Weight (Full set with retail box): ~170–200g
