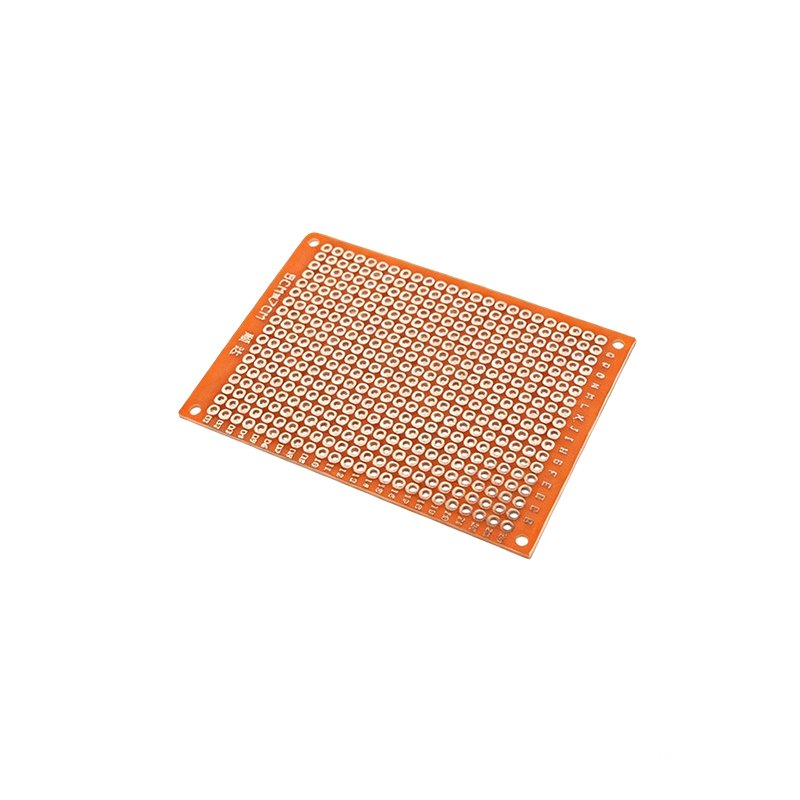

Bakelite Universal Prototyping Perfboard (2.54mm Pitch)

Overview

This universal prototype perfboard adopts Bakelite (phenolic paper laminate) as base material, with standard 2.54mm hole pitch, fully compatible with through-hole components, integrated circuits, pin headers and common electronic modules. The surface is fitted with tin-plated independent copper pads, delivering excellent solderability and reliable insulation. We supply a full lineup of standard dimensions, suitable for small sensor circuits up to medium complex embedded prototype construction. Widely used for circuit trial assembly, university laboratory teaching, equipment maintenance refitting and maker DIY electronic projects throughout Europe.

Key Features

1. ✅ Standard 2.54mm hole pitch, compatible with mainstream through-hole electronic components
2. ✅ Base Material: Bakelite (Phenolic Paper Board) – good rigidity, reliable insulation, cost-efficient
3. ✅ Tin-plated isolated copper pads, easy soldering, firm solder connection
4. ✅ Complete range of standard sizes for flexible selection
5. ✅ Can be cut and trimmed into custom shapes according to project layout
6. ✅ Economical choice for rapid circuit prototyping without formal PCB production

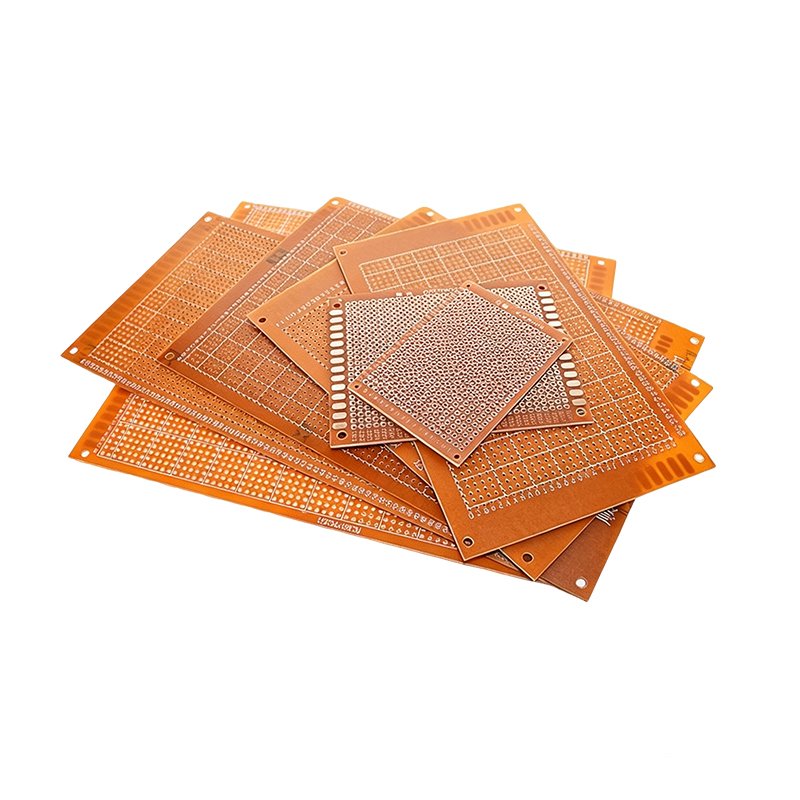

Available Standard Sizes

5×7cm, 7×9cm, 6×11cm, 8×12cm, 9×15cm, 10×16cm, 12×18cm, 15×20cm

Typical Applications

• University and vocational school electronics laboratory experiments
• Electronic circuit prototype verification and trial assembly
• Electronic equipment maintenance and circuit modification
• Auxiliary DIY circuits for Arduino, MCU and FPGA development projects
• Maker hobby electronics research & testing

Important Notes

1. Do not apply excessive soldering heat for a long time; high temperature may scorch the bakelite substrate.
2. Wear protective eyewear when cutting the circuit board to prevent debris splashing.
3. Copper pads are isolated. Use solder bridges or wire jumpers to build circuit connections.
