ESP8266 Module Adapter Board Breakout Board For ESP-07 ESP-08 ESP-12 ESP-12E ESP-12F WiFi Module

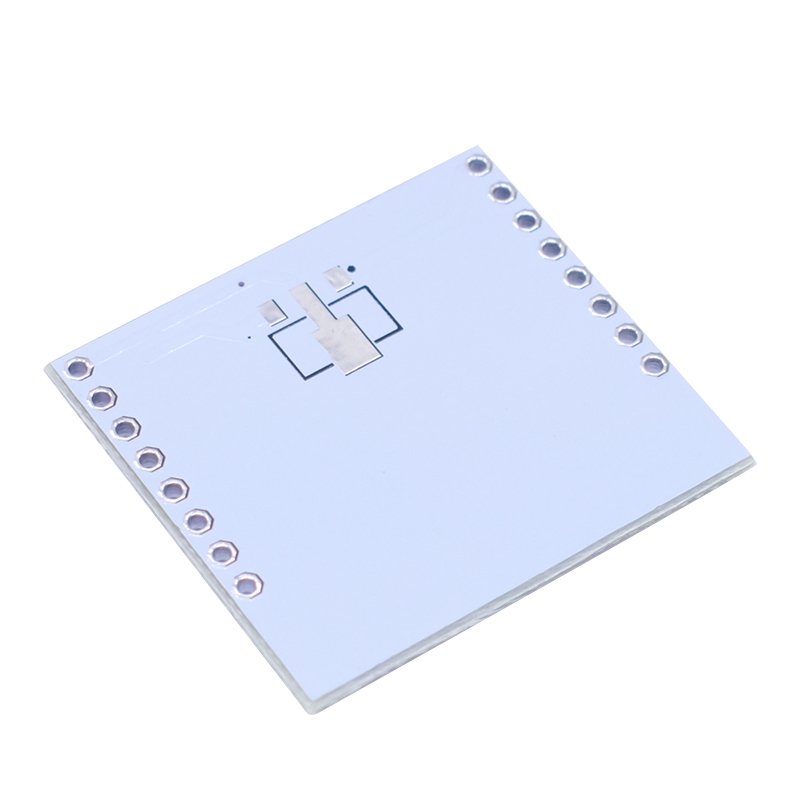

ESP8266 Module Adapter Board Breakout Board For ESP-07 ESP-08 ESP-12 ESP-12E ESP-12F WiFi Module - 图片 3

ESP8266 Module Adapter Board Breakout Board For ESP-07 ESP-08 ESP-12 ESP-12E ESP-12F WiFi Module

Price :

$0.83

This breakout adapter board expands all GPIO pins of ESP8266 WiFi module, compatible with ESP-07, ESP-08, ESP-12, ESP-12E, ESP-12F. Ideal for DIY projects, experimental testing and IoT development.

Description

✅ ESP8266 Module Adapter Board

✅ Serial WIFI

✅ Compatible with ESP-07/08/12/12E/12F

📋 Product Introduction

This adapter board leads out all IO ports of ESP8266 module for testing.
It supports five models of WIFI modules: ESP-07, ESP-08, ESP-12, ESP-12E, ESP-12F.
The 3.3V voltage regulator chip is not pre-soldered by default, only reserved pad positions.
The package includes pin headers (not pre-soldered).
Package list: 1 × adapter board, 2 × pin headers.

👥 Applicable People

Suitable for college students, engineers, technicians, factory testing, personal DIY and electronic enthusiasts.

📏 Product Size

Kind reminder: manual measurement may have slight errors

Dimension: 31mm × 28mm

Weight: 3.3g

Downloads

PDF File
