SN65HVD230 CAN Bus Transceiver Module 3.3V 1Mbps CAN Communication Board For MCU
SN65HVD230 CAN Bus Transceiver Module 3.3V 1Mbps CAN Communication Board For MCU
Price :
$0.38
- Information related to taxation
- Some question to contact us
- Shipping Information
This SN65HVD230 CAN transceiver module works at 3.3V, supports up to 1Mbps communication rate, fully compliant with ISO11898 standard. Built-in multiple protection circuits, widely used in industrial automation, automobile, robot CAN bus communication projects.
Description
✅ Product Introduction
The SN65HVD230 controller is a network (CAN) transceiver, specifically designed to be used with the Texas Instruments TMS320Lx240xTM 3.3-V DSP (with CAN controller) or with equivalent devices. Each CAN transceiver is designed to provide differential transmit capability to the bus and differential receive capability to the CAN controller, with a maximum transmission speed of up to 1 Mbps. The device is designed to operate in extremely harsh environments and features cross-line protection, ground fault and overvoltage protection, overtemperature protection, and a wide common-mode range.
📋 Product Specifications
| Parameter | Details |
|---|---|
| Supply voltage | 3.3V |
| Standard | Fully compatible with ISO11898 standard |
| Input impedance | High input impedance, supports up to 120 nodes |
| Standby current | Typical 370 μA, low power standby mode |
| Max transmission rate | 1Mb/s |
| Protection | Thermal protection, open-circuit fault protection |
| Anti-interference | Transient interference resistance, slope control reduces RFI; differential receiver resists common-mode & EMI interference |

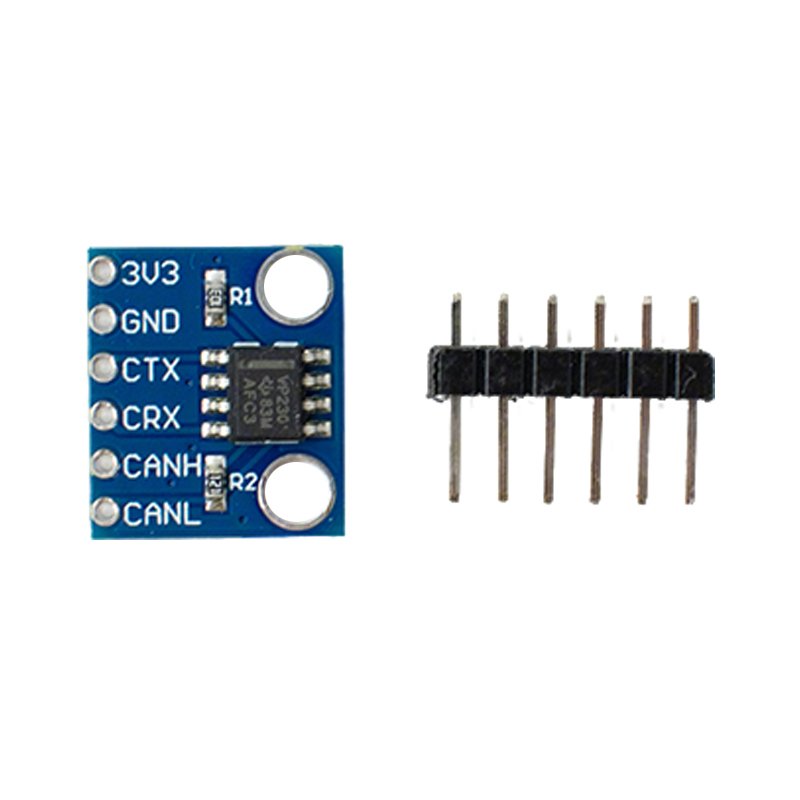

📌 Pin Description
- 3V3: Connect to the positive terminal of the 3.3V power supply
- GND: Connect to the negative terminal of the power supply
- CTX: CAN controller data transmission input
- CRX: CAN bus data reception output
- CANH: CAN bus high (high-level CAN voltage input/output)
- CANL: CAN bus low (low-level CAN voltage input/output)
🔧 Work mode and control logic
The SN65HVD230 has three different operating modes: high-speed, slope, and standby. Its operating mode can be controlled through the Rs control pin.
The Tx output pin of the CAN controller connects to the data input pin D of the SN65HVD230 to send node data to CAN network; the Rx receiving pin of the CAN controller connects to the data output pin R of the SN65HVD230 for data receiving.
The mode selection port Rs connects via a jumper and a slope resistor (0~100kΩ potentiometer) with one end grounded, enabling hardware selection of three working modes.
🌐 Application
- Motor control
- Industrial automation
- Base station control and status monitoring
- Robotics
- Automotive industry
- UPS control
📏 Size & Weight
Dimension: 14mm × 16mm
Weight: 2.9g
Kind reminder: If there are version differences or images not been updated, please refer to the actual product.
Downloads
PDF File
SN65HVD230 CAN Bus Transceiver Module 3.3V 1Mbps CAN Communication Board For MCU
Price :
$0.38
- Information related to taxation
- Some question to contact us
- Shipping Information
This SN65HVD230 CAN transceiver module works at 3.3V, supports up to 1Mbps communication rate, fully compliant with ISO11898 standard. Built-in multiple protection circuits, widely used in industrial automation, automobile, robot CAN bus communication projects.
Description
✅ Product Introduction
The SN65HVD230 controller is a network (CAN) transceiver, specifically designed to be used with the Texas Instruments TMS320Lx240xTM 3.3-V DSP (with CAN controller) or with equivalent devices. Each CAN transceiver is designed to provide differential transmit capability to the bus and differential receive capability to the CAN controller, with a maximum transmission speed of up to 1 Mbps. The device is designed to operate in extremely harsh environments and features cross-line protection, ground fault and overvoltage protection, overtemperature protection, and a wide common-mode range.
📋 Product Specifications
| Parameter | Details |
|---|---|
| Supply voltage | 3.3V |
| Standard | Fully compatible with ISO11898 standard |
| Input impedance | High input impedance, supports up to 120 nodes |
| Standby current | Typical 370 μA, low power standby mode |
| Max transmission rate | 1Mb/s |
| Protection | Thermal protection, open-circuit fault protection |
| Anti-interference | Transient interference resistance, slope control reduces RFI; differential receiver resists common-mode & EMI interference |
📌 Pin Description
- 3V3: Connect to the positive terminal of the 3.3V power supply
- GND: Connect to the negative terminal of the power supply
- CTX: CAN controller data transmission input
- CRX: CAN bus data reception output
- CANH: CAN bus high (high-level CAN voltage input/output)
- CANL: CAN bus low (low-level CAN voltage input/output)
🔧 Work mode and control logic
The SN65HVD230 has three different operating modes: high-speed, slope, and standby. Its operating mode can be controlled through the Rs control pin.
The Tx output pin of the CAN controller connects to the data input pin D of the SN65HVD230 to send node data to CAN network; the Rx receiving pin of the CAN controller connects to the data output pin R of the SN65HVD230 for data receiving.
The mode selection port Rs connects via a jumper and a slope resistor (0~100kΩ potentiometer) with one end grounded, enabling hardware selection of three working modes.
🌐 Application
- Motor control
- Industrial automation
- Base station control and status monitoring
- Robotics
- Automotive industry
- UPS control
📏 Size & Weight
Dimension: 14mm × 16mm
Weight: 2.9g
Kind reminder: If there are version differences or images not been updated, please refer to the actual product.
Downloads
PDF File
