The amplifier uses the high-performance TPA3116D2 amplifier chip from the American company TI as its core paired with high-quality peripheral components. It has a wide operating voltage of 5-24V, a maximum output power of 50W+50W and an efficiency of up to 90%. It can be powered by a switching power supply, a laptop power supply, a battery, or a car power supply, making it a highly cost-effective amplifier module.

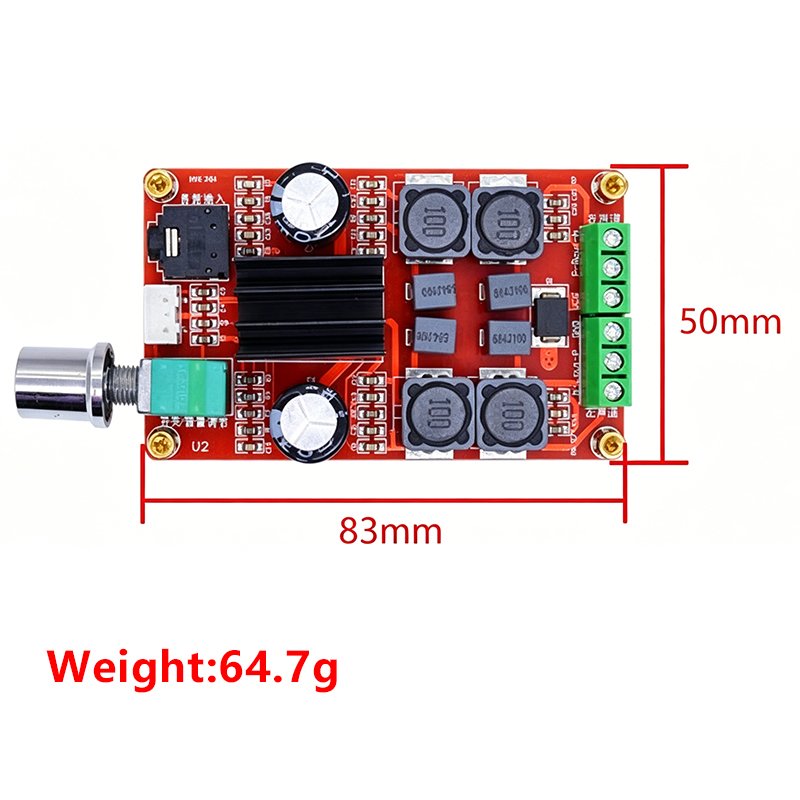

Product Name: Digital Amplifier Board Audio Chip: TPA3116D2 Input Voltage: DC 5-24V Audio Response Range: 20-20KHz Output Type: Dual Channel; Stereo Overall Dimensions: 83 * 50 * 29mm (excluding potentiometer) Weight: 64.7g

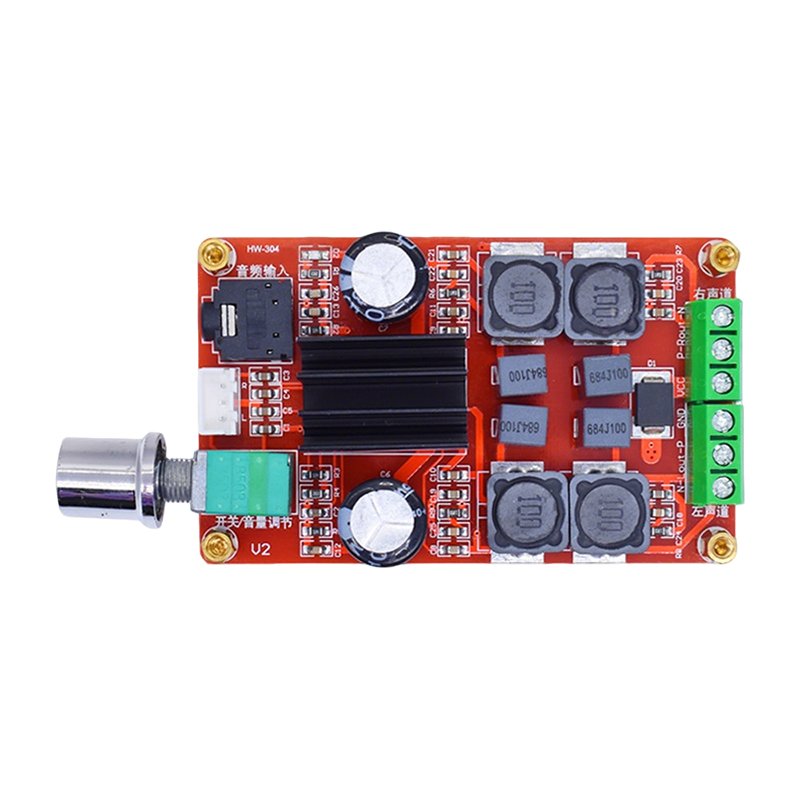

3.5mm audio input Audio input pin header Switch/volume adjustment potentiometer Right channel output terminal Power input terminal Left channel output terminal

• Power reverse connection protection, speaker short circuit protection, power-on and power-off surge protection, no ‘POP’ sound when switching on and off. • Uses two 1000uF/35V power filter capacitors, effectively enhancing low-frequency performance. • Uses shielded inductors instead of ordinary inductors, minimizing interference between channels and making the sound quality purer.

• The recommended power supply is 24V, do not exceed this voltage! • Do not short-circuit the audio outputs to each other or to the ground! • Please check carefully before powering on to ensure the wiring is correct before turning on the power!

Kind reminder: If there are version differences or images not been updated, please refer to the actual product.
