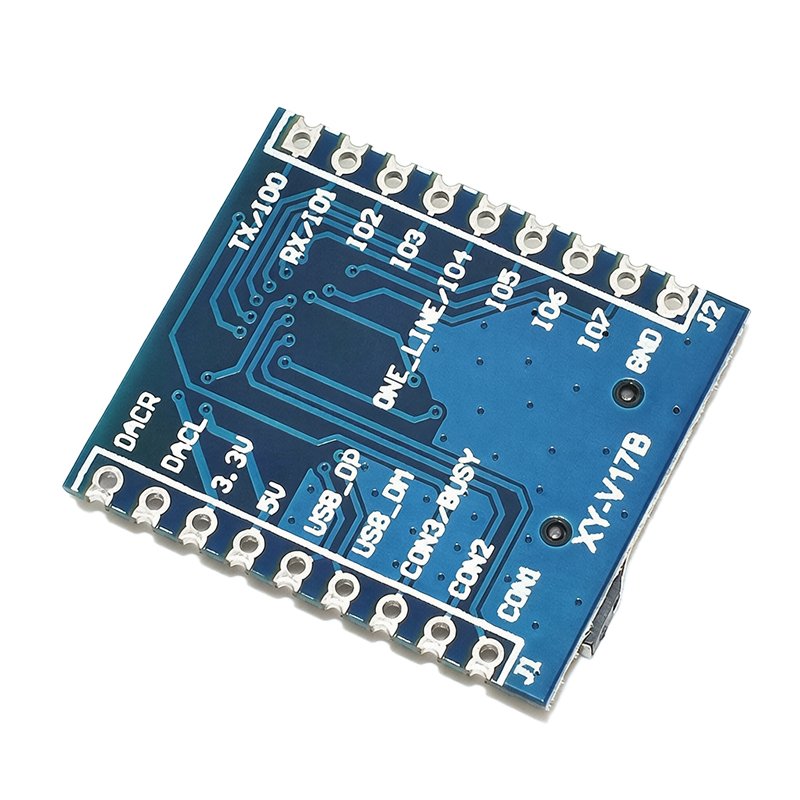

XY-V17B Serial Port Controlled Voice Module TF Card Audio Playback Module

SKU 38X07 Category Audio Modules Tags audio module, mp3 sound module, serial controlled audio board, serial voice module, tf card mp3 player, uart audio module, voice module, Voice Playback Module, xy-v17b 品牌： WAVGAT

XY-V17B Serial Port Controlled Voice Module TF Card Audio Playback Module

Price :

$1.20

XY-V17B intelligent voice module supports UART serial control, one-line bus control and IO trigger. It decodes MP3 & WAV audio, supports up to 32GB TF card, widely used for prompt voice playback in industrial control, equipment and smart devices.

Description

✅ Serial Port Controlled Voice Module XY-V17B

✅ Stable Performance | Easy Operation

📌 Product Overview

The XY-V17B is an intelligent voice module independently developed by our company, integrating 10-segment triggering, UART serial control, ONE-line single-bus serial control, standard MP3 functions, and more; it supports MP3 and WAV decoding formats, with a maximum support for 32GB TF card storage, and audio files on the TF card can be updated by connecting to a computer via a USB data cable.

📋 Product Features

Supports MP3 and WAV decoding formats.
Supported sampling rates (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
24-bit DAC output, dynamic range up to 90dB, signal-to-noise ratio up to 85dB.
Fully supports FAT16/FAT32 file systems, maximum support for 32GB TF cards, supports 32GB USB drives.
Supports UART serial control for voice playback, can control play, pause, track selection, volume up/down, etc., with a maximum of 65,535 tracks, baud rate 9600bit/s.
Supports IO trigger function, 8 IO ports can individually trigger 8 tracks or 8 IO ports can be combined to trigger 255 tracks.
Supports One-line single-bus serial control, can control play, pause, track selection, volume up/down, etc.
Supports 3 configurable IOs for mode selection.

⚠️ Kind Reminder

If there are version differences or images have not been updated, please refer to the actual product.
