DC 8-24V Brushless Motor PWM Speed Control Board, 18KHz 5V PWM Output BLDC Motor Speed Regulator
DC 8-24V Brushless Motor PWM Speed Control Board, 18KHz 5V PWM Output BLDC Motor Speed Regulator
Price :
原价为：$0.50。$0.48当前价格为：$0.48。
- Information related to taxation
- Some question to contact us
- Shipping Information
Brushless Motor PWM Speed Control Board DC 8-24V 0-100% Duty Cycle Motor Speed Regulator Forward Reverse Start Stop Control Module
Description

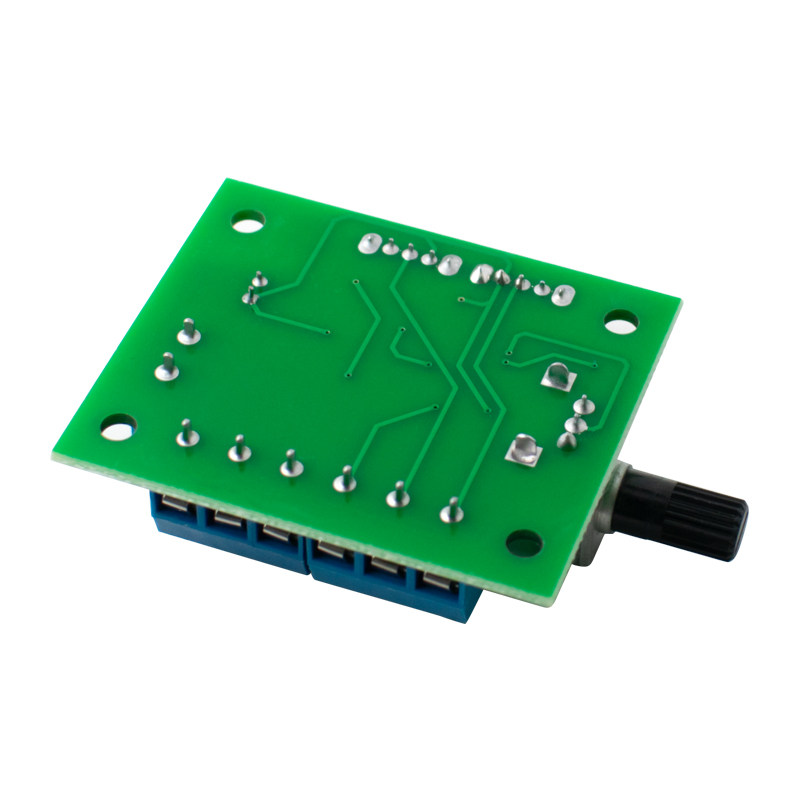

Brushless Motor PWM Speed Control Board
This DC brushless motor speed controller supports DC 8-24V input voltage. It outputs 5V PWM signal at about 18kHz frequency, with adjustable duty cycle ranging from 0% to 100%.
The board is equipped with a speed control potentiometer, start/stop switch and forward/reverse rotation switch. The forward and reverse function is only available when the matched brushless motor itself supports positive and reverse rotation.
⚠️ Important Note: This control board is only suitable for brushless motors with built-in driver and independent PWM signal terminal. It cannot directly drive brushless motors without an onboard driver.
Terminal Definition
- VCC: Power positive input (8-24V)
- GND: Power negative input
- +5V: 5V signal power output
- PWM: PWM speed regulation signal output
- BRK: Start / Stop control terminal
- CW/CCW: Forward / Reverse rotation control terminal
Product Parameters
Working Voltage: DC 8V ~ 24V
PWM Frequency: ~18kHz
PWM Output Level: 5V
Duty Cycle: 0% ~ 100%
Dimensions: 48mm * 40mm
Net Weight: 16g
Downloads
PDF File
