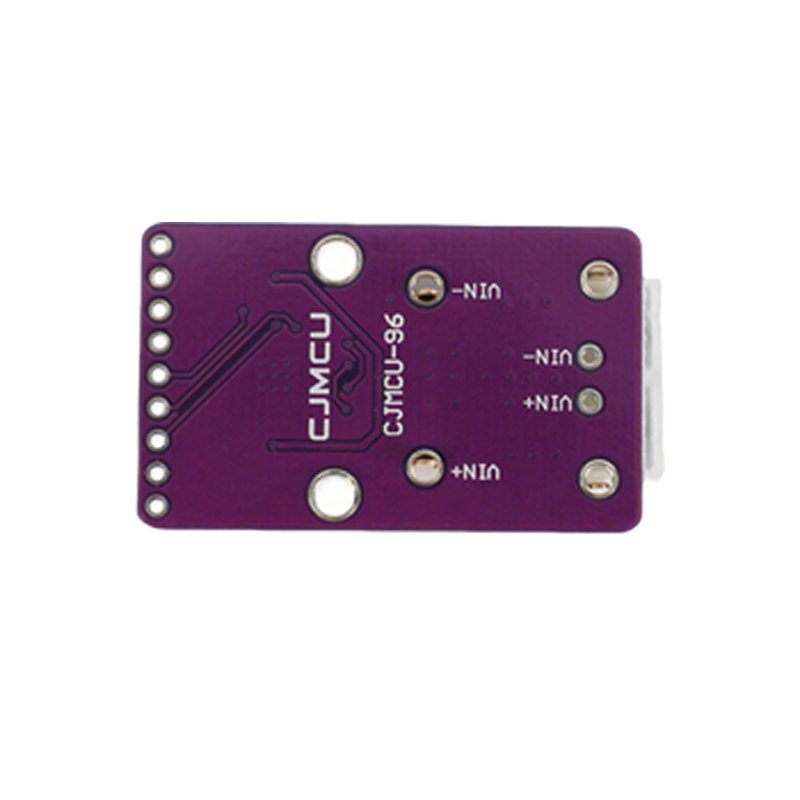

MCP9600 Thermocouple Converter Module K-Type I2C Temperature Sensor Breakout Board
MCP9600 Thermocouple Converter Module K-Type I2C Temperature Sensor Breakout Board
Price :
原价为：$30.00。$22.89当前价格为：$22.89。
- Information related to taxation
- Some question to contact us
- Shipping Information
MCP9600 Thermocouple Converter Module I2C K Type Temperature Sensor Board
Description
★ Product Features
● Thermocouple EMF to °C converter with integrated cold junction compensation
● Supports 8 thermocouple types defined by NIST ITS-90: Type K
● Maximum hot junction accuracy: ±1.5°C
● Typical measurement resolution: 0.0625°C for cold junction & hot junction
● Four programmable temperature alarm outputs
▸ Monitor hot junction or cold junction temperature
▸ Detect temperature rise or fall
▸ Programmable hysteresis up to 255°C
● Built-in programmable digital temperature filter
● Low power consumption design
▸ Support shutdown mode
▸ Burst mode: 1 ~ 128 temperature sampling
● 2-wire I2C compatible interface, 100kHz; up to 8 modules on one I2C bus
| Parameter | Specification |
|---|---|
| Operating Voltage | 2.7V ~ 5.5V |
| Typical Operating Current | 300 μA |
| Typical Shutdown Current | 2 μA |
| Chip Package | 20-lead MQFN |
📌 Product Description
The MCP9600 is developed by Microchip Technology Inc. It converts thermocouple electromotive force (EMF) into Celsius temperature values with integrated cold-junction compensation.
The chip can correct nonlinear errors of eight kinds of thermocouples, and provides accurate temperature reading with ±1.5°C accuracy for selected thermocouple. Its calibration coefficients are derived from the official NIST ITS-90 thermocouple database.
The MCP9600 digital temperature sensor has user programmable registers, bringing flexible design for various temperature measurement projects. Users can configure low-power mode for battery-operated devices, adjustable digital filter for fast-changing temperature, and four independent programmable temperature alarm outputs to monitor multiple temperature zones.
Multiple configurations are available for temperature alarm limits, including alarm polarity (active low / active high push-pull output). It can work in comparator mode for thermostat control or interrupt mode for microprocessor system. The alarms support rising/falling temperature detection with hysteresis up to ±225°C.
It adopts standard 2-wire I2C serial interface. The ADDR pin configures device address, allowing up to eight modules to be connected on a single I2C bus.
▶ Typical Application
● Petrochemical thermal management
● Handheld measuring instruments
● Industrial equipment temperature monitoring
● Industrial oven temperature control
● Industrial engine temperature detection
● Temperature acquisition test rack
⚠️ Kind Reminder
If there are version differences or images not updated, please refer to the actual delivered product.
