STC89C52RC 51 Microcontroller Core Development Board CH340 USB Demo Board
STC89C52RC 51 Microcontroller Core Development Board CH340 USB Demo Board
Price :
原价为：$1.80。$1.58当前价格为：$1.58。
- Information related to taxation
- Some question to contact us
- Shipping Information

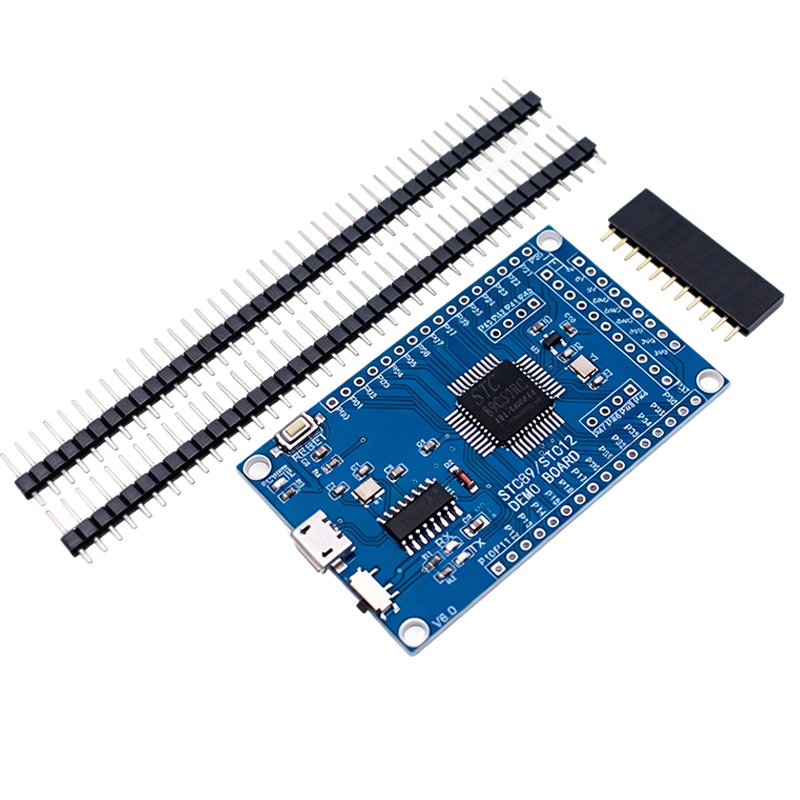

STC89C52RC Minimum System Development Board V6.0, CH340 USB-TTL Download Circuit, 51 Single Chip Microcomputer Core Board, Compatible STC89/STC12 Series MCU for Student Electronic Experiment DIY
Description
Product Overview
V6.0 STC89C52RC core development board is a universal minimum system board for 51-series single-chip microcomputers, supporting STC89C52RC and STC12C5A60S2 two mainstream SMD MCU chips. Built-in CH340 USB to serial download circuit, Type-C interface for power supply and program burning, all P0/P1/P2/P3/P4 full IO pins fully led out, equipped with reset button, power indicator, TX/RX transceiver indicator, independent crystal oscillator circuit, reserved TFT LCD screen interface and power expansion terminal. Compact size, complete peripheral circuits, matching full set of supporting materials, ideal for university electronic teaching, student DIY production and embedded development debugging.
Core Product Features
- Dual Chip Compatibility Design Supports STC89C52RC traditional 51 chip and STC12C5A60S2 enhanced 51 chip; different P0 port drive modes for two versions: STC89 series needs external pull-up resistor for high-current driving, STC12 series can configure IO mode via register without extra resistor.
- Integrated CH340 USB-TTL Download Circuit Onboard CH340 chip, Type-C one-line power supply & program download, no extra serial adapter required; comes with complete CH340 driver files, compatible with Windows / Linux systems.
- Full IO Pin Expansion & Rich Reserved Interfaces All P0/P1/P2/P3/P4 IO ports fully broken out, reserved dedicated TFT color screen LCD interface, power expansion terminal, crystal oscillator circuit; matched male/female pin headers for flexible wiring with sensors, LCD1602, LCD12864 and other modules.
- Complete Onboard Basic Peripherals Independent reset button, power indicator light, TX/RX serial transceiver status LED, power switch, stable crystal oscillator circuit, standard minimum system peripheral circuit, plug and play after soldering pin headers.
- Ultra-small Compact PCB & Light Weight PCB size 62.5×38.5mm, net weight only 13.7g, easy to embed into small equipment, convenient for portable experimental projects.
- Full Set Supporting Technical Materials Comes with CH340 driver, programming software, burning tool, schematic, demo code, download operation tutorial, complete data package for quick development.
Full Technical Specifications
| Parameter | Detailed Data |
|---|---|
| Model | STC89/STC12 DEMO BOARD V6.0 |
| Compatible MCU | STC89C52RC / STC12C5A60S2 SMD chip |
| Download Chip | CH340 USB to TTL serial chip |
| Power & Download Interface | Type-C USB port |
| IO Resource | Full P0/P1/P2/P3/P4 pin breakout |
| Onboard Components | Reset key, power switch, power LED, TX/RX indicator, crystal oscillator |
| Reserved Interfaces | TFT LCD dedicated socket, power expansion terminal |
| PCB Dimension | 62.5mm × 38.5mm |
| Net Weight | 13.7g |
| Matching Accessories | 2pcs long pin headers, 1pcs female socket |
| Supporting Documents | Driver, burning software, schematic, demo program, operation guide |
P0 Port IO Mode Description
STC89C52RC Version
P0 port is open-drain output; external pull-up resistor is required when driving external loads with large current; directly compatible with LCD1602 / LCD12864 screen without extra resistor.
STC12C5A60S2 Version
Adjust IO drive mode via P0M0 / P0M1 registers, 4 configurable modes:
- 00: Quasi-bidirectional traditional 51 IO mode
- 01: Push-pull strong output, max 20mA drive current
- 10: High-impedance input only
- 11: Open drain, need external pull-up resistor
Wiring & Operation Guide
- Pin Header Soldering: Solder the supplied pin headers to the board as required, convenient for external module connection.
- Power Supply: Plug Type-C cable into computer USB or 5V power adapter to supply power, power indicator lights up normally.
- Program Download: Install CH340 driver, open STC burning software, select corresponding chip model, load hex file to complete one-click download.
- Peripheral Expansion: Connect LCD screen, sensor modules to corresponding IO pins, reference supporting demo code for function development.
Application Scenarios
- College electronic technology experiment, 51 single-chip microcomputer teaching training
- Student DIY intelligent car, temperature & humidity detection, alarm, digital clock production
- Embedded small control system prototype debugging, industrial simple control board development
- Beginner entry learning platform for 51 MCU programming
Important Usage Notes
- Distinguish the chip version when writing programs, the P0 port driving mode is different between STC89 and STC12 series.
- When STC89 chip P0 port drives high-power loads, must add external pull-up resistors to avoid abnormal IO output.
- Use standard Type-C 5V power supply, do not input overvoltage to prevent burning the CH340 and main control chip.
- PCB silkscreen, capacitor and pin header color may have slight batch differences, which will not affect core functions.
