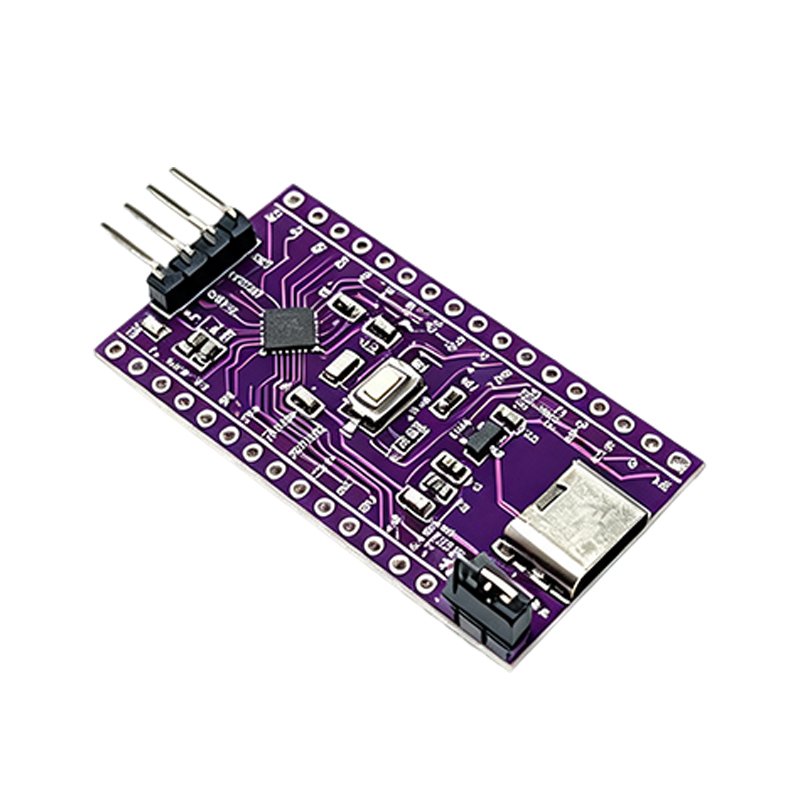

STM32L031G6U6 Development Board Type-C Low Power STM32L0 Core Minimum System Board

STM32L031G6U6 Development Board Type-C Low Power STM32L0 Core Minimum System Board - 图片 3

STM32L031G6U6 Development Board Type-C Low Power STM32L0 Core Minimum System Board

Price :

原价为：$2.00。当前价格为：$1.85。

STM32L031G6U6 Core Board ARM Cortex-M0 Low Power Microcontroller Development Board Type-C Interface

Description

📌 Product Introduction

This core board is built around the STM32L031G6U6 chip equipped with ARM Cortex-M0 core. It reserves complete chip peripheral resources, designed for rapid prototype development and project deployment. No redundant extra modules are mounted on the board to maximize flexibility for secondary development.

📌 Main Features

Equipped with basic working circuits for STM32L031G6U6, including 8MHz external high-speed crystal circuit, power management circuit, SWD debug interface, BOOT selection circuit.
Led out nearly all available chip resources: all I/O ports, reset pins, BOOT selection pins.
Onboard power indicator LED (PWRLED) and operation indicator LED controlled by PA15. The PA15 indicator can be disconnected if GPIO resources are insufficient.
Multiple power supply options:
• Powered via Type-C USB interface
• Powered through SWD debugger (2.7V-3.6V)
• External 5V~12V power input via 5V pin
⚠️ Warning: Do NOT use multiple power sources at the same time. Cross power supply may cause short circuit and damage the board or debugger.
Standard SWD download & debug interface, compatible with JLINK, ST-LINK, DAPLINK for program flashing and debugging.
Onboard reset button, and external reset pin labeled “R” for convenient debugging.

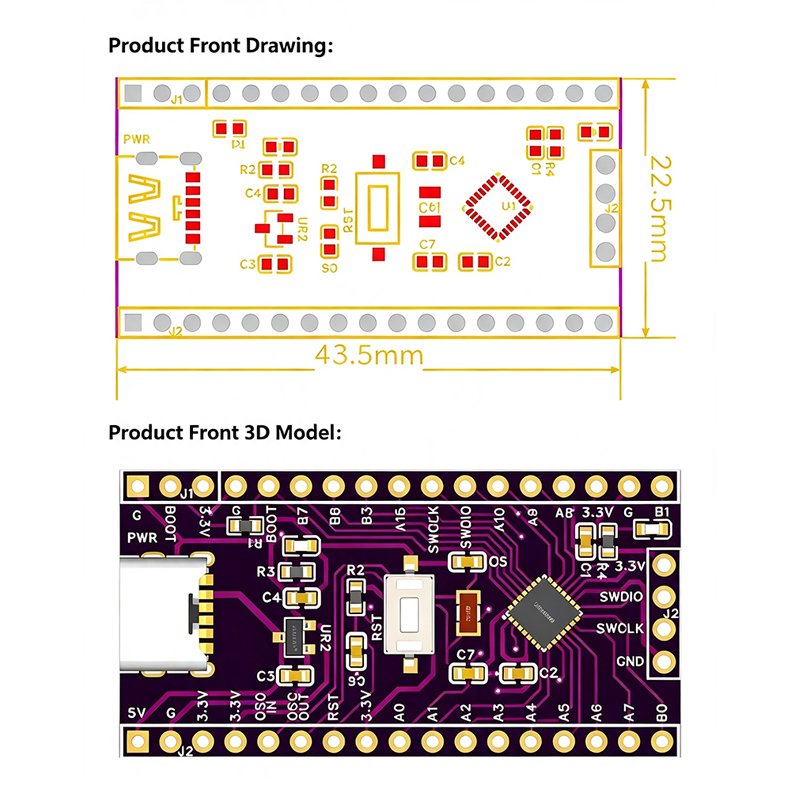

📌 Product Dimensions

Length: 43.5mm

Width: 22.5mm

💡 Kind Reminder

If there are version differences or the picture information has not been updated, please refer to the actual product.
