ESP32-H2-DevKitM-1-N4 Core Board – RISC-V Single-Core MCU with Bluetooth 5.4 & Zigbee/Thread
ESP32-H2-DevKitM-1-N4 Core Board – RISC-V Single-Core MCU with Bluetooth 5.4 & Zigbee/Thread
Price :
$3.85 $4.25价格范围：$3.85 至 $4.25
- Information related to taxation
- Some question to contact us
- Shipping Information
ESP32-H2-DevKitM-1-N4 development board featuring RISC-V 32-bit single-core MCU with Bluetooth 5.4 (LE) and Zigbee/Thread/Matter support. Available in H2 (2MB) and N4 (4MB) Flash variants, with optional pre-soldered pin headers.
Description
Product Overview

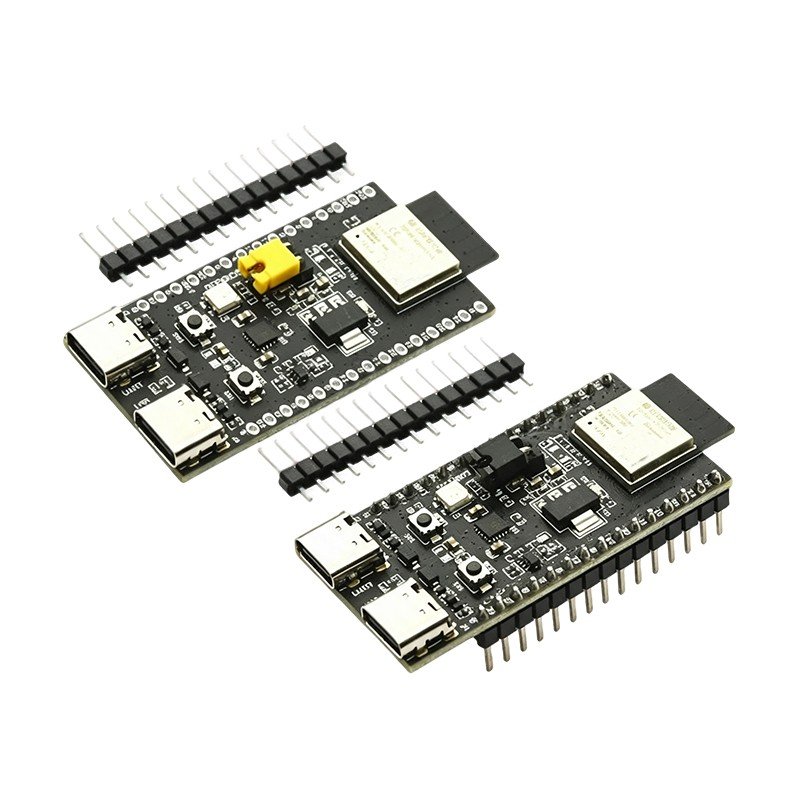

The WAVGAT ESP32-H2-DevKitM-1-N4 is a compact development board built around the ESP32-H2 chip, featuring a RISC-V 32-bit single-core processor with Bluetooth 5.4 (LE), IEEE 802.15.4 (Zigbee/Thread/Matter) support.Key Features:
- RISC-V 32-bit Single-Core MCU – Up to 96 MHz, low-power architecture
- Bluetooth 5.4 (LE) – Latest Bluetooth Low Energy with improved security and data rates
- Zigbee/Thread/Matter – Full IEEE 802.15.4 radio for smart home and IoT mesh networking
- 4 MB Flash (N4) – Ample storage for firmware and OTA updates
- 320 KB SRAM – Sufficient memory for complex IoT applications
- Dual Type-C USB Interfaces – One for programming/debug (USB-UART bridge), one for native USB 1.1 OTG
- 3.3V/5V Power Supply – Flexible power options via USB or external pin
- Rich GPIO Expansion – 27 programmable GPIOs, ADC, SPI, I2C, I2S, UART, PWM
- RGB LED – Built-in addressable WS2812 RGB LED for status indication
- Boot/Reset Buttons – Convenient onboard buttons for development
- Compatible with Arduino IDE & ESP-IDF – Wide ecosystem support
Specifications:
| Chipset | ESP32-H2-MINI-1U (H2/N4 variants available) |
| MCU Architecture | RISC-V 32-bit Single-Core @ 96 MHz |
| Wireless | Bluetooth 5.4 (LE) + IEEE 802.15.4 (Zigbee/Thread) |
| Flash | 2 MB (H2) / 4 MB (N4) |
| SRAM | 320 KB |
| USB Interfaces | Dual Type-C (USB-UART + Native USB 1.1 OTG) |
| GPIO | 27 x Programmable GPIOs |
| Onboard Peripherals | RGB LED, Boot & Reset Buttons, 3.3V Regulator |
| Dimensions | ~56mm x 28mm |
| Module Options | ESP32-H2-MINI-1U-H2 (Pre-soldered/Not soldered), ESP32-H2-MINI-1U-N4 (Pre-soldered/Not soldered) |
Applications:
- Smart Home & IoT Devices (Matter-compatible)
- Bluetooth Mesh & Low-Power Sensor Networks
- Zigbee/Thread End Devices & Routers
- Wearable & Battery-Powered Applications
- Industrial Wireless Monitoring
Package Includes:
- 1 x WAVGAT ESP32-H2-DevKitM-1 Board
- 2 x 20-Pin Male Headers (unsoldered version) or Pre-soldered Board (soldered version)
Downloads
PDF File
