VL53L0X V2 Laser Distance Sensor Module

📌 Product Overview

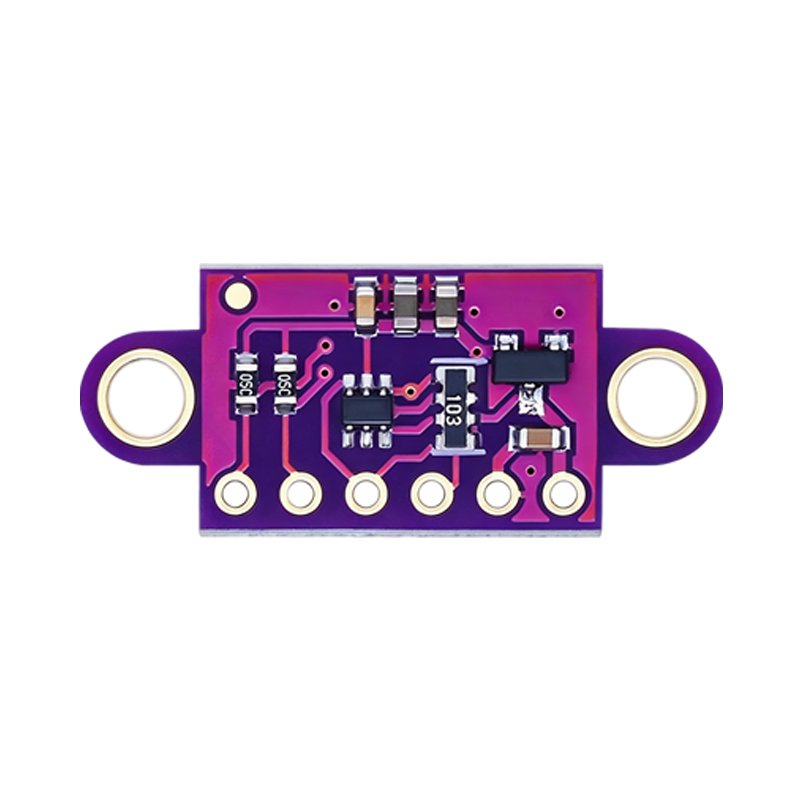

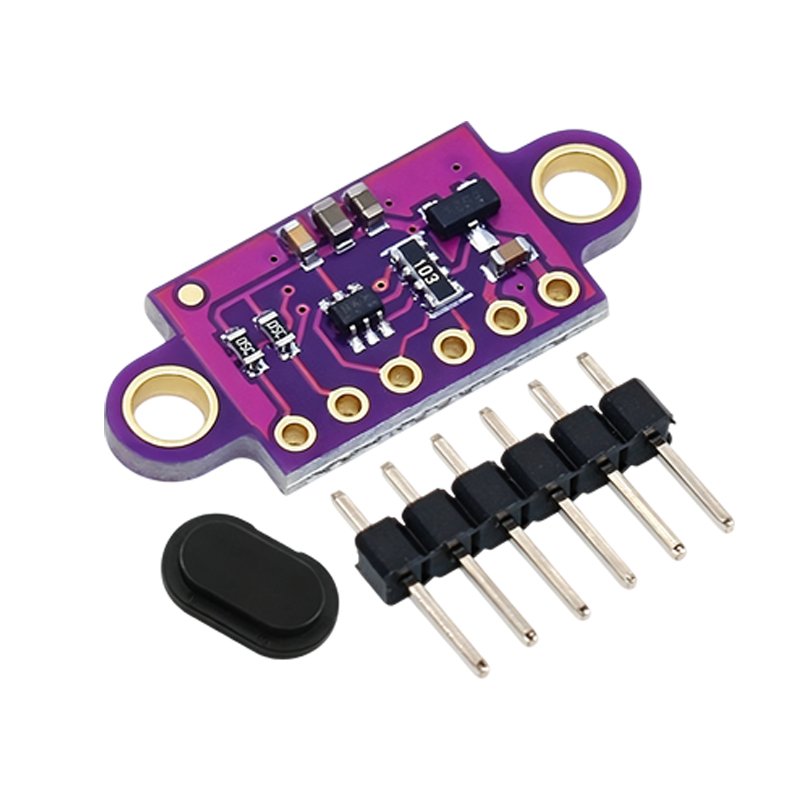

The VL53L0X time-of-flight distance measurement sensor is a new generation laser ranging module. The VL53L0X is a fully integrated sensor, equipped with embedded infrared, eye-safe laser, advanced filters, and an ultra-fast photon detection array, providing longer measurement distances, higher speed, and greater accuracy. The sensing capabilities of the VL53L0X can support a variety of functions, including gesture sensing or proximity detection for various innovative user interfaces, obstacle detection and anti-collision systems for robotic vacuum cleaners and service robots, sensing panels in home appliances, user presence detection or power switch monitoring in laptops, as well as drones and Internet of Things (IoT) products. Optical cover instructions: The optical cover used with VL53L0X V2 provides more accurate measurements while protecting the sensor, extending its service life. Customers can choose to purchase it optionally.

⚙ Core Technical Specifications

• Model: VL53L0X V2
• Operating Voltage: DC 3V ~ 5V
• Communication Method: IIC
• Maximum Absolute Measuring Distance: 2m
• Mounting Hole Spacing: 20mm
• Pin Function: XSHUTDOWN (reset pin) / GPIO1 (interrupt pin)
• Overall Dimension: 25mm*10.7mm, PCB body size 15.7mm
• Mounting Hole Diameter: Φ3mm
• Net Weight: 1g
• Working Temperature: -40℃ ~ +85℃

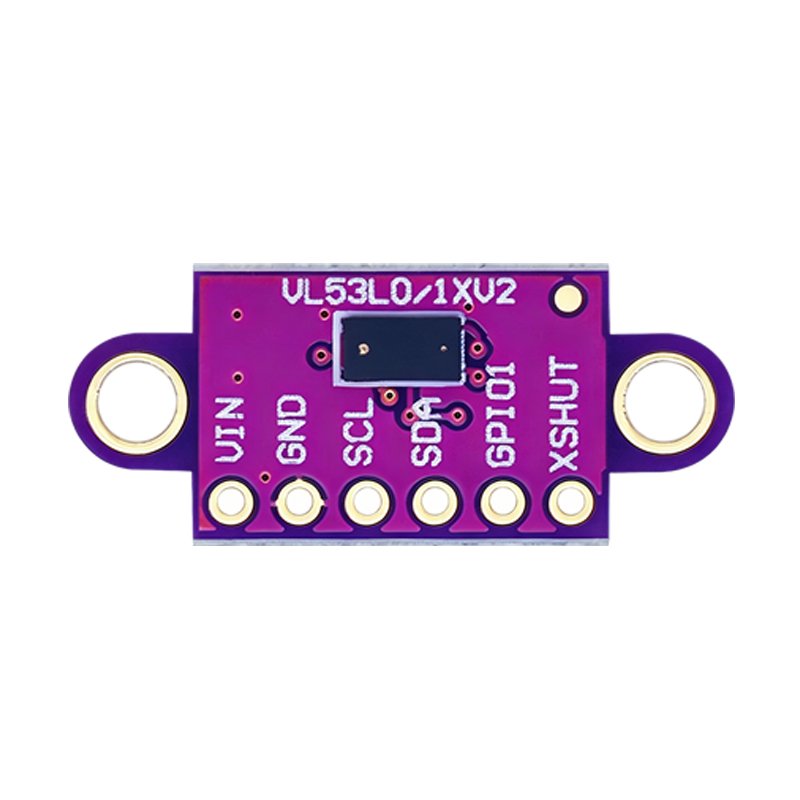

📍 6-Pin Pin Assignment Table

Pin No.	Pin Name	Function Description
①	VIN	Power supply input, DC 3V~5V
②	GND	Power ground reference pin
③	SCL	IIC clock signal pin
④	SDA	IIC data signal pin
⑤	GPIO1	Interrupt signal output pin
⑥	XSHUT	Sensor reset control pin

✨ Product Highlights

✅ Fully integrated ToF laser ranging chip, built-in eye-safe infrared laser transmitter ✅ Max 2m long-distance stable measurement, fast response & high ranging precision ✅ Standard IIC communication interface, compatible with Arduino, Raspberry Pi and mainstream controllers ✅ Equipped with reset and interrupt pins, convenient for program logic control ✅ Pre-reserved mounting holes with 20mm hole spacing, easy fixed installation ✅ Optional matching optical cover, dustproof and improve measurement stability ✅ Ultra-light 1g mini PCB design, compact size for embedded integration ✅ Wide industrial working temperature -40℃~+85℃, strong environmental adaptability

🛒 Application Scenarios

1. Intelligent Robots: Obstacle avoidance & anti-collision detection for sweeping robots, service robots
2. Gesture Interaction Equipment: Human body proximity induction, gesture sensing interactive panels
3. Household Appliances: Human presence detection for smart cabinets, air conditioners, washing machines
4. Notebook & Consumer Electronics: Human proximity detection, automatic screen wake/sleep control
5. UAV Equipment: Low-altitude obstacle ranging, ground height detection
6. IoT Monitoring Projects: Intelligent access control, automatic sensing alarm equipment
7. Maker DIY & Teaching Experiment: Electronic competition, school laboratory ranging experiment

⚠ Important Usage Notice

1. Avoid long-term strong light direct irradiation on the laser sensing window to prevent measurement deviation.
2. When using the optional optical cover, attach it flat to the sensor surface without offset.
3. IIC communication wiring should be short; use shielded wire for long-distance transmission to reduce signal interference.
4. Do not scratch or pollute the surface of the built-in laser sensing chip, which will affect ranging accuracy.
