BN‑180 BN‑220 BN‑880 GPS Module High Accuracy Receiver PPS Output For FPV Drone Flight Controller Arduino DIY Navigation

BN‑180 BN‑220 BN‑880 GPS Module High Accuracy Receiver PPS Output For FPV Drone Flight Controller Arduino DIY Navigation - Image 3

SKU N/A Category Motion & Position Sensors Tags arduino gps, bn‑180, bn‑220, bn‑880, flight controller gps, fpv drone gps, glonass receiver, gps module, gps receiver, high accuracy gps, mini gps, navigation sensor, positioning module, pps output, uart gps Brand: WAVGAT

BN‑180 BN‑220 BN‑880 GPS Module High Accuracy Receiver PPS Output For FPV Drone Flight Controller Arduino DIY Navigation

Name: BN‑180 BN‑220 BN‑880 GPS Module High Accuracy Receiver PPS Output For FPV Drone Flight Controller Arduino DIY Navigation
Brand: WAVGAT

Price :

$7.70 $11.00Price range: $7.70 through $11.00

Module Model

Clear

Multi‑mode GNSS GPS module with M8030‑KT chip, supports GPS GLONASS BDS GALILEO multi‑satellite positioning, TTL level NMEA‑0183 output, ideal for FPV drone, RC model and Arduino positioning project.

Description

BN‑180 BN‑220 BN‑880Q GPS GLONASS BDS Multi‑Mode GNSS Module

📌 Product Overview

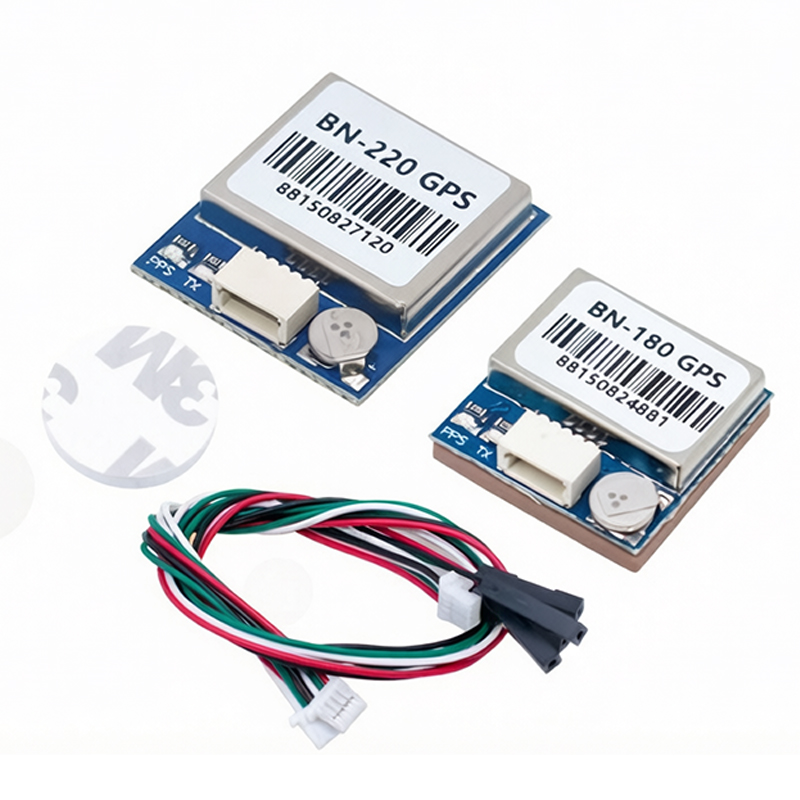

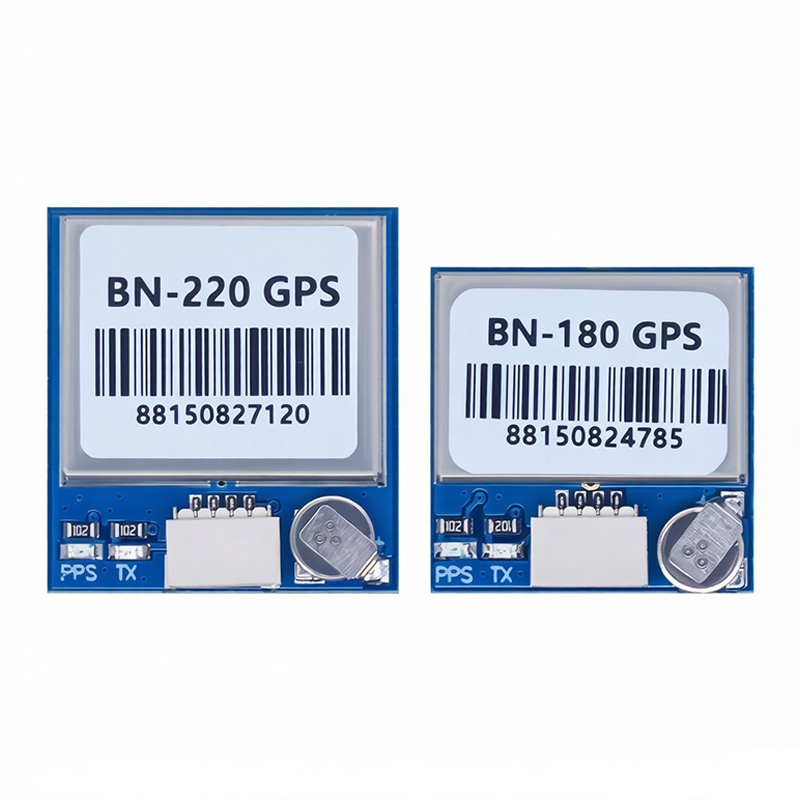

✅ The BN‑180, BN‑220 and BN‑880Q are high‑performance multi‑constellation GNSS positioning modules built on M8030‑KT chip. They support GPS, GLONASS, BDS, GALILEO, SBAS, QZSS multi‑satellite system combined positioning, delivering high‑accuracy location data with compact size and light weight. 📌 BN‑180: Ultra‑tiny integrated GNSS module, dimension 18mm×18mm×6mm, weight only 4.9g, no onboard FLASH. Default configuration: GPS+GLONASS dual‑mode, DC 3.6V‑5.5V power supply, TTL level, 9600 baud rate, 1Hz update rate, NMEA‑0183 protocol output. 📌 BN‑220: Compact GNSS module with built‑in 4M FLASH for parameter saving, dimension 22mm×20mm×6mm, weight 5.3g. Supports saving baud rate, update rate and protocol settings without data loss after power‑off. Default shipment: GPS+GLONASS dual‑mode, 5V power input, TTL level, 9600bps, 1Hz output, NMEA‑0183 protocol. It can be switched to GPS+BeiDou mode, please leave note before ordering. 📌 BN‑880Q: High‑performance GNSS module with larger antenna, better signal reception, compatible with same communication protocol and pin definition as BN‑180/BN‑220.

📋 Product Specifications

Item	Parameter
Chip	M8030‑KT
Supported Frequency	GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Search Channels	72 channels
Tracking Sensitivity	‑167dBm
Re‑acquisition Sensitivity	‑160dBm
Cold Start Sensitivity	‑148dBm
Hot Start Sensitivity	‑156dBm
Horizontal Position Accuracy	2.0 meter CEP 2D RMS (SBAS assisted, open sky)
Speed Accuracy	0.1m/s 95% (SA off)
Time Accuracy	1us
Cold Start Time	26s
Warm Start Time	25s
Hot Start Time	1s
Baud Rate	4800bps ~ 921600bps, default 9600bps
Output Level	TTL
Output Protocol	NMEA‑0183
NMEA Sentences	RMC,VTG,GGA,GSA,GSV,GLL
Update Rate	1Hz‑10Hz, default 1Hz
Max Altitude	<50000m
Max Speed	<515m/s
Max Acceleration	<4g
Supply Voltage	DC 3.6V‑5.5V, typical 5.0V
Working Current	Normal 50mA@5.0V
Operating Temperature	-40℃ ~ +85℃
Storage Temperature	-40℃ ~ +105℃

🔌 Pin Definition

NO.	Name	I/O	Description
1	GND	G	Ground
2	TX	O	UART‑TX, GPS data output, TTL level
3	RX	I	UART‑RX, GPS data input, TTL level
4	VCC	I	Power input DC 3.6V‑5.5V, recommended 5V

💡 Indicator Description

Blue TX‑LED: Flash when powered on, indicates serial data output.
Red PPS‑LED: Keep off before 3D positioning; starts flashing after successful 3D positioning.

🛠 Application Scenarios

✔ FPV drone flight control positioning ✔ RC model vehicle / ship navigation ✔ Arduino / STM32 single‑chip project ✔ Vehicle tracking device ✔ Outdoor positioning recorder ✔ Robot navigation system

⚠ Important Usage Notice

Kind reminder: If there are version differences or images not been updated, please refer to the actual product.

Downloads

PDF File
