VEML6035 Ambient Light Sensor Module 16-bit High Sensitivity I2C Interface Brightness Detection Board For Arduino Raspberry Pi Light Intensity Measurement

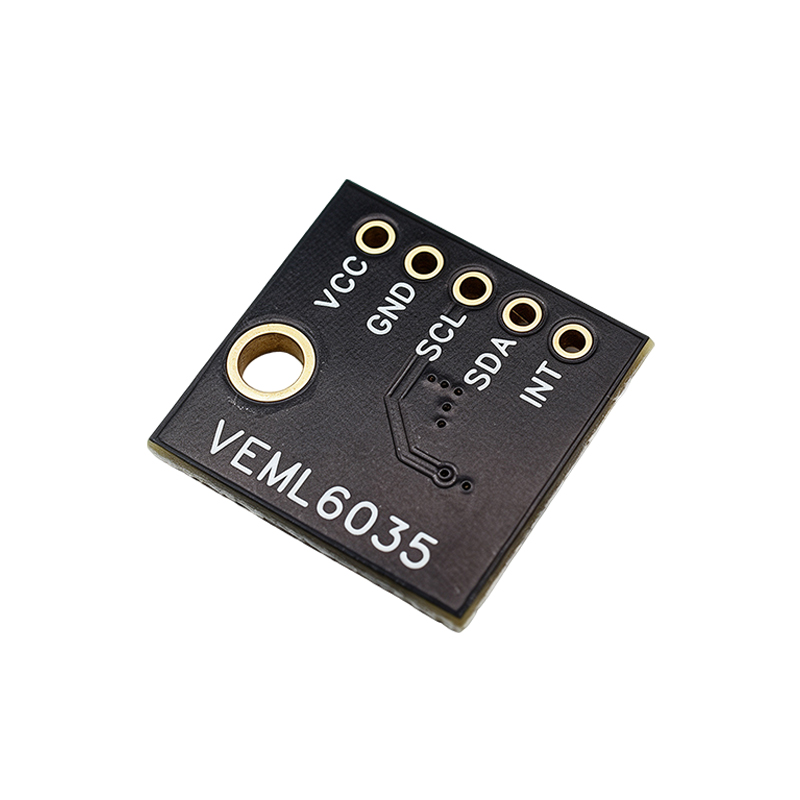

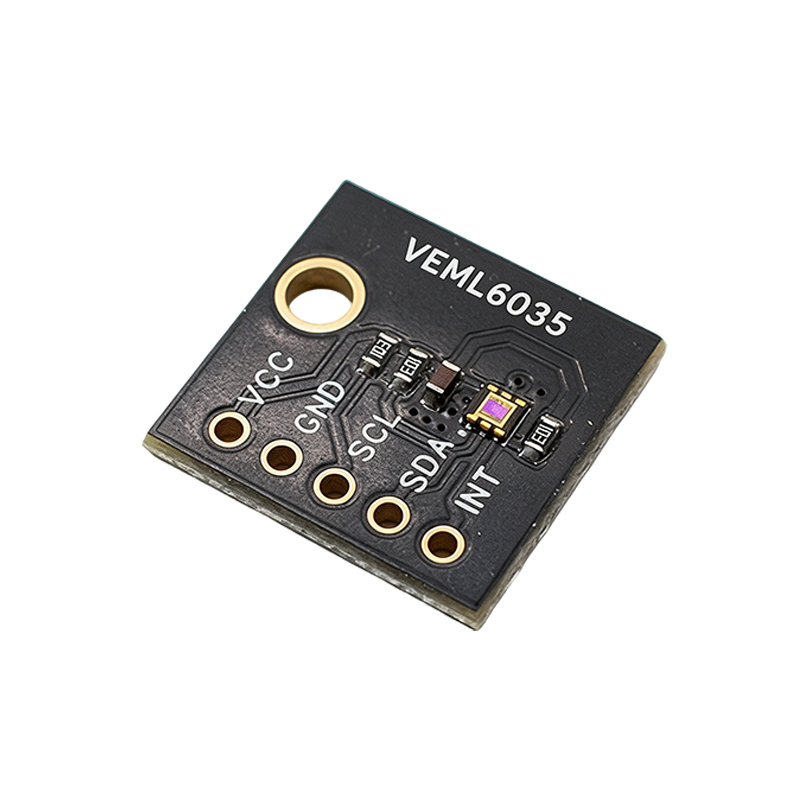

VEML6035 Ambient Light Sensor Module

📌 Product Overview VEML6035 is a 16-bit low-power, high-sensitivity CMOS ambient light sensor module. It communicates via I2C interface with simple 12-bit commands. Built-in photodiode, amplifier and analog/digital circuits are integrated in a single chip. It features active interrupt function, which triggers an alert when light value exceeds the threshold window to reduce the load of main controller. It has excellent temperature compensation and stable output under temperature changes, no external RC low-pass filter is required for refresh rate setting. It supports programmable shutdown mode, the current can drop to 0.5 μA in shutdown state. Widely used for brightness auto-adjustment of screen, lighting control, industrial light intensity detection and DIY embedded projects. ✨ Core Features

• 16-bit high resolution, high sensitivity ambient light detection
• Built-in temperature compensation, stable output under temperature variation
• Active interrupt pin, threshold trigger function to reduce MCU burden
• Low power consumption: average active power about 300 μW, shutdown current 0.5μA
• Built-in I2C pull-up resistors, no extra pull-up resistors needed
• Supports 100Hz /120Hz flicker noise suppression
• I2C communication up to 400kHz, fixed I2C address 0x29
• Compact PCB design, easy to mount and integrate

📋 Product Parameters

Item	Specification
Main Chip	VEML6035
Communication Interface	I2C (up to 400KHz)
Operating Voltage	1.7~3.6V, recommended 3.3V
Resolution	16-bit
Flicker Suppression	100Hz,120Hz
Lens Transmittance	0.0004 lux/bit
Module Dimension	16 X 15.5 mm
Module Net Weight	1g, with pin header:1.2g
Working Temperature	-40℃ ~ +85℃
Brand	LIZAO
Type	Ambient Light Sensor Module
I2C Address	0x29

📐 Dimension Info

• Module size: 16 X 15.5 mm, Net weight:1g
• With pin header: 1.2g

⚠ Important Notes

• Recommended supply voltage is 3.3V, do not exceed 3.6V.
• The I2C bus has onboard pull-up resistors, no additional resistors required.
• The INT pin is the interrupt output pin, used for light threshold trigger.
• PCB version update may lead to minor appearance difference, please refer to real product.
• Avoid strong direct sunlight shining on the sensor chip for long time.

🛠 Application Scenarios

• Automatic brightness adjustment for display screens
• Intelligent lighting control system
• Industrial ambient light intensity monitoring
• Light intensity detection for smart home devices
• Arduino, STM32, Raspberry Pi secondary development & electronic DIY
