Pro Mini MEGA328P 5V/16M Improved Version Microcontroller Board (Arduino Compatible)

Product Overview

The WAVGAT Pro Mini Improved Version is a compact, high-performance microcontroller board based on the ATmega328P. Designed for minimalist electronics projects where space is at a premium, this 5V/16MHz variant offers the full power of the Arduino Uno in a tiny footprint. With its improved PCB layout and robust components, it’s the perfect choice for professional engineers and DIY enthusiasts alike. Model: WAVGAT Pro Mini 5V Improved SKU: 17S01

Technical Specifications

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Input Voltage (RAW): 5V – 12V
• Clock Speed: 16 MHz
• Digital I/O Pins: 14 (6 provide PWM output)
• Analog Input Pins: 8 (A0 – A7)
• Interfaces: UART, SPI, I2C
• Dimensions: 33mm x 18mm x 3mm
• Compatible Platforms: Arduino IDE, PlatformIO

Typical Application Scenarios

• Portable measurement instruments
• Wearable technology and IoT nodes
• Small-scale robotics and drone control
• Custom automotive displays and sensors
• Educational STEM kits and prototyping

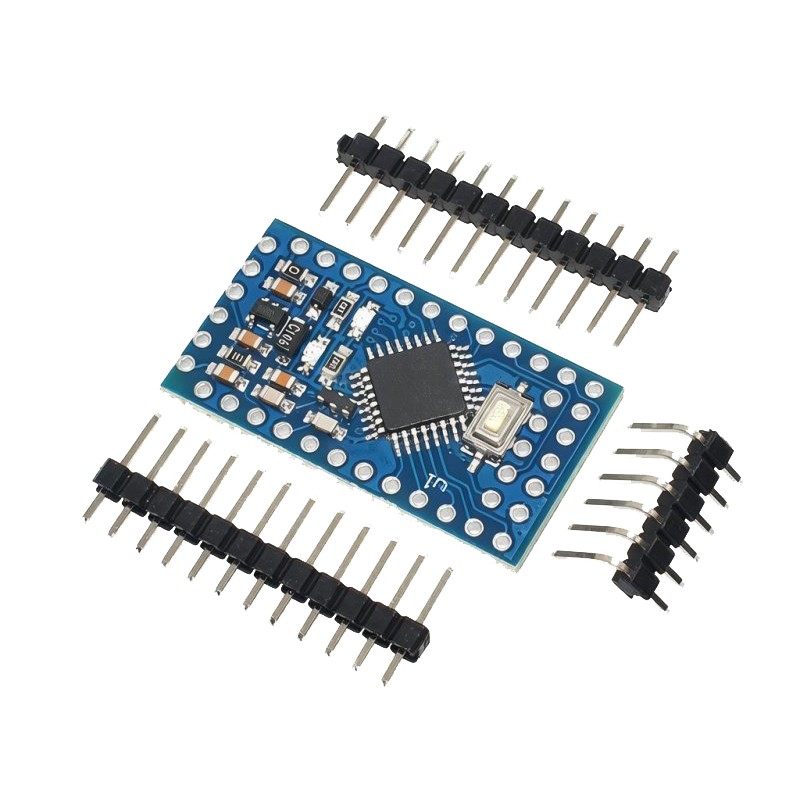

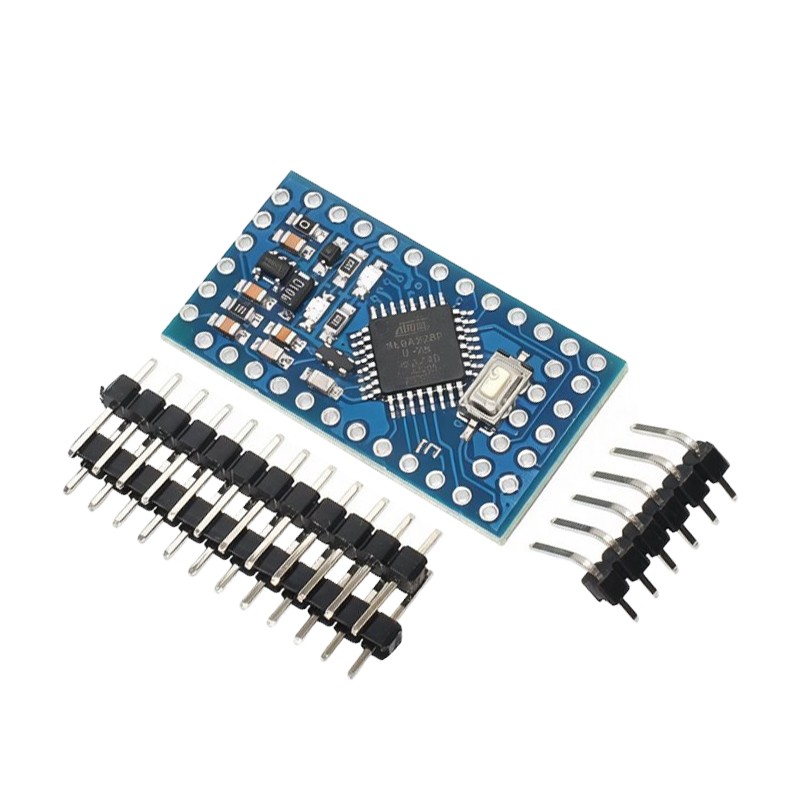

Packing List

• 1 x WAVGAT Pro Mini MEGA328P 5V/16MHz Board
• 3 x Pin Headers (Straight and Right-angle, un-soldered)

Comparison with Standard Pro Mini

Unlike standard market versions, the WAVGAT Improved Version features a high-stability voltage regulator and optimized trace routing to reduce electromagnetic interference (EMI). It maintains 100% pin compatibility with the original SparkFun layout but offers better heat dissipation and signal integrity for industrial-grade applications.

Frequently Asked Questions (FAQ)

1. How do I program this board? Since it lacks a USB port, you need an external USB-to-TTL adapter (like FT232RL or CP2102) connected to the DTR, RXD, TXD, VCC, and GND pins.
2. Can I power it with a 9V battery? Yes, connect the positive terminal to the RAW pin and negative to GND. Do not use the VCC pin for anything higher than 5V.
3. Is it compatible with Arduino Uno code? Absolutely. In the Arduino IDE, select “Arduino Pro or Pro Mini” and processor “ATmega328P (5V, 16 MHz)”.
4. What is the difference between VCC and RAW? RAW is the input for the onboard regulator (5-12V), while VCC is the regulated 5V output/input.
5. Are the headers pre-soldered? No, they come loose to allow for flexible mounting options (like soldering wires directly or using custom headers).

Technical Resources

• ATmega328P Datasheet (PDF)
• High-Resolution Pinout Diagram
