GY‑521 MPU‑6050 3‑Axis Accelerometer Gyroscope Sensor Module Optional Soldered Pin Header For Arduino ESP32 STM32 Motion Attitude Detection DIY Project

SKU N/A Category IMU / Accelerometer / Gyroscope Tags 3‑axis sensor, 6dof sensor, accelerometer gyroscope, arduino sensor, Attitude Sensor, GY‑521, I2C sensor, imu sensor module, motion sensor, MPU‑6050 Brand: WAVGAT

GY‑521 MPU‑6050 3‑Axis Accelerometer Gyroscope Sensor Module Optional Soldered Pin Header For Arduino ESP32 STM32 Motion Attitude Detection DIY Project

Name: GY‑521 MPU‑6050 3‑Axis Accelerometer Gyroscope Sensor Module Optional Soldered Pin Header For Arduino ESP32 STM32 Motion Attitude Detection DIY Project
Brand: WAVGAT

Price :

$0.72 $1.53Price range: $0.72 through $1.53

Module Version

Clear

GY‑521 MPU‑6050 6‑axis inertial sensor module integrates 3‑axis accelerometer and 3‑axis gyroscope, with built‑in DMP motion processing engine, I2C communication, widely used for attitude detection, gesture recognition, VR‑AR, DIY Arduino projects.

Description

GY‑521 MPU‑6050 6‑Axis Accelerometer Gyroscope Sensor Module

📌 Product Overview

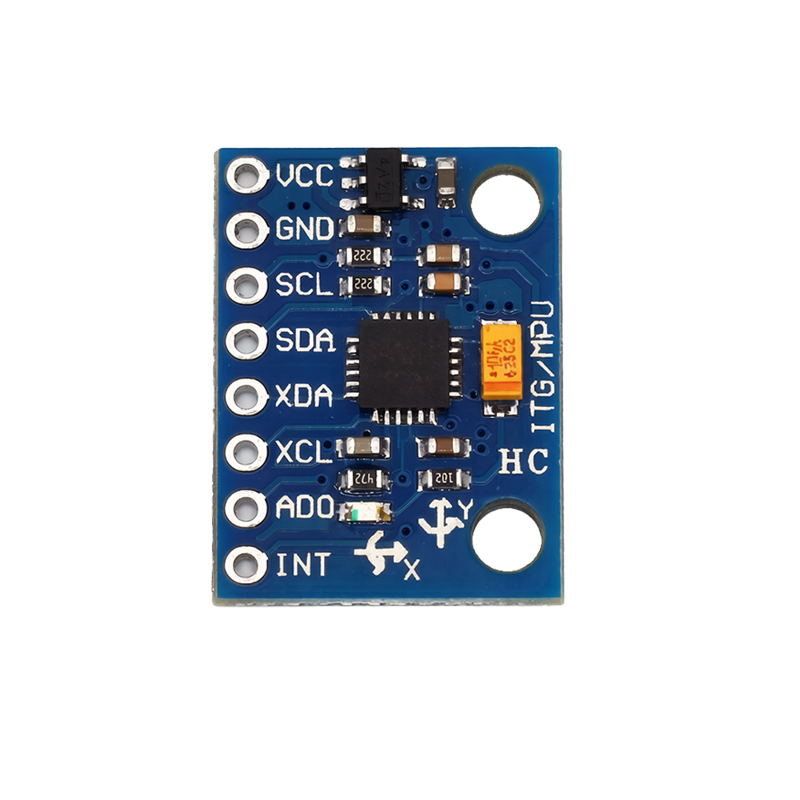

The GY‑521 module is built with MPU‑6050 chip, which is a classic integrated 6‑axis motion processing component. It integrates a 3‑axis gyroscope and a 3‑axis accelerometer, effectively solves the axis misalignment problem when using separate gyroscope and accelerometer components, and greatly saves PCB installation space. This module comes with built‑in Digital Motion Processor (DMP) hardware acceleration engine. Via secondary I2C bus, it can connect external magnetometer or other sensors to realize 9‑axis data fusion, output complete fusion data through main I2C interface. It supports InvenSense motion processing library, which greatly reduces host MCU computing pressure and provides convenient API for secondary development.

⚙️ Main Parameters

Item	Parameter
Chip Model	MPU‑6050
Power Supply	DC 3V‑5V (On‑board LDO regulator)
Communication Interface	Standard I2C
Gyroscope Measuring Range	±250 / ±500 / ±1000 / ±2000 °/s
Accelerometer Measuring Range	±2g / ±4g / ±8g / ±16g
Built‑in Resource	16‑bit AD converter, built‑in temperature sensor
Pin Pitch	2.54mm
Working Temperature	-40℃ ~ +85℃

✨ Core Features

✅ Output 6‑axis / 9‑axis fusion data in rotation matrix, quaternion and Euler angle format ✅ 3‑axis gyroscope, sensitivity up to 131 LSBs/(°/sec), multiple optional measuring ranges ✅ Programmable 3‑axis accelerometer, multiple adjustable full‑scale range ✅ DMP hardware engine offloads complex attitude solving, sensor synchronization work ✅ Supports Android, Linux, Windows motion processing database ✅ Built‑in magnetometer calibration algorithm, no extra manual calibration required ✅ Rich programmable interrupt functions: free‑fall detection, tap detection, shake detection, posture recognition etc. ✅ I2C high‑speed transmission up to 400kHz ✅ 10000g anti‑shock capacity ✅ ROHS compliant

🛠 Pin Definition

📍 Application Scenarios

▪ Motion sensing game equipment ▪ VR / AR augmented reality equipment ▪ Electronic image stabilization EIS, optical image stabilization OIS ▪ Pedestrian navigation equipment ▪ Gesture recognition interactive equipment ▪ 3D remote controller, portable motion detecting project

⚠ Important Usage Notice

Kind reminder: If there are version differences or images not been updated, please refer to the actual product. Our products only provide descriptive introductions or electronic documentation. Technical consultation is not provided. Beginners please purchase with caution. Thank you for your understanding.
