Makerbot MK8 Pointed Brass Nozzle Multi Size 0.2-1.0mm 3D Printer Extruder Tip

Name: Makerbot MK8 Pointed Brass Nozzle Multi Size 0.2-1.0mm 3D Printer Extruder Tip
Brand: WAVGAT

Price :

$0.05 $0.10Price range: $0.05 through $0.10

Filament Diameter

Nozzle Size

Clear

MK8 Brass 3D Printer Nozzle, 0.2/0.3/0.4/0.5/0.6/0.8/1.0mm Sizes, M6 Thread Extruder Print Head for 1.75mm Filament Makerbot Ender 3 CR10

Description

Product Overview

MK8 brass 3D printer nozzle is a standard replacement print head compatible with mainstream FDM 3D printers using 1.75mm filament. Made of high-purity brass with precision CNC machining, it features smooth inner bore, stable heat conduction and anti-clogging performance. Multiple aperture sizes available to meet fine detail printing and fast mass printing demands, universal M6 thread fits Ender-3, CR-10, Makerbot, Prusa and most MK8 extruder machines, ideal spare parts for daily printer maintenance and printing scene switching.

Core Product Advantages

High Purity Brass Material, Excellent Thermal Conductivity
Adopts solid brass raw material, fast and uniform heat transfer, ensures filament melts fully and evenly; brass has good wear resistance, long service life under long-term high-temperature printing.
Precision CNC Machining, Ultra-Smooth Inner Channel
Micro precision drilling & polishing inner hole, no burrs inside, greatly reduce filament friction, effectively avoid filament clogging, smooth extrusion without drawing lines or blobbing.
Complete Size Options for All Printing Needs

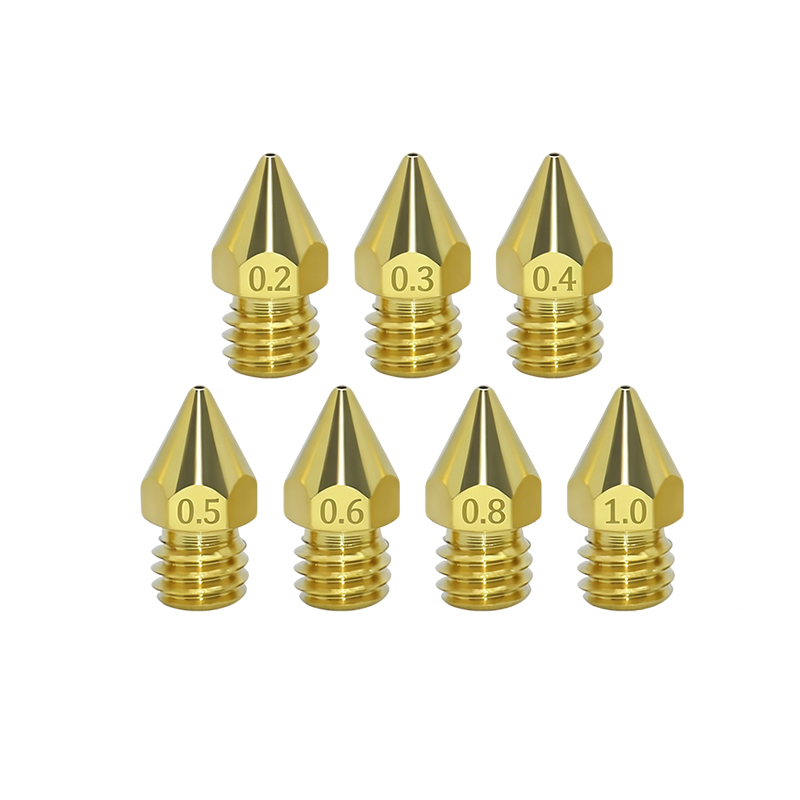

7 standard aperture sizes to choose:

0.2/0.3mm: Ultra-fine detail printing, high-precision miniature models, art crafts
0.4mm: Universal standard size, balance of detail & printing speed, daily general use
0.5/0.6mm: Medium flow, balance speed and surface finish
0.8/1.0mm: Large aperture high flow, fast printing large models, thick layer rapid forming

Universal M6 Standard Thread, Wide Compatibility
Standard M6 external thread, perfectly match all MK8 extruder series 3D printers, compatible with 1.75mm PLA/ABS/PETG filament; fits Ender 3/V2/Pro, CR10, Makerbot, Anet A8, etc.
Clear Laser Size Marking, Easy Distinction

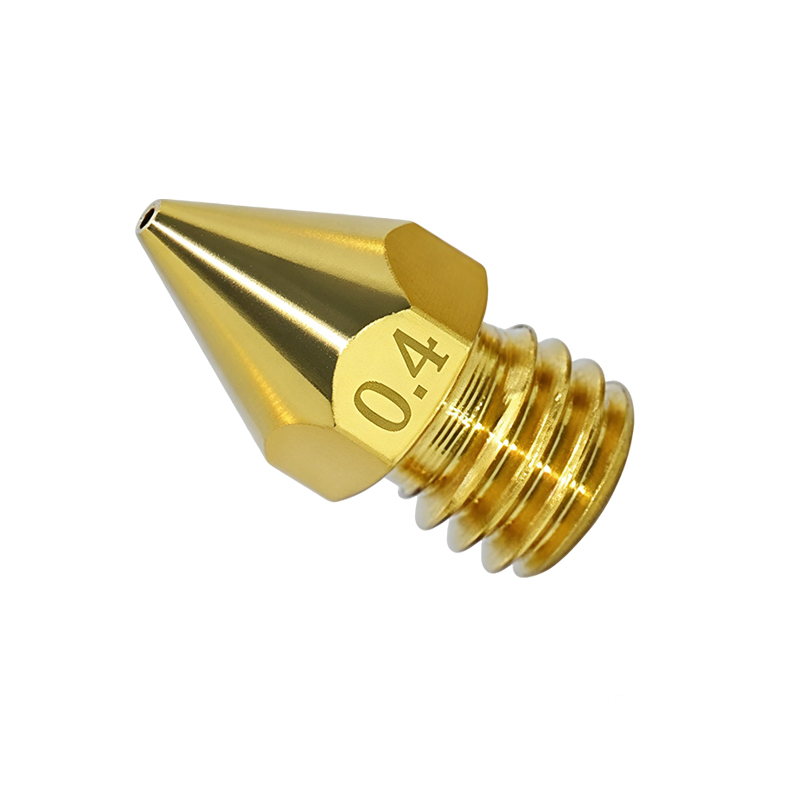

Each nozzle laser engraved with aperture size on hexagonal positioning surface, clear and wear-resistant, quickly identify size during replacement without confusion.
Standard Industrial Dimension, Easy Installation
Unified dimensional specification: total length 13mm, hex width 8mm, weight only 2g, standard hexagonal flat for wrench clamping, easy disassembly and replacement without special tools.

Full Technical Specifications

Parameter	Details
Product Model	MK8 3D Printer Brass Nozzle
Material	High-purity brass
Thread Spec	M6 external thread
Compatible Filament	1.75mm diameter filament (PLA, ABS, PETG, TPU)
Optional Aperture Sizes	0.2mm / 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.8mm / 1.0mm
Overall Dimension	13mm total length, hexagon width 8mm
Single Nozzle Weight	2g
Applicable Printer	Ender3, CR10, Makerbot, Prusa and all MK8 extruder FDM printers

Installation & Usage Guide

Preheat the printer hot end to 200~240℃ according to filament type.
Use a small wrench to clamp the hexagonal flat of the old nozzle, unscrew and remove it.
Screw the new MK8 nozzle tightly by hand first, then use wrench to lock properly (do not over-tighten to avoid thread damage).
Load filament, adjust printing parameters matching nozzle aperture, start printing test.
Cleaning Tip: After long-time printing, heat the nozzle and use cleaning wire to clear residual carbon to prevent blockage.

Application Scenarios

Daily replacement spare parts for consumer FDM 3D printers
Hobbyist DIY model making, miniature high-detail art printing
Small batch rapid prototyping, large-volume fast printing
3D printer maintenance store accessory supply
Education lab, school 3D printing experiment equipment matching

Important Usage Notes

Only support 1.75mm filament, not compatible with 3mm thick filament.
Do not over-tighten the nozzle during installation, excessive force will crack the heating block or damage threads.
Brass nozzle is not wear-resistant to abrasive filaments (carbon fiber, wood-filled), use hardened steel nozzle for abrasive materials.
Long-term high-temperature printing will produce carbon accumulation, regular cleaning can extend service life.
Minor color difference of brass surface among batches will not affect printing performance.
