Serial SHT30/SHT31/SHT40 Temperature Humidity Sensor Module, TTL UART Serial Output, 3.3V-5V Industrial High Precision Temp Humidity Detector for Arduino STM32

Description

Product Overview

Serial SHT series temperature & humidity sensor module carries Swiss Sensirion SHT30 / SHT31 / SHT40 industrial-grade sensing chip, with onboard serial conversion circuit, directly output TTL UART ASCII data without complex I2C programming. Default auto-report temperature and humidity data every 1 second, supports auto mode & manual read mode switch via serial commands. Wide operating voltage 3.3V~5V, ultra-small 11×17mm PCB, 2.54mm pitch 4PIN bent pin header, compatible with all mainstream 3.3V/5V microcontrollers such as Arduino, STM32, 51 MCU, widely used in environmental monitoring, agricultural planting, smart home, industrial control.

Core Product Features

Three Chip Options for Different Precision Demands

SHT30: Entry level, ±3%RH humidity accuracy, ±0.3℃ temperature accuracy, cost-effective for ordinary DIY projects
SHT31: Standard industrial grade, ±2%RH humidity accuracy, built-in heater anti-condensation, long-term stable performance, full 0~100%RH detection range
SHT40: New generation high-precision chip, ±1.8%RH humidity, ±0.2℃ temperature, ultra-low power consumption, anti-pollution packaging, tiny chip size for compact equipment

TTL Serial UART Direct Output, Easy Secondary Development
Onboard serial conversion chip, no complicated I2C driver development; default baud rate 9600, 8 data bits, 1 stop bit, no parity bit. Output fixed-format ASCII string for MCU simple parsing.
Two Working Modes, Flexible Data Reading

Auto mode (power-on default): Automatically upload temperature & humidity value once per second
Manual mode: Stop auto upload, send Read command to get single data on demand

Wide Voltage Compatibility & Ultra-low Power Consumption
SHT30/SHT31 support 2.15V~5.5V, SHT40 supports 1.08V~3.6V; module works at 3.3V~5V, operating current <10mA, suitable for battery-powered portable devices.
Full Wide Measurement Range & Stable Response
Temperature detection range: -40℃ ~ 125℃; SHT31/SHT40 support full 0~100%RH humidity, fast response speed, small temperature drift, industrial long-term stable measurement.
Mini Compact PCB & Convenient Wiring

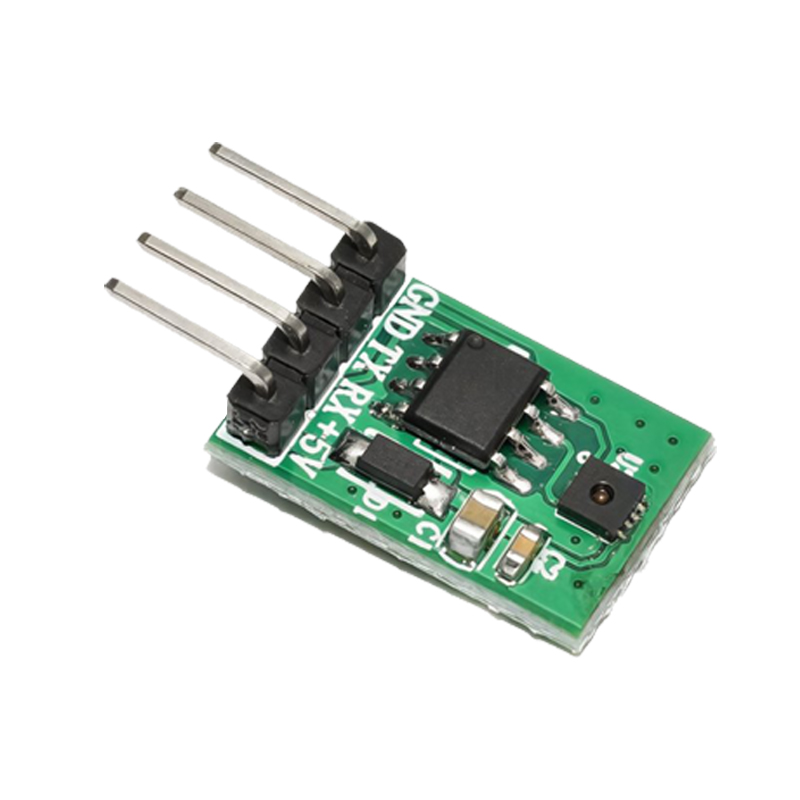

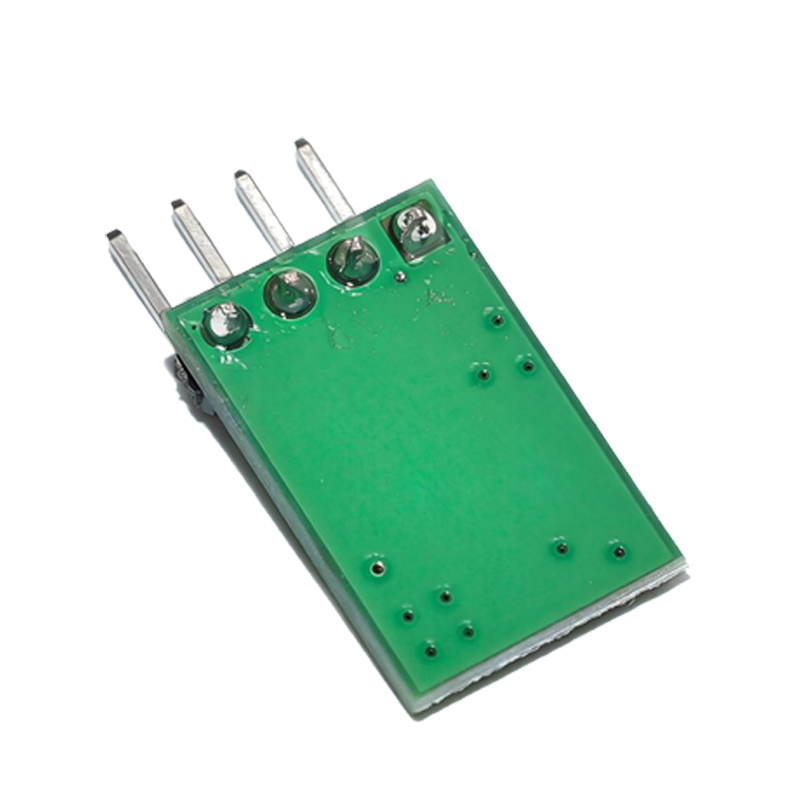

PCB size only 11mm×17mm, 4PIN bent pin header (straight pin optional), pin definition: GND, TXD, RXD, +3.3~5V, plug-and-play after wiring with MCU serial port.

Full Technical Specifications

Parameter	Details
Optional Chip	SHT30 / SHT31 / SHT40
Communication Interface	TTL UART serial port
Default Baud Rate	9600 (customizable baud rate)
Serial Protocol	8 data bits, 1 stop bit, no parity, ASCII output
Operating Voltage	SHT30/SHT31: 3.3V~5V; SHT40: 3.3V only
Operating Current	<10mA
Reporting Frequency	Default 1Hz (customizable)
Temperature Range	-40℃ ~ 125℃
Temperature Accuracy	SHT30/SHT31: ±0.3℃; SHT40: ±0.2℃
Humidity Range	SHT30:10~90%RH; SHT31/SHT40:0~100%RH
Humidity Accuracy	SHT30:±3%RH; SHT31:±2%RH; SHT40:±1.8%RH
PCB Dimension	11mm × 17mm
Pin Spacing	2.54mm 4PIN bent pin header

Serial Command Communication Protocol

All commands end with \r\n, module feedback OK\r\n after receiving valid commands:

Auto mode: Send Auto\r\n → Restore automatic 1s data upload
Manual mode: Send Hand\r\n → Stop automatic upload, switch to manual reading
Manual single read: Send Read\r\n → Return data format R:XX.XRH XX.XC
Example: R:070.0RH 032.4C = Humidity 70.0%RH, Temperature 32.4℃

Pin Definition

GND: Module power ground, connect MCU GND
TXD: Module serial transmit pin, connect MCU RXD
RXD: Module serial receive pin, connect MCU TXD
+3.3~5V: Power input positive pole

Application Scenarios

Smart home temperature & humidity monitoring, indoor environment detector
Agricultural greenhouse, breeding farm environmental collection
Industrial workshop, cabinet constant temperature and humidity monitoring
Student electronic experiment, single-chip microcomputer DIY weather station
Portable battery-powered temperature and humidity data logger

Important Usage Notes

Distinguish chip version before purchase, SHT30 humidity cannot measure below 10%RH, select SHT31/SHT40 for full-range humidity detection.
SHT40 module only supports 3.3V power supply, cannot connect 5V power to avoid burning the chip.
Keep the sensor chip away from water vapor, corrosive gas for long-term stable measurement; SHT31 built-in heater can eliminate condensation.
Do not short-circuit power pins, reverse power connection will damage the module sensing chip.
Batch PCB silkscreen, capacitor color may have slight differences, which do not affect measurement performance.
