Side-press High Power Flashlight Driver Board 3-4.2V 1500-2200mA 3 Level Dimming LED Constant Current Driver Module With Type-C Port

Side-press High-power Flashlight Driver Board

📌 Product Overview The side-press high-power flashlight driver board is a round constant current drive PCB specially designed for high-power LED flashlights. It supports 3~4.2V input voltage, powered by single 18650 or 26650 lithium battery. The output current ranges from 1500mA to 2200mA, with three-level dimming function to adjust brightness. This circular board adopts compact layout, built-in Type-C charging port, lightweight design, easy to install inside flashlight housing. It is compatible with Cree XMLT6, U2, U3, XML2, XPL, XHP and other 10W high-power LED beads, widely used for DIY flashlight modification and flashlight maintenance replacement. ✨ Core Features

1. Side press control design, three-level brightness dimming adjustment.
2. Input voltage: 3~4.2V, suitable for single 18650 /26650 lithium battery.
3. Constant current output: 1500~2200mA, stable drive for high power LED.
4. Onboard Type-C charging interface, convenient battery charging.
5. Small circular PCB, diameter 26.5mm, net weight only 2.2g, easy assembly.
6. Support Cree XMLT6, U2, U3, XML2, XPL, XHP and other 10W LEDs.

📋 Product Parameters

Item	Spec
Input Voltage	3~4.2V
Output Current	1500~2200mA
Dimming Gear	Three-level dimming
Compatible LED	Cree XMLT6 U2 U3 XML2 XPL XHP and other 10W LEDs
Dimension	26.5 X 26.5 X 1.6mm
Net Weight	2.2g

📐 Dimension Info

• Board size: 26.5X26.5mm, Net weight:2.2g

⚠ Important Notes

1. This driver board is only suitable for matched high-power LED beads, mismatched bulbs may be burned out.
2. Please check LED model before installation, contact customer service if compatibility is unclear.
3. Input power shall not exceed 4.2V to avoid damaging the circuit board.

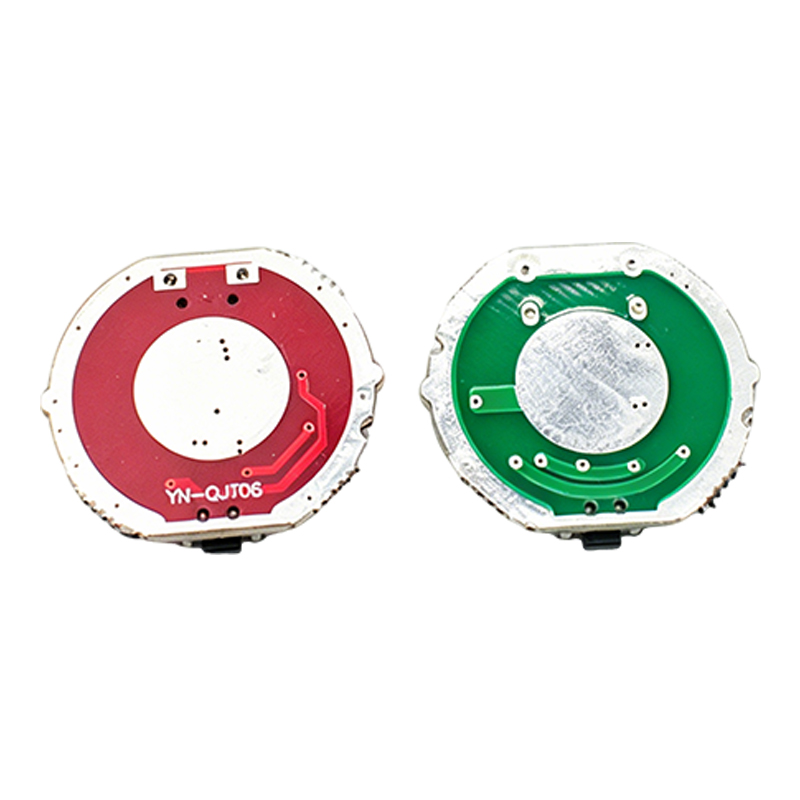

4. Red and green PCB versions are shipped randomly, both have same performance.

🛠 Application Scenarios Flashlight DIY modification, old flashlight repair replacement, portable high-power torch driver, outdoor lighting equipment renovation.
