SIM800C GPRS Module USB Serial Port GSM GPRS Wireless Communication Module With Antenna Support TTS For Arduino IoT DIY Development Project

SKU N/A Category RF Modules Tags arduino communication module, gprs module, gsm module, iot module, rf module, serial gprs module, sim800c, tts voice, usb gprs, wireless communication, with antenna Brand: WAVGAT

SIM800C GPRS Module USB Serial Port GSM GPRS Wireless Communication Module With Antenna Support TTS For Arduino IoT DIY Development Project

Name: SIM800C GPRS Module USB Serial Port GSM GPRS Wireless Communication Module With Antenna Support TTS For Arduino IoT DIY Development Project
Brand: WAVGAT

Price :

$7.34 $28.99Price range: $7.34 through $28.99

Module Version

Clear

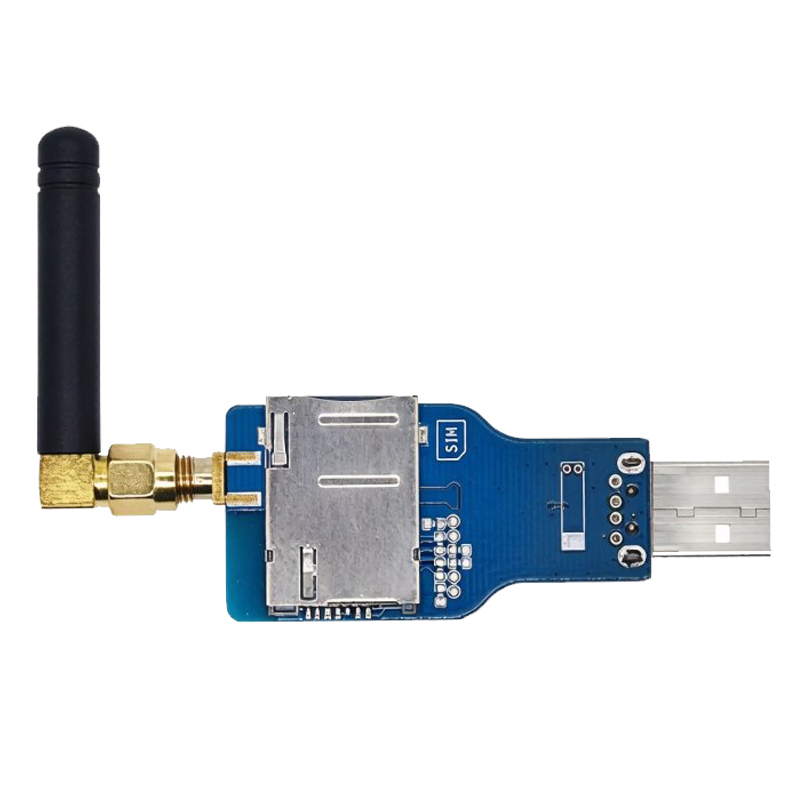

USB SIM800C GSM GPRS serial module with antenna, quad‑band 850/900/1800/1900MHz, supports SMS, voice call and GPRS data transmission, plug‑and‑play USB interface for remote monitoring and embedded wireless project.

Description

USB SIM800C GPRS GSM Serial Module

📌 Product Overview

USB to GSM SIM800C is quad‑band GSM/GPRS module with stable performance, compact structure and high cost‑performance. Built‑in USB‑to‑serial chip, you can directly plug into computer USB port for quick debugging. The SIM800C supports GSM/GPRS 850/900/1800/1900MHz frequency bands for global usage. It supports voice call, SMS sending & receiving and low‑power data transmission, perfect for compact embedded product development projects.

⚙ Main Technical Parameters

Item	Parameter
Chip Model	SIM800C
Frequency Band	GSM/GPRS 850/900/1800/1900MHz Quad‑band
Interface	Standard USB‑A
SIM Card Slot	Anti‑static self‑eject slot, standard size SIM card
Supported Operator	China Mobile, China Unicom; Not support China Telecom
Module Dimension	53.52717.5mm
Module Weight	17.3g

✨ Core Features

✅ Anti‑static self‑eject SIM tray, easy for SIM card installation and removal ✅ Integrated USB‑to‑serial chip, plug‑and‑play for PC debugging ✅ Quad‑band global GSM/GPRS network support ✅ Comes with SMA antenna for stable signal reception ✅ Support standard AT command control

🛠 Main Functions

• 📩 SMS Send & Receive: Matching management software supports send, receive and read SMS messages. • 📞 Phone Call Function: Realize dial‑out by simple AT command such as ATD10086; • 📶 GPRS Data Transmission: Transfer small‑volume industrial data, apply for remote meter reading, weather data monitoring. • 📤 Bluetooth Data Transmission (High‑end version): IEEE802.15 standard 2.4GHz band, realize file & data exchange with other bluetooth devices. • 🔊 TTS Voice Synthesis (High‑end version): Convert input text into speech audio output during calling process.

🚩 Application Scenarios

• Remote data acquisition & monitoring • SMS alarm notification system • Industrial remote meter reading • Short message interaction equipment • Embedded wireless communication project development

⚠ Important Usage Notice

Kind reminder: If there are version differences or images not been updated, please refer to the actual product.
