TMC2209 Stepper Motor Driver Module With Heat Sink Silent Step Driver UART Mode For 3D Printer SKR Motherboard CNC Stepper Motor Control Project

TMC2208 / TMC2209 / ATD5833 Stepper Motor Driver Module

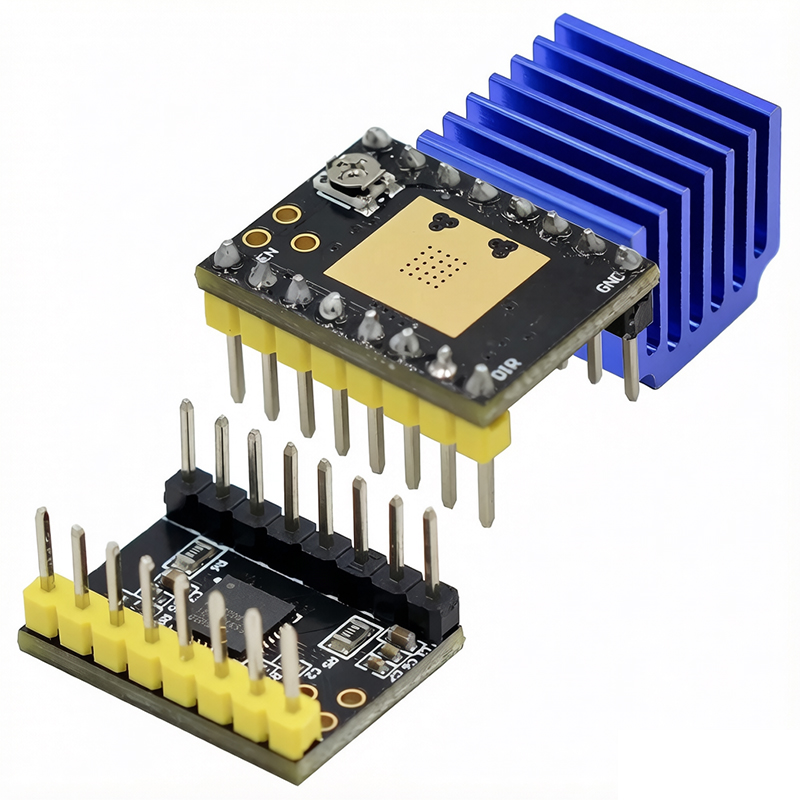

📌 Product Overview This stepper motor driver module includes three optional versions: TMC2208, TMC2209 and ATD5833. It is a high-performance silent stepping motor driver specially designed for 3D printers. It supports STEP/DIR and UART dual configuration modes, with up to 256 microstep subdivision. Adopting dynamic chopping technology, it greatly reduces motor running noise and delivers smoother operation waveform. The module comes with a matched blue aluminum heatsink for heat dissipation. Compact and lightweight, it is widely used to drive 2-phase stepper motors for 3D printing equipment and CNC motion control projects. ✨ Core Features

• Ultra low noise design, greatly reduce the vibration and noise of stepper motor during operation.
• 256 microstep subdivision, realize ultra-smooth motor rotation and improve printing precision.
• Dual control interface: support STEP/DIR hardware mode and UART serial configuration mode.
• Equipped with aluminum alloy heatsink to ensure stable operation under continuous load.
• Multiple specifications optional: TMC2208, TMC2209, ATD5833 for different current demands.
• Simple pin layout, easy to install and replace for 3D printer mainboards.

📋 Product Parameters

Item	TMC2208	TMC2209	ATD5833
Max Output Current	1.4A	2A	2.5A
Recommended Operating Current	Up to 1.2A	Max 1.7A	Up to 2A
Microstepping	256 microsteps	256 microstep subdivision	256 microstep subdivision
Configuration	STEP/DIR OR UART	STEP/DIR OR UART	STEP/DIR OR UART
Load Drive Voltage	5~36V	5.5~38V	5~36V
Logic Voltage	3.3V/5V	3/5V	3.3V/5V

📐 Dimension Info

• Module size: 20.5 X 15.0 X 3.2mm
• Net weight:7g

⚠ Important Notes

• TMC2209 supports UART mode by default without jumpers.
• Please match the driving current according to your stepper motor specification to avoid burnout.
• Install the heatsink firmly before long time continuous working for heat dissipation.
• Check wiring carefully before power on, wrong wiring may damage the driver and mainboard.

🛠 Application Scenarios

• 3D printer stepper motor driving
• Small CNC engraving machine motion control
• DIY two-phase stepper motor control projects
• Embedded motion control system
