USB Voltage Current Tester Digital Display USB Power Meter Capacity Detector Monitor For Charger Power Bank Testing V20 V21 Version

USB Voltage Current Tester Digital Display USB Power Meter Capacity Detector Monitor For Charger Power Bank Testing V20 V21 Version - Image 3

SKU N/A Category Instruments & Test Equipment Tags charging tester, portable test tool, power capacity detector, usb analyzer, usb power monitor, usb tester, usb voltage current meter Brand: WAVGAT

USB Voltage Current Tester Digital Display USB Power Meter Capacity Detector Monitor For Charger Power Bank Testing V20 V21 Version

Name: USB Voltage Current Tester Digital Display USB Power Meter Capacity Detector Monitor For Charger Power Bank Testing V20 V21 Version
Brand: WAVGAT

Price :

$1.40 $1.43Price range: $1.40 through $1.43

Module Version

Clear

Portable USB power meter with digital display, real‑time measuring voltage, current, charging time and mAh capacity, resetable for charger and power bank test.

Description

KWS‑V20/V21 USB Voltage Current Tester

📌 Product Overview The KWS‑V20/V21 USB voltage and current tester is a portable digital power detection instrument for USB charging equipment. It can synchronously monitor real‑time voltage, current, charging time and accumulated battery capacity (mAh). It is equipped with a clear digital display screen and an independent reset button to clear timing and capacity records. Two optional styles are available: V20 with a blue transparent housing and V21 with a black transparent housing. Plug‑and‑play design without extra driver software, which is widely used for performance testing of mobile phone chargers, power banks, car chargers and various USB power adapters. ✨ Core Features

Multi‑group data synchronous display: voltage, current, charging time and accumulated capacity value.
Wide measurement range: test voltage 4‑20V, test current 0‑3A.
High‑precision resolution: voltage resolution 0.01V, current resolution 0.01A, measurement accuracy ±1%.
Independent RESET key for one‑click clearing of timing and capacity data.
Transparent shell design for observing the internal circuit structure.
No external power supply or driver required, plug‑and‑play for quick testing.

📋 Product Specifications

Item	Parameter
Model	KWS‑V20 / KWS‑V21
Test Voltage Range	4‑20V
Voltage Resolution	0.01V
Test Current Range	0‑3A
Current Resolution	0.01A
Measuring Accuracy	±1%
Optional Color	Blue, Black
Working Temperature	-40℃ ~ +85℃

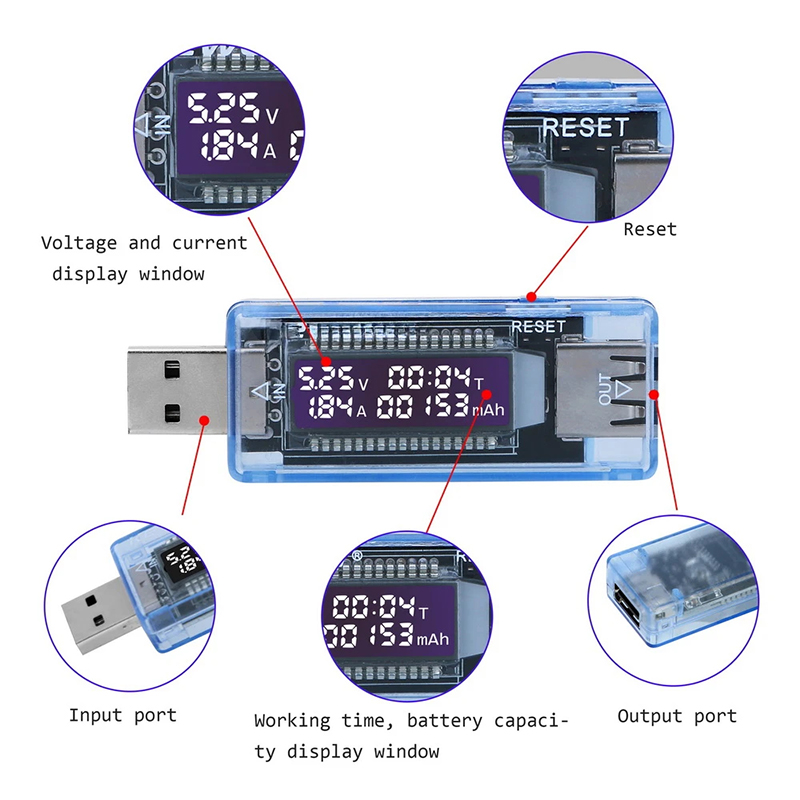

🔌 Terminal Definition ‑ USB‑IN: Input port, connect to charger or power supply ‑ USB‑OUT: Output port, connect to mobile phone or load device ‑ RESET button: Reset and clear the recorded timing and capacity data 📑 Model Description ‑ KWS‑V20: Blue transparent case, USB input on the left side ‑ KWS‑V21: Black transparent case, USB input on the right side 🛠 Wiring Instruction ‑ Insert the tester between the charger and the charging device. ‑ Press the RESET button before a new test to reset all recorded data. ‑ Do not exceed the maximum 3A test current during measurement. 🎯 Application Scenarios ‑ Detect charging performance of mobile phones, tablets and smart devices ‑ Test actual output parameters of power banks and USB chargers ‑ Verify the quality of car USB chargers and desktop power adapters ‑ DIY electronic power supply testing and charging solution verification
