VER 009S Plus PCI-E X1 to X16 Riser Card GPU Mining Extension Adapter Board

Product Overview

Core Product Features

1. Anti-Burn Stable Power Circuit
   Built-in dedicated anti-burn chip + 8 FP solid capacitors, dual power supply (6P graphics card port + SATA 15pin) with 16A large current capacity, independent power supply for GPU to reduce motherboard load, safe for long-time high-load mining operation.
2. Full Shielded Anti-Interference Design
   GPU PCI-E X16 slot with metal shielding cover, multi-layer shielded USB transmission cable, matched with 3 working status LED indicators to monitor running state in real time, effectively block electromagnetic interference and avoid signal drop.
3. Gold-Plated High-Speed USB3.0 Transmission
   Gold-plated USB3.0 interface reduces contact resistance, faster data transmission speed, stable signal without loss, 60cm flexible soft cable for free layout of graphics cards inside the case.

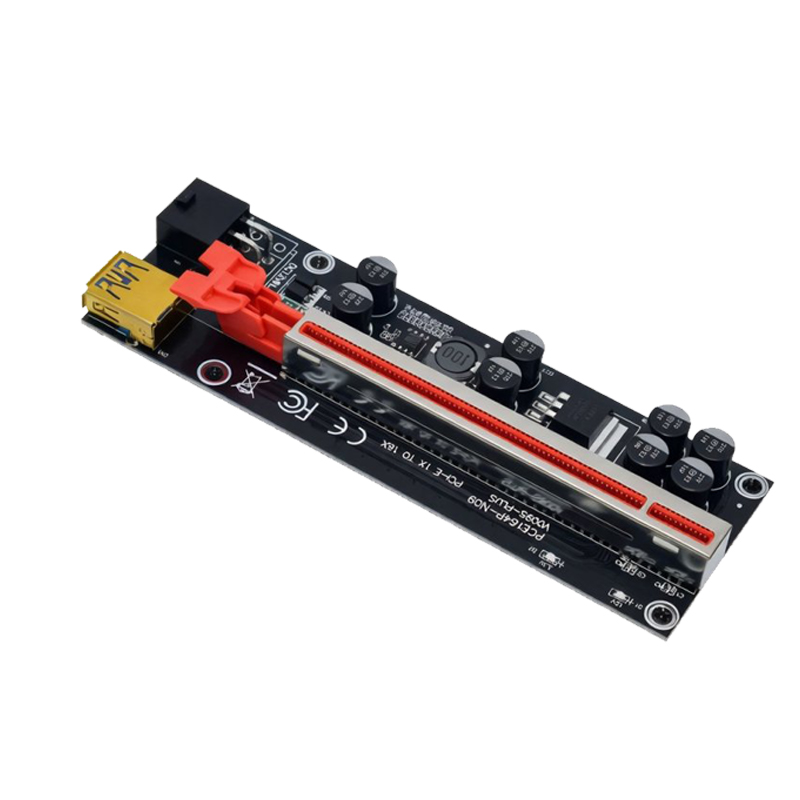

4. Imported Locking PCI-E Slot
   Original imported X16 slot with fixed plastic latch, firmly lock graphics card to prevent loose or falling off during vibration, easy plug and replacement of GPU.
5. Wide Compatibility Multi-Slot Support
   Compatible with all motherboard PCI-E slots: 1X, 2X, 4X, 8X, 16X, supports 1-16X and 16-16X transmission modes, perfectly fit all mainstream mining graphics cards.

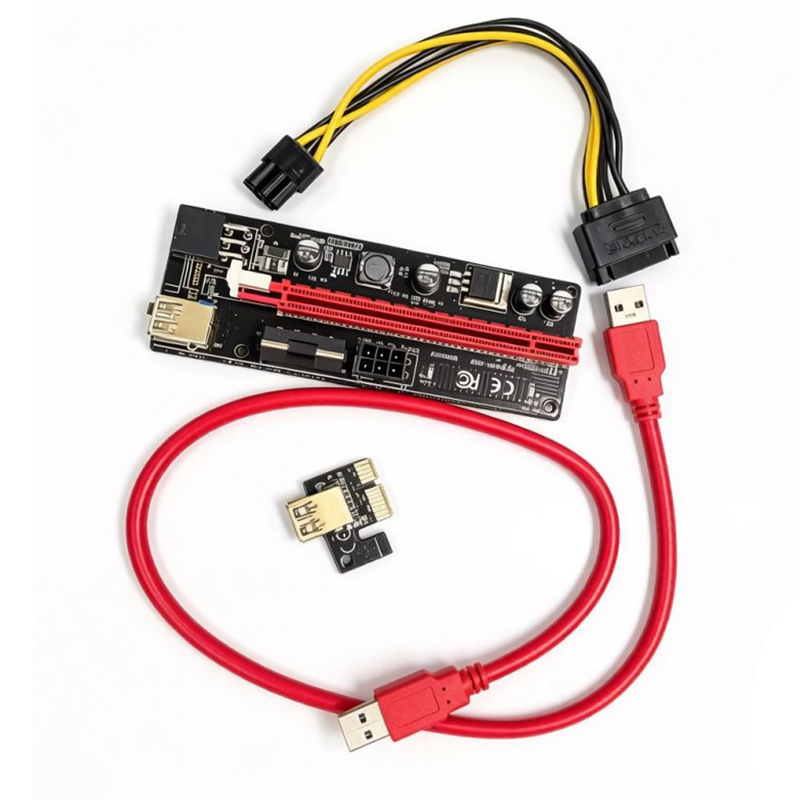

6. Complete Full Set Accessories
   Comes with PCI-E X1 small adapter card, X16 riser board, 60cm USB3.0 extension cable, SATA to 6P power conversion cable, all parts ready for direct assembly.

Product Advantages Over Ordinary Riser Cables

• Solve common defects of traditional flat riser cables: easy burnout of solder joints, severe signal attenuation, insufficient power supply and limited layout space.
• Independent separate power supply architecture, share power pressure with motherboard, stable running for multi-card mining equipment without crash.
• Alloy PceA PCB material, uniform voltage output, extend service life of GPU and motherboard.
• Flexible bendable USB cable, arbitrary placement of graphics card to improve heat dissipation space of mining rig.

Full Technical Specifications

Installation Steps & Operation Instructions

1. Power off the computer completely before plugging any parts to avoid hardware damage.
2. Insert the small PCI-E X1 adapter into the motherboard PCI-E slot, connect the USB cable between X1 adapter and X16 riser board.
3. Connect SATA power cable to the board’s SATA port, then connect the 6P cable to the graphics card power port to supply independent power.
4. Insert your graphics card into the shielded PCI-E X16 slot, lock the side latch to fix GPU.
5. Double-check all cables are plugged in forward direction, fully inserted without offset, then boot up the machine.

Important Usage Notes

1. Must connect SATA/6P auxiliary power cable when using high-power graphics cards; insufficient power will cause crash or hardware burnout.
2. Do not use non-matching replacement cables, only use the original supporting cables included in the package.
3. Insert cables forward only; reverse or offset plugging will scratch golden pins and damage the board and GPU.
4. Hold the socket when plugging/unplugging cables, do not pull the wire hard to prevent solder joint breakage.
5. This riser is a consumable part; long-term high-intensity mining operation damage is not covered by after-sales service.
6. Batch raw materials may have slight differences in capacitor, slot and USB color, which do not affect normal performance.

Application Scenarios

• Multi-GPU Mining Rig, Ethereum / Bitcoin Mining Equipment
• Small chassis PC GPU expansion, space-limited desktop host
• Server multi-graphics card parallel computing, video rendering workstation
• DIY computer external graphics card extension, multi-display splicing equipment

Buyer Pre-Purchase Reminders

1. This PCI-E riser belongs to special computer accessories, does not support 7-day free return without reason.
2. There may be individual motherboard/graphics card compatibility problems; buyers need to independently debug technical problems after purchase.
3. Stock quantity changes in real time, please consult customer service for inventory before placing orders.
4. Long-term heavy load use will cause aging of the riser board, which is not within the scope of after-sales warranty.
