DM542 DSP Digital Stepper Motor Driver 4.2A 20‑50VDC For 57 86 Stepper Motor

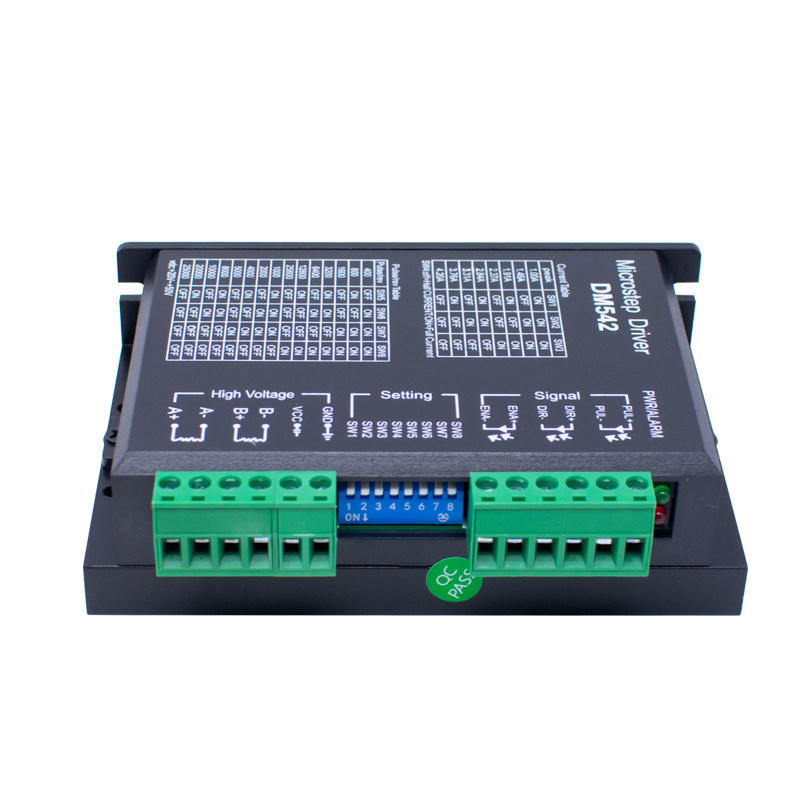

DM542 DSP Digital Stepper Motor Driver 4.2A 20‑50VDC For 57 86 Stepper Motor - Image 3

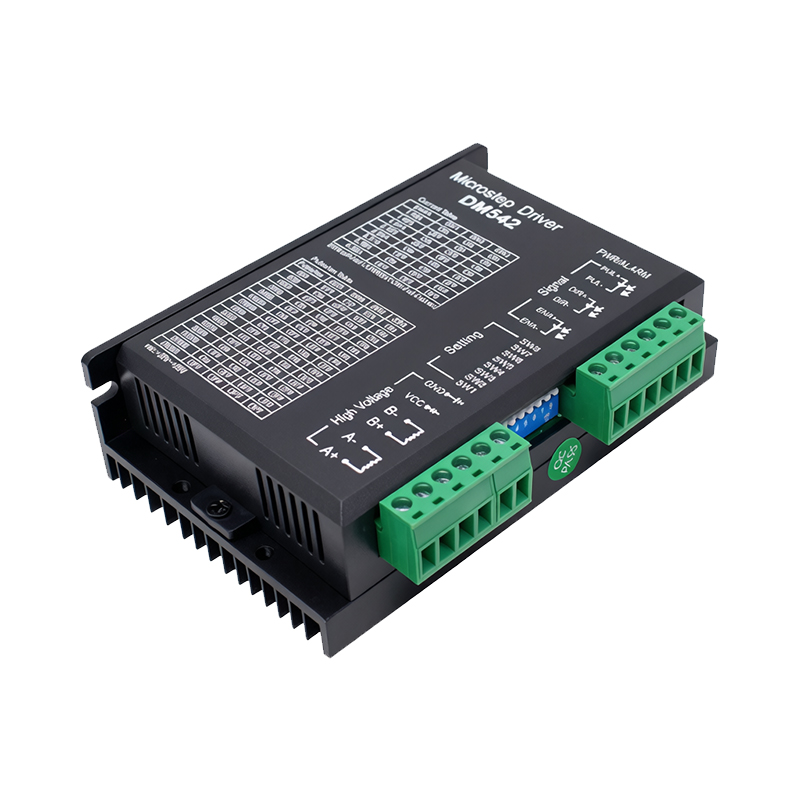

DM542 DSP Digital Stepper Motor Driver 4.2A 20‑50VDC For 57 86 Stepper Motor - Image 4

SKU N/A Category Motor Driver Modules Tags 2‑phase stepper driver, 4.2A motor controller, 57 86 stepper motor, aluminum housing, cnc driver, cnc machine parts, DM542, DSP digital driver, microstep driver, plastic housing, stepper motor driver Brand: WAVGAT

DM542 DSP Digital Stepper Motor Driver 4.2A 20‑50VDC For 57 86 Stepper Motor

Name: DM542 DSP Digital Stepper Motor Driver 4.2A 20‑50VDC For 57 86 Stepper Motor
Brand: WAVGAT

Price :

$4.59 $8.62Price range: $4.59 through $8.62

Version

Clear

DM542 digital DSP stepper motor driver supports max 4.2A output current, 20‑50VDC power supply, multiple micro‑step subdivision, built‑in over‑voltage & over‑current protection, widely used for 57 and 86 two‑phase stepper motors on CNC engraving and automation equipment.

Description

✅ Product Overview

DM542 is a professional digital two‑phase hybrid stepper motor driver, compatible with most mainstream brands of two‑phase stepper motors worldwide. It supports 4‑wire, 6‑wire, 8‑wire two‑phase hybrid stepper motors, phase current up to 4.2A, fit for 57‑86mm stepper motors (86 motor below 4NM). Widely applied in engraving machines, marking machines, cutting machines, laser typesetters, plotters, CNC machine tools, pick‑and‑place equipment and other medium‑small automation devices. It performs excellently for low‑cost, low‑noise, medium‑low‑speed operation scenarios.

📌 Note: Standard DM542 comes with plastic or aluminum cover, no difference in performance. Three versions are available: Standard DM542, High‑Performance DM542, High‑Voltage DM542. High‑performance version delivers better high‑speed commutation performance.

✅ Main Features

Integrated overvoltage & overcurrent protection function
Optical isolation for input signal
Bipolar constant‑current chopping drive mode
Power supply: 20‑50VDC, recommended operating voltage 24‑45VDC
Max output driving current: 4.2A, adjustable via DIP switches
Low‑speed no‑vibration, low noise operation
Multiple micro‑step subdivision: 2/4/8/16/32/64/128 /5/10/20/25/40/50/100/125
Strong anti‑interference, high‑precision positioning under harsh power‑grid environment
Sufficient power‑device safety margin, strict factory testing for high reliability

📋 Parameter Comparison

Item	DM542 Standard	DM542 High Performance	DM542 High Voltage Version
Current Range	1.0A‑4.2A	1.0A‑4.2A	1.0A‑4.2A
Voltage Range	20‑50VDC	20‑50VDC	20‑80VDC /20‑50VAC
Microstepping	400‑25600	400‑25600	400‑25600
Drive Motor	2‑phase stepper motor	2‑phase stepper motor	2‑phase stepper motor
MCU Processor	Third‑generation 8‑bit DSP	Third‑generation 32‑bit DSP	Third‑generation 8‑bit DSP
Applicable Motor	42/57/86(＜3NM)	42/57/86(＜4NM)	42/57/86(＜4NM)
Pulse Signal	3.3‑24V universal, no series resistor needed	3.3‑24V universal, no series resistor needed	3.3‑24V universal, no series resistor needed
Heat Generation	Low heat generation	20% less heat vs standard version	Low heat generation
Noise	Silent, low noise	10% lower noise vs standard version	Silent, low noise
High‑Speed Performance	Medium‑low speed suitable	Excellent full‑speed & high‑speed commutation	Medium‑low speed suitable
Dimension	1187633mm	1187633mm	1187633mm
Weight	0.25KG	0.25KG	0.25KG
Package	Paper box	Paper box	Paper box

✅ Electrical & Environmental Conditions

Item	Specification
Cooling Method	Natural cooling or forced air cooling
Working Environment	Keep away from heat‑generating devices; avoid dust, oil mist, corrosive gas, high humidity, strong vibration
Humidity	40‑90%RH
Vibration Resistance	10‑55Hz /0.15mm
Storage Temperature	-20℃ ~ 65℃
Weight	0.25kg

✅ DIP Switch Setting

🔹 Operating Current Setting (SW1‑SW3)

Run Current	SW1	SW2	SW3
1.00A	ON	ON	ON
1.46A	OFF	ON	ON
1.91A	ON	OFF	ON
2.37A	OFF	OFF	ON
2.84A	ON	ON	OFF
3.31A	OFF	ON	OFF
3.76A	ON	OFF	OFF
4.20A	OFF	OFF	OFF

🔹 Standby Current Setting (SW4)

SW4 Status	Standby Current Mode
ON	Full Current
OFF	Half Current

🔹 Microstepping Setting (SW5‑SW8)

Pulses/Rev	SW5	SW6	SW7	SW8
400	OFF	ON	ON	ON
800	ON	OFF	ON	ON
1600	OFF	OFF	ON	ON
3200	ON	ON	OFF	ON
6400	OFF	ON	OFF	ON
12800	ON	OFF	OFF	ON
25600	OFF	OFF	OFF	OFF
1000	ON	ON	ON	OFF
2000	OFF	ON	ON	OFF
4000	ON	OFF	ON	OFF
5000	OFF	OFF	ON	OFF
8000	ON	ON	OFF	OFF
10000	OFF	ON	OFF	OFF
20000	ON	OFF	OFF	OFF
25000	OFF	OFF	OFF	OFF

✅ Wiring Instructions

Two wiring modes: Common Anode (Low‑level active), Common Cathode (High‑level active).

Control signal terminal: PUL+,PUL‑ Pulse signal; DIR+,DIR‑ Direction signal; ENA+,ENA‑ Enable signal. Signal voltage supports 3.3V‑24V, external series resistor is not required.
Power terminal: VCC & GND for DC power input 20‑50VDC (recommended 24‑45VDC).
Motor terminal: A+,A‑ / B+,B‑ connect two‑phase stepper motor winding.
⚠️ Important Reminder: It is recommended to connect motor wires first, then power supply wires.

✅ Physical Size

Dimension: 118mm ×76mm ×33mm

Weight: 0.25kg

✅ Application Scenarios

CNC engraving machine, marking machine, cutting equipment, laser machine, plotter, pick‑and‑place machine, automation production equipment.
