Dual‑Color LED Common Cathode Module 2.3‑2.6V Bi‑Color Light Emitting Indicator Module 3‑Pin LED Display Board For Arduino Raspberry Pi DIY Electronic Experiment Project
Dual‑Color LED Common Cathode Module 2.3‑2.6V Bi‑Color Light Emitting Indicator Module 3‑Pin LED Display Board For Arduino Raspberry Pi DIY Electronic Experiment Project
Price :
Original price was: $0.10.$0.10Current price is: $0.10.
- Information related to taxation
- Some question to contact us
- Shipping Information
5mm red‑green dual‑color common cathode LED module with onboard current‑limiting resistor, for status indication and lighting experiment, compatible with Arduino, STM32, Raspberry Pi.
Description
Dual‑color LED Common Cathode Sensor Module
📌 Product Overview

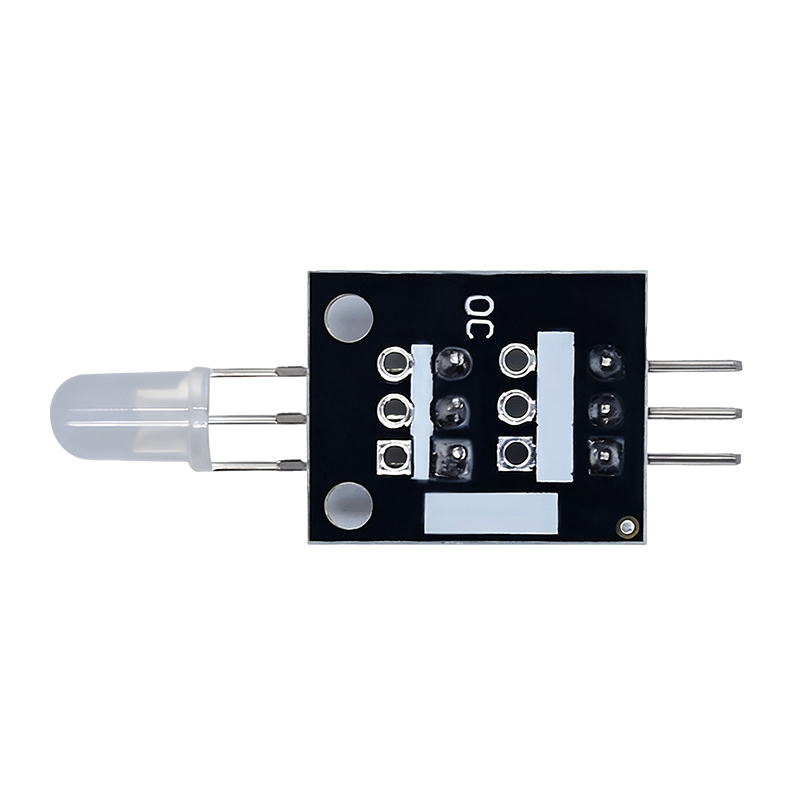

This is a 5mm dual‑color red‑green LED common cathode module, adopting long‑leg two‑color LED lamp bead, supports independent control of red light and green light, can light single‑color or mixed‑color effect. Onboard current‑limiting resistor, no extra external resistor needed, easy to connect with MCU IO port for indicator light experiment, status prompt and light‑related project development. Compact PCB structure, lightweight design, 3‑pin pin header for quick wiring, suitable for Arduino, STM32, Raspberry Pi and other mainstream control boards.📋 Product Specifications
| Item | Parameter |
|---|---|
| Glow Colors | Red, Green |
| LED Diameter | 5mm |
| Green Operating Voltage | 2.3‑2.6V |
| Red Operating Voltage | 1.9‑2.2V |
| Operating Current | 20mA |
| Wavelength | Red:625nm, Green:571nm |
| Luminous Intensity | Red:60‑80mcd, Green:20‑40mcd |
| LED Lead Type | Long legs |
| Module Dimension | 37.518.715mm |
| Module Weight | 1.2g |
| Working Temperature | -40℃ ~ +85℃ |
✨ Key Features
✅ Common cathode design, two‑color independent control ✅ On‑board current‑limiting resistor, safe and convenient to use ✅ 5mm frosted diffused LED bead, soft uniform light output ✅ Small size, ultra‑light weight, easy for embedded installation ✅ Standard 3‑pin interface, plug‑and‑play for microcontroller projects ✅ Wide working temperature range, stable performance🛠 Application Scope
Widely applied for electronic dictionary, PDA, MP3 player, headphone, digital camera, car audio system, communication equipment, computer peripheral, charger, amplifier, instrument, electronic toy, status indicator for DIY Arduino / STM32 projects and other electronic scenarios.⚠ Important Usage Notice
Do not exceed rated operating voltage and current to avoid burning LED beads. This module is common cathode type, please confirm signal logic before power‑on. Kind reminder: If there are version differences or images not been updated, please refer to the actual product.
