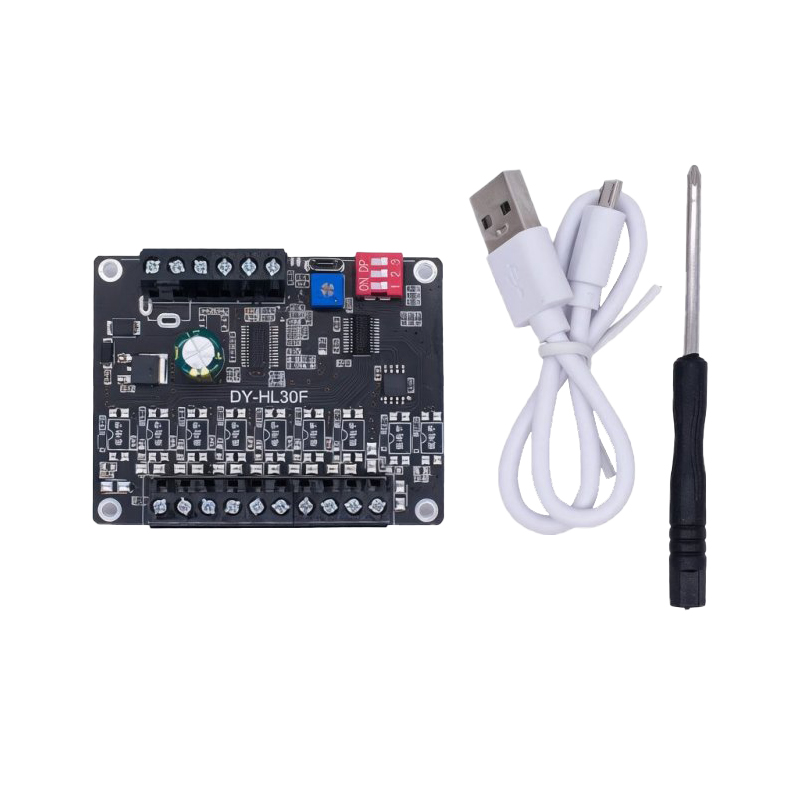

DY‑HL30F Industrial Grade Voice Playback Module

📌 Product Overview The DY‑HL30F is a 9‑channel one‑to‑one trigger audio playback module, supporting MP3 and WAV audio decoding. It provides two trigger versions: high‑level trigger and low‑level trigger. The module adopts 9‑24VDC wide‑voltage power supply design, built‑in 30W Class‑D power amplifier, which can directly drive 4‑8Ω, 10‑30W speakers. It is equipped with 64Mbit (8MB) on‑board flash memory. Users can connect it to a computer via USB interface to replace audio files freely. It supports volume adjustment via potentiometer, external warning light access and multiple configurable trigger modes, widely used in industrial voice prompt, equipment alarm, automated guide system and other scenarios. ✨ Core Features

• Wide voltage power supply: 9‑24VDC input
• 9 independent trigger interfaces, one‑to‑one control for 9 audio tracks
• Two optional versions: high‑level trigger and low‑level trigger
• Decode MP3 / WAV audio format, maximum sampling rate up to 48KHz
• Built‑in 64Mbit (8MB) flash storage, update audio files through USB connection
• Integrated 30W Class‑D amplifier, directly drive 4‑8Ω 10‑30W loudspeakers
• Reserved interface for external warning light (warning light voltage shall match power supply voltage)
• DIP switch to configure multiple trigger playback modes
• Potentiometer for manual volume adjustment
• High‑level version supports optical isolation for stable industrial use

📋 Product Parameters

Item	Specification
Model	DY‑HL30F
Power Supply	9‑24VDC
Amplifier Power	Max 30W
Speaker Impedance	4‑8Ω
Storage Capacity	64Mbit (8MB)
Audio Format	MP3, WAV, up to 48KHz sampling rate
Trigger Channel	9 channels (S1‑S9)
Versions	Low‑level Trigger / High‑level Trigger
Control Method	DIP switch mode setting, potentiometer volume control
PCB Dimension	73mm × 56mm
PCB Weight	35.3g
Enclosure Dimension	93mm × 60mm
Enclosure Weight	62.1g

📐 Dimension Info

• Bare PCB: 73mm * 56mm, weight: 35.3g
• DIN Rail Enclosure Version: 93mm * 60mm, weight: 62.1g

⚠ Important Usage Notice

1. Supply voltage must be kept between 9‑24VDC, overvoltage will damage the module.
2. The impedance of the matched speaker must be 4‑8Ω, power range 10‑30W.
3. The working voltage of the external warning light needs to be consistent with the module power supply voltage.
4. After adjusting the DIP switch mode, power‑off and restart the module to make the configuration take effect.
5. When connecting to the computer via USB, the module will be recognized as a removable disk for audio file replacement.

🛠 Application Scenarios

• Industrial equipment voice alarm and prompt
• Automatic door, elevator voice broadcast
• Traffic safety voice reminder device
• Production line automated voice prompt
• Exhibition hall guide voice playback
• Intelligent access control and safety warning system
