JDY‑62A Bluetooth Audio Module 5V Wireless Stereo Audio Receiver Board Auto‑Sleep Function For DIY Bluetooth Speaker Amplifier Audio Transformation
JDY‑62A Bluetooth Audio Module 5V Wireless Stereo Audio Receiver Board Auto‑Sleep Function For DIY Bluetooth Speaker Amplifier Audio Transformation
Price :
Original price was: $1.00.$0.79Current price is: $0.79.
- Information related to taxation
- Some question to contact us
- Shipping Information

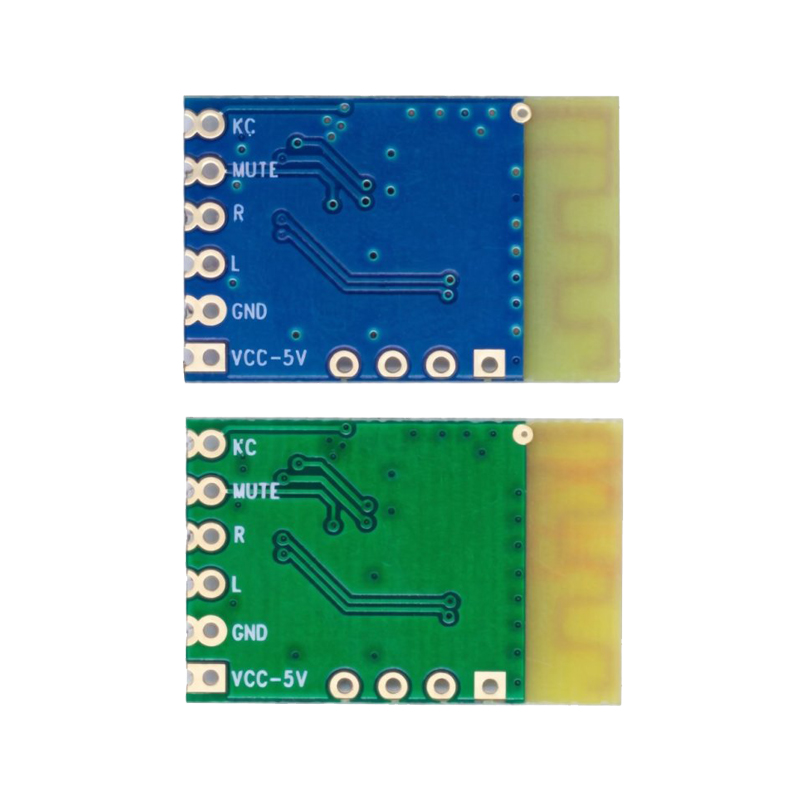

Mini JDY‑62A Bluetooth audio receiving module with left‑right stereo output, mute pin, compact 23X15.5mm size for speaker and amplifier DIY modification.
Description
JDY‑62A Bluetooth Audio Module
📌 Product Overview JDY‑62A is a compact Bluetooth stereo audio receiving module. It adopts an integrated audio Bluetooth chip, supports high‑fidelity stereo audio output with left and right channel analog audio signal pins. The module defaults to 5V power supply, and it can be modified to work with 3.7V lithium battery by simple hardware adjustment. Equipped with mute control pin, floating function pin and built‑in PCB antenna for stable wireless connection. It is widely used for DIY Bluetooth speakers, audio amplifier transformation, car audio modification and various custom wireless audio projects. ✨ Core Features- Bluetooth stereo audio reception, independent L / R dual‑channel analog audio output
- Default 5V power supply, hardware modification supports 3.7V lithium battery power supply
- MUTE control pin for audio mute signal output during playback pause
- On‑board printed PCB antenna, stable signal transmission performance
- Ultra‑small PCB size, low power consumption, support automatic sleep function
- Pin‑out design for easy wiring and secondary development matching with power amplifier boards
- The standard version is powered by DC 4.2‑5V, the supply voltage must not exceed 5V
- It is recommended to add an LC filter circuit on the power supply terminal to reduce power interference and avoid audio noise or Bluetooth search failure
- Do not lay wires or copper under the onboard antenna area, keep away from metal shielding to guarantee receiving sensitivity
- Separate the Bluetooth module ground and power amplifier ground to reduce current noise
- For 3.7V lithium battery power supply, replace the surface‑mount diode with a 0R resistor or short‑circuit the pad manually
Downloads
PDF File
JDY‑62A Bluetooth Audio Module 5V Wireless Stereo Audio Receiver Board Auto‑Sleep Function For DIY Bluetooth Speaker Amplifier Audio Transformation
Price :
Original price was: $1.00.$0.79Current price is: $0.79.
- Information related to taxation
- Some question to contact us
- Shipping Information
Mini JDY‑62A Bluetooth audio receiving module with left‑right stereo output, mute pin, compact 23X15.5mm size for speaker and amplifier DIY modification.
Description
JDY‑62A Bluetooth Audio Module
📌 Product Overview JDY‑62A is a compact Bluetooth stereo audio receiving module. It adopts an integrated audio Bluetooth chip, supports high‑fidelity stereo audio output with left and right channel analog audio signal pins. The module defaults to 5V power supply, and it can be modified to work with 3.7V lithium battery by simple hardware adjustment. Equipped with mute control pin, floating function pin and built‑in PCB antenna for stable wireless connection. It is widely used for DIY Bluetooth speakers, audio amplifier transformation, car audio modification and various custom wireless audio projects. ✨ Core Features- Bluetooth stereo audio reception, independent L / R dual‑channel analog audio output
- Default 5V power supply, hardware modification supports 3.7V lithium battery power supply
- MUTE control pin for audio mute signal output during playback pause
- On‑board printed PCB antenna, stable signal transmission performance
- Ultra‑small PCB size, low power consumption, support automatic sleep function
- Pin‑out design for easy wiring and secondary development matching with power amplifier boards
- The standard version is powered by DC 4.2‑5V, the supply voltage must not exceed 5V
- It is recommended to add an LC filter circuit on the power supply terminal to reduce power interference and avoid audio noise or Bluetooth search failure
- Do not lay wires or copper under the onboard antenna area, keep away from metal shielding to guarantee receiving sensitivity
- Separate the Bluetooth module ground and power amplifier ground to reduce current noise
- For 3.7V lithium battery power supply, replace the surface‑mount diode with a 0R resistor or short‑circuit the pad manually
Downloads
PDF File
