ESP32‑C3 Core Development Board 4‑Layer Gold‑plated PCB Onboard 2.4G Antenna Type‑C Interface WiFi BLE Module For IoT Embedded DIY Project

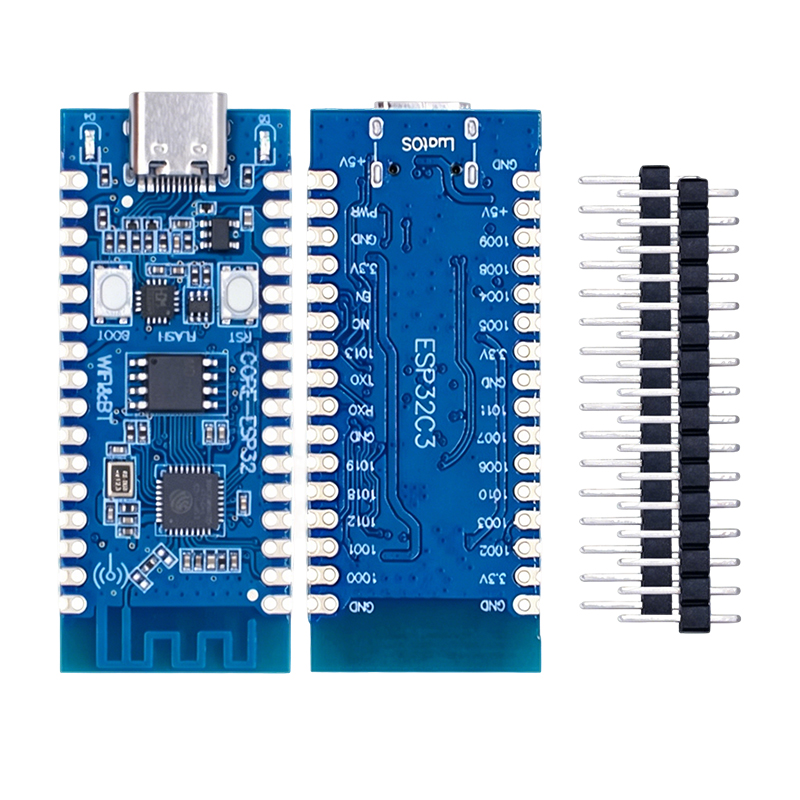

CORE‑ESP32‑C3 Development Core Board

📌 Product Overview

The CORE‑ESP32‑C3 core board is built upon Espressif ESP32‑C3 chip, compact size only 21mm * 51mm. It adopts stamp‑hole edge design, convenient for secondary embedding integration. This board brings rich hardware peripherals including UART, GPIO, SPI, I2C, ADC, PWM interfaces. Two versions are available: Classic Version with serial chip for IDE debugging, and Lite Version without serial chip for mass‑production cost‑saving. It supports LuatOS, LuaPanda IDF, Arduino, MicroPython and other development frameworks. Only LuatOS obtains official technical support. 4‑layer gold‑plated PCB with onboard 2.4G PCB antenna, Type‑C USB interface for downloading and power supply.

📋 Product Specifications

Item	Parameter
Model	CORE‑ESP32‑C3 Development Board
Chip	ESP32‑C3
Size	21mm × 51mm
SPI Flash	4MB Onboard
UART	2 Channels (UART0 ~ UART1)
ADC	2 Channels,12‑bit, max 100KSPS sampling rate
SPI	1 Channel, master mode supported
I2C	1 Channel
PWM	4 Channels
GPIO	15 reusable external pins
Indicator LED	2 pcs
Buttons	Reset ×1, BOOT ×1
Antenna	Onboard 2.4G PCB Antenna
Interface	Type‑C USB‑to‑TTL, auto download supported
Weight‑Lite Version	5.2g
Weight‑Classic Version	5.4g
Working Temperature	-40℃ ~ +85℃

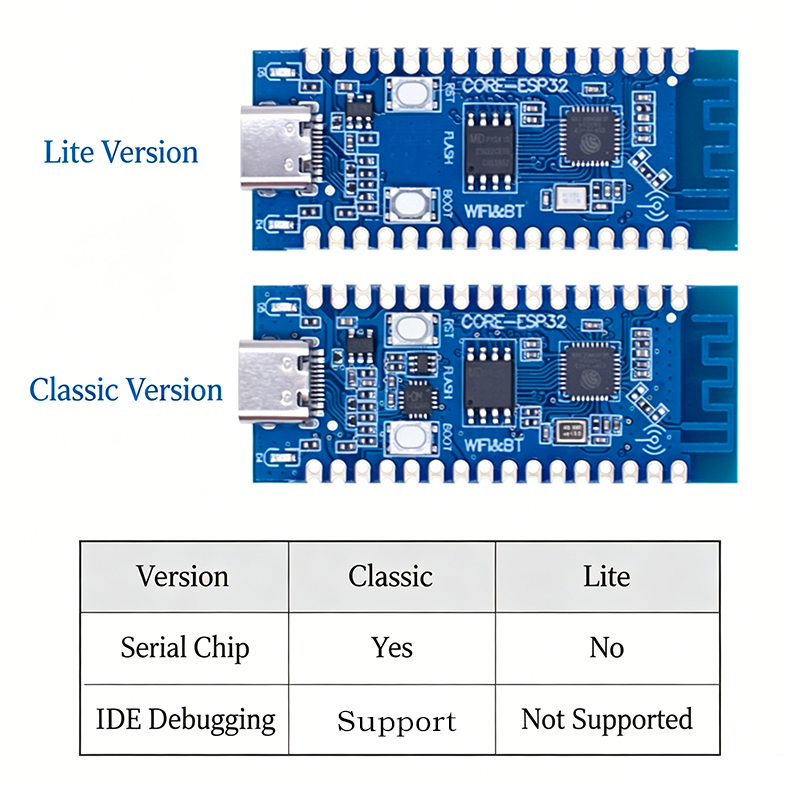

📝 Version Comparison

Version	Classic	Lite
Onboard Serial Chip	✅ Yes	❌ No
IDE Debugging Support	✅ Support	❌ Not Supported

✨ Core Features

✅ Powered by ESP32‑C3 RISC‑V chip, integrated WiFi & Bluetooth 5.0 function ✅ Stamp‑hole stamp hole design, easy for soldering and embedding into customer equipment ✅ 4‑layer gold‑inlay PCB, stable signal performance ✅ On‑board 2.4G PCB antenna, reliable wireless communication ✅ Type‑C interface, convenient for power supply and firmware download ✅ Classic version with built‑in USB‑TTL chip, support automatic download & IDE debugging ✅ Lite version removes serial chip, lower cost for mass‑production projects ✅ Abundant GPIO peripherals: UART / SPI / I2C / ADC / PWM for IoT project development ✅ Support multiple development frameworks: LuatOS, Arduino, MicroPython etc.

⚠ Important Usage Notice

Note: Official technical support is only provided for LuatOS development. No after‑sales service for problems caused by other development frameworks. Kind reminder: If there are version differences or images not been updated, please refer to the actual product.
