ESP32‑C6‑DevKitC‑1‑N4/N8/N16 WiFi Bluetooth BLE Development Board Dual Type‑C Port Optional Soldered Pin Header For IoT Smart Home Arduino Project

ESP32‑C6‑DevKitC‑1 Development Board

📌 Product Overview

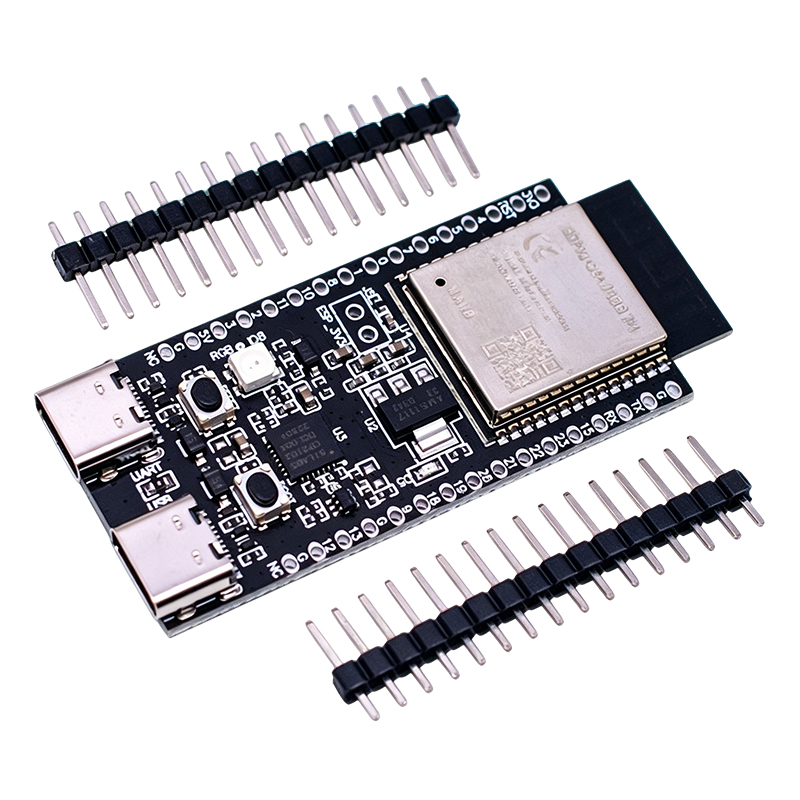

ESP32‑C6‑DevKitC‑1 is a general‑purpose Wi‑Fi 6 + Bluetooth 5 development board built around ESP32‑C6‑WROOM‑1 wireless module. It supports Wi‑Fi 6, Bluetooth 5, IEEE 802.15.4 (Zigbee 3.0 and Thread), ideal for IoT device development, smart home projects, sensor node testing and wireless prototype verification. This board is equipped with dual Type‑C USB ports, one for ESP32‑C6 native USB interface and another for USB‑to‑UART bridge. All GPIO pins are fully led out via pin headers, supporting flexible peripheral connection. Onboard resources include addressable RGB LED, BOOT download button, RESET button, 3.3V power indicator and 5V‑to‑3.3V LDO power converter. Two flash versions are optional: 4MB (N4) and 8MB (N8).

📋 Technical Parameters

Item	Parameter
Module Model	ESP32‑C6‑WROOM‑1
Wireless Standard	Wi‑Fi 6, Bluetooth 5, Zigbee3.0, Thread
Flash	4MB / 8MB optional
Antenna	On‑board PCB antenna
USB Interface	Dual USB Type‑C
USB‑UART Bridge	Max 3Mbps transmission rate
Native USB	USB2.0 full‑speed, max 12Mbps
Onboard LED	GPIO8 driven addressable RGB LED, 3.3V power‑on indicator
Buttons	Reset button, Boot download button
Dimension	58.8 * 25.5 mm
Weight	9.4g
Working Temperature	-40℃ ~ +85℃

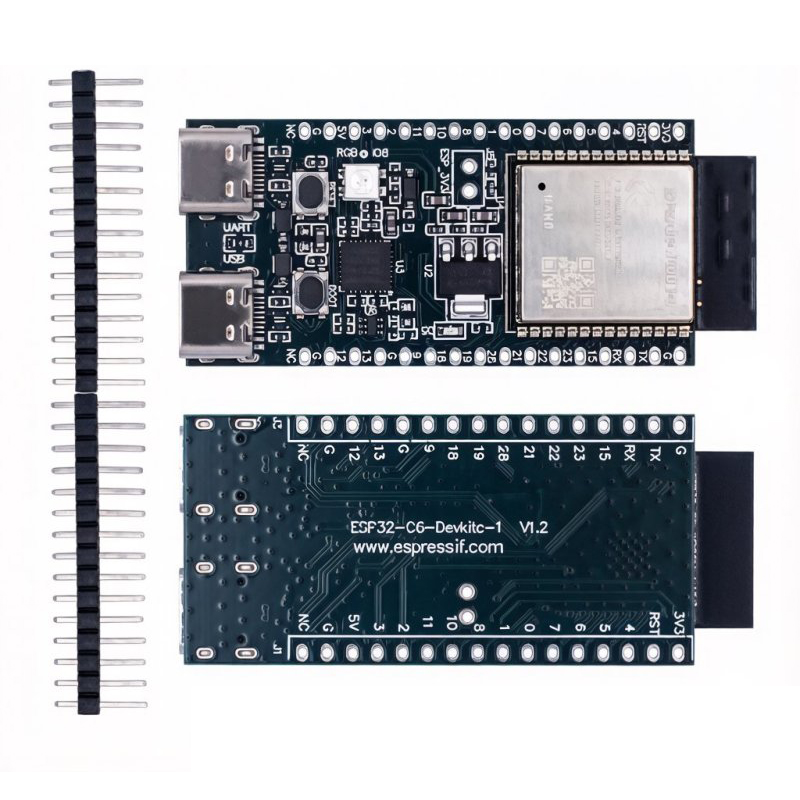

🔧 On‑board Main Components

• ESP32‑C6‑WROOM‑1 Module: Main wireless module with ESP32‑C6 chip, multi‑protocol wireless communication.
• Pin Header: All usable GPIO pins are extended for external wiring.
• 5V‑to‑3.3V LDO: Power converter, input 5V, output stable 3.3V power supply.
• USB‑to‑UART Bridge Chip: For serial download and debugging communication.
• Dual Type‑C Port: One for chip native USB, one for UART bridge communication & power supply.
• Boot Button: Firmware download trigger button, enter download mode with Reset button.
• Reset Button: System hardware reset.
• RGB LED: Addressable RGB light controlled by GPIO8.
• J5 Test Position: Reserved for current measurement test.

✨ Key Features

✅ Multi‑protocol wireless: Wi‑Fi6 + BLE5 + Zigbee + Thread, rich IoT protocol stack ✅ Dual Type‑C port design, convenient download, debugging and power supply ✅ All GPIO pins led out, easy to connect sensors, motors and other peripherals ✅ On‑board programmable RGB LED, convenient for status indication ✅ Compact size, lightweight, suitable for embedded prototype development ✅ 4MB /8MB flash optional, meet different firmware storage demands

🛠 Application Scenarios

Smart home terminal devices, Zigbee & Thread border router, IoT sensor nodes, wireless gateway, Bluetooth low‑energy projects, Wi‑Fi 6 prototype verification, embedded learning & maker DIY projects.

⚠ Important Usage Notice

Kind reminder: If there are version differences or images not been updated, please refer to the actual product.

1. Supply power within 5V voltage range to avoid hardware burnout.
2. When entering download mode, hold Boot button and press Reset button shortly.
3. J5 position is for current measurement test, do not short‑circuit in normal use.
4. Check pin definition before wiring to prevent wrong connection damage.
