ESP32‑S3‑CAM Development Board With OV2640 Camera Module WiFi Bluetooth USB‑C Interface For Image Acquisition Video Monitoring IoT Project DIY

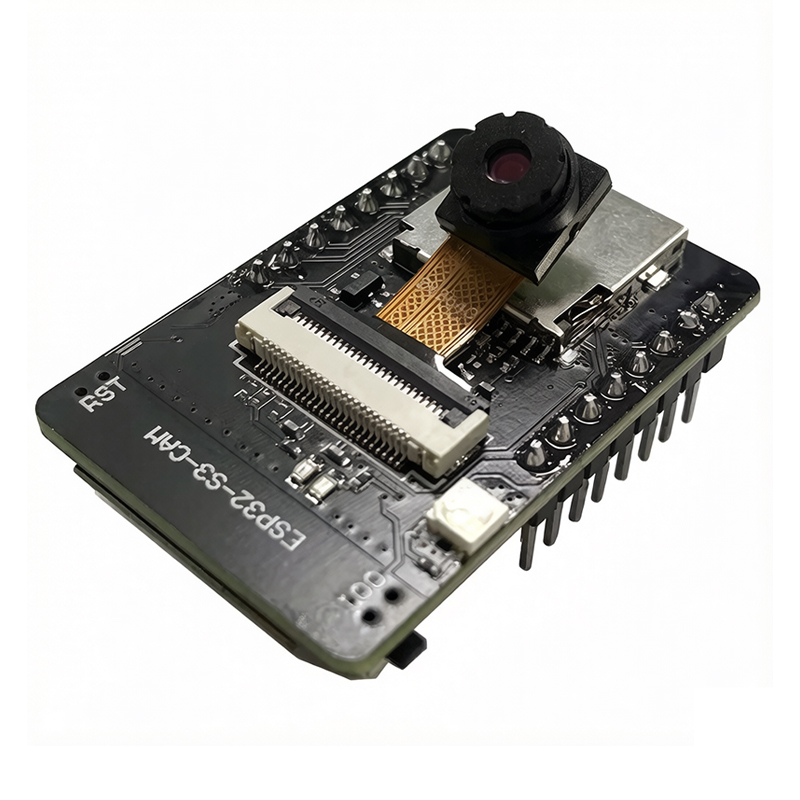

ESP32‑S3‑CAM Development Board with OV2640 Camera Module

📌 Product Overview

The ESP32‑S3‑CAM is an embedded IoT camera development board adopting XH‑S3E chip, fully compatible with ESP‑S3‑WROOM‑1 series module, default N16R8 hardware version. It integrates Wi‑Fi and Bluetooth dual‑mode wireless communication and is equipped with OV2640 camera sensor. It supports real‑time video preview, remote image capture and data transmission. The board is pre‑flashed with factory firmware and works with dedicated mobile APP. Plenty of GPIO pins are led out for peripheral expansion, and Type‑C port is used for power supply and program downloading. It is suitable for IoT visual development, remote monitoring, robot vision and various electronic DIY projects.

✨ Core Features

1. Onboard XH‑S3E main chip, compatible with ESP‑S3‑WROOM‑1 series module, N16R8 version.
2. Integrated Wi‑Fi + Bluetooth dual‑mode wireless communication function.
3. Equipped with OV2640 camera sensor for image and video collection.
4. Pre‑flashed factory firmware, supports real‑time preview via dedicated APP. Do NOT re‑flash firmware, otherwise APP connection function will fail.
5. Type‑C interface for power input and program download.
6. Abundant GPIO pins, convenient for fast external peripheral hardware expansion.
7. Connect EN and GPIO pins to DTR and RTS signals of serial chip to realize automatic software download.
8. Dual boot mode control: FLASH download mode (pull IO0 low then reset power‑on); Normal working mode (pull IO0 high then reset power‑on).
9. RST reset pin is active‑low; UART cross‑wiring: module RXD connects external MCU TXD, module TXD connects external MCU RXD.
10. Maximum IO output current: 12mA.
11. Industrial‑grade working temperature: -40℃ ~ +85℃.

📋 Product Parameters

Item	Parameter
Main Chip	XH‑S3E (ESP32‑S3 compatible), N16R8
Camera Sensor	OV2640
Wireless Function	Wi‑Fi + Bluetooth
Power Supply	DC 3.3V
IO Max Output Current	12mA
Download Interface	Type‑C
Boot Control	IO0 for mode selection, RST active‑low reset
Working Temperature	-40℃ ~ +85℃

📐 Dimension Info

‑ Mainboard: ESP32‑S3‑CAM core board ‑ Accessories: OV2640 camera module, pin header sockets

⚠ Important Usage Notice

The module supply voltage is DC 3.3V, over‑voltage input will burn out the chip. Set correct IO0 logic level to switch between download mode and normal running mode. Do not erase factory pre‑flashed firmware if APP network preview function is required. UART serial port between module and external MCU must adopt cross‑connection wiring. Kind reminder: If there are version differences or images not been updated, please refer to the actual product.

🛠 Application Scenarios

Remote video monitoring system, smart home camera, robot vision, IoT image acquisition device, visual sensor project, electronic secondary‑development experiment, DIY automation equipment.
