Raspberry Pi Pico W PR2040 Development Board RP2040 Chip 133MHz Dual‑Core Microcontroller Board With WiFi Module For IoT DIY Embedded Project

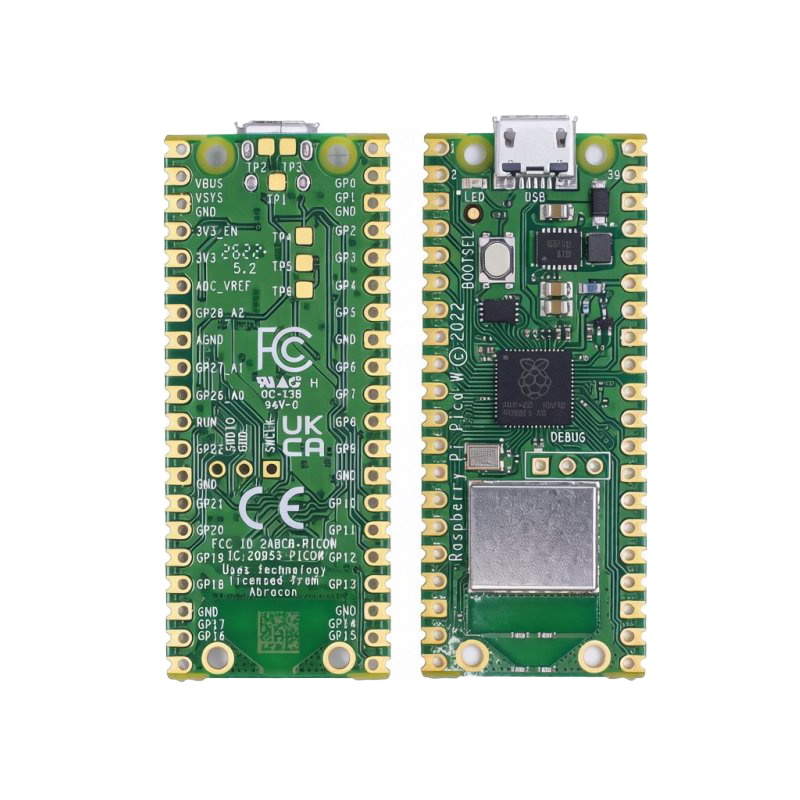

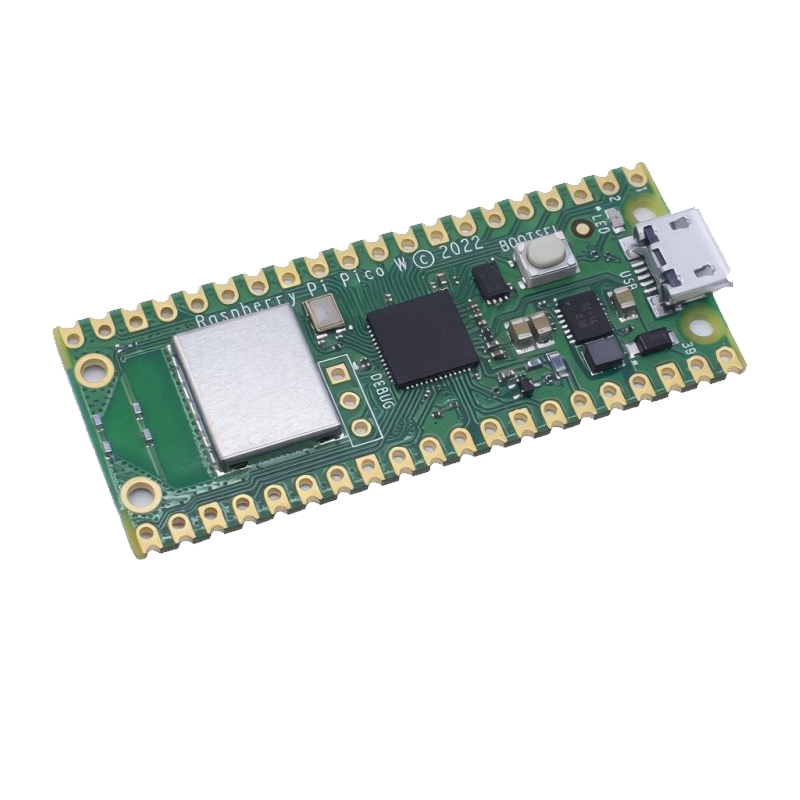

Raspberry Pi Pico W RP2040 Development Board

📌 Product Introduction

The Raspberry Pi Pico W is based on the Raspberry Pi Pico, with an added wireless communication module. The wireless hardware uses Infineon’s CYW43439 chip, supporting Wi‑Fi 4 networks, making wireless control and data transfer really convenient.

✨ Product Features

• Uses the Raspberry Pi’s officially self‑designed RP2040 microcontroller chip
• Features a dual‑core ARM Cortex M0 processor with a flexible clock speed up to 133MHz
• Equipped with Infineon’s CYW43439 wireless chip, supporting Wi‑Fi 4
• Built‑in 264KB SRAM and 2MB on‑chip Flash
• Staggered pin design, easy to solder directly onto user‑designed boards
• Supports USB 1.1 host and device mode
• Supports low‑power sleep and deep sleep modes
• Can be recognized as a mass storage device via USB for drag‑and‑drop programming
• Up to 26 multifunctional GPIO pins
• 2 SPI, 2 I2C, 2 UART, 3 12‑bit ADCs, 16 controllable PWM channels
• Accurate on‑chip clocks and timers
• Temperature sensor built‑in
• On‑chip hardware floating‑point library
• 8 Programmable I/O (PIO) state machines for custom peripheral support

💻 Software Support

Supports C/C++, MicroPython. A well‑equipped SDK and open‑source tutorials make it easy to get started and quickly integrate into your app.

• Pico C/C++ SDK: The official C SDK can be used from the command line or from popular IDEs like Visual Studio Code and Eclipse.
• MicroPython: MicroPython is a full implementation of the Python 3 programming language, and it runs directly on embedded hardware like the Raspberry Pi Pico.

📋 Technical Parameters

Item	Parameter
Main Chip	RP2040 Dual‑core Cortex‑M0+
Max Clock Frequency	133MHz
SRAM	264KB
Flash	2MB
Wireless Chip	CYW43439
Wi‑Fi Standard	Wi‑Fi 4
GPIO Quantity	26 Multifunctional GPIO
Communication Interface	2×SPI, 2×I2C, 2×UART, 3×12‑bit ADC
PWM Channel	16 channels
USB	USB1.1 Host & Device
Dimension	51.00 × 21.00 mm
Working Temperature	-40℃ ~ +85℃

⚠ Important Usage Notice

Kind reminder: If there are version differences or images not been updated, please refer to the actual product.

🛠 Application Scenarios

Suitable for IoT wireless projects, embedded development, learning programming, smart home control, sensor data acquisition, DIY electronic projects and rapid prototype verification.
