XH‑W3103 Digital Temperature Controller High Power Thermostat Switch With NTC Sensor Probe For Incubator Greenhouse Heating Cooling Control

XH‑W3103 Digital Temperature Controller

📌 Product Overview

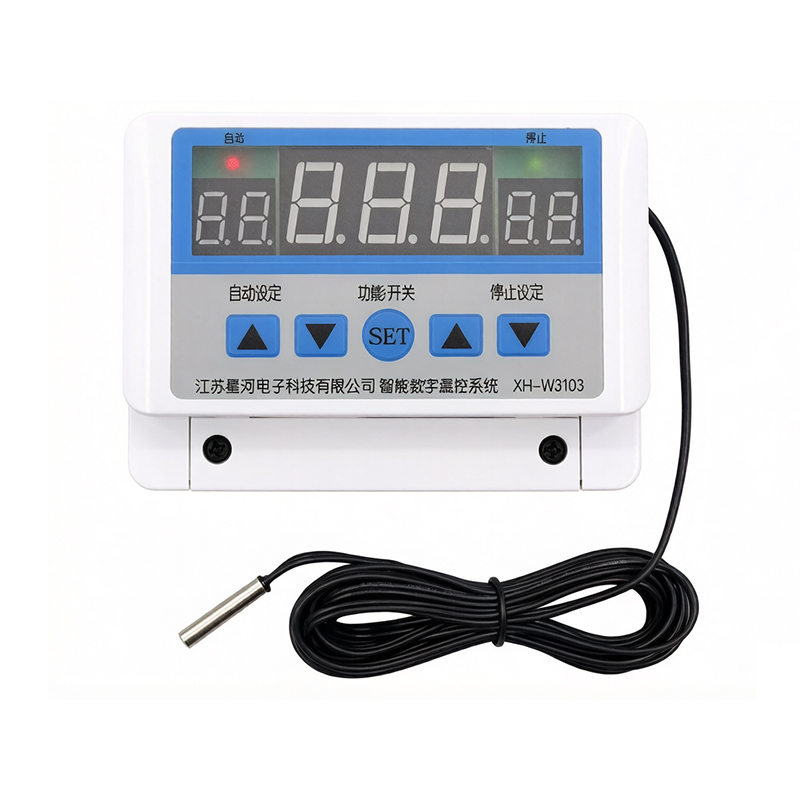

The XH‑W3103 is a high‑precision intelligent digital temperature thermostat equipped with a multi‑color LED triple‑display screen and a 2‑meter NTC10KB3950 waterproof temperature probe. It supports optional power supply of DC12V, DC24V and AC220V, with matched output power of 300W, 600W and 5000W respectively. This controller integrates multiple working modes including constant temperature control, intermittent cycle operation, timed shutdown and timed startup, as well as a built‑in temperature calibration function. Featuring simple key operation, wide temperature measurement range and stable control performance, it is widely used in heating and cooling equipment, breeding incubators, aquaculture tanks, industrial equipment and DIY constant‑temperature projects.

✨ Core Features

1. Three‑color digital tube triple display, real‑time view of running status, start‑stop temperature and working mode
2. Optional multi‑voltage power supply: DC12V / DC24V / AC220V for different load power requirements
3. High‑accuracy temperature sensing probe, measurement accuracy up to ±0.2℃, control accuracy at 1℃
4. 5 switchable working modes: constant temperature control, F1 intermittent cycle, F2 timed shutdown, F3 timed startup, temperature calibration
5. Independent up/down adjustment buttons and SET function key for quick parameter configuration
6. Built‑in error alarm mechanism, screen prompts for open‑circuit or short‑circuit faults of the temperature sensor
7. Support factory reset operation for one‑click recovery of default parameters
8. DIN rail mounting shell design, compact size 96 X 70 X 46mm, easy for cabinet installation
9. Waterproof NTC temperature sensor with 2‑meter cable for flexible layout in complex environments
10. Wide temperature measurement range: ‑50℃ ~ 110℃, temperature control range: ‑19℃ ~ 99℃

📋 Product Specifications

Item	Parameter
Model	XH‑W3103
Optional Input Voltage	DC12V / DC24V / AC220V
Matching Output Power	300W(DC12V) / 600W(DC24V) / 5000W(AC220V)
Temperature Sensor	NTC10KB3950, cable length 2m
Temperature Measurement Range	‑50℃ ~ 110℃
Temperature Control Range	‑19℃ ~ 99℃
Measurement Accuracy	±0.2℃
Control Accuracy	1℃
Working Modes	Constant Temp / F1 Intermittent / F2 Timed Off / F3 Timed On / Temp Calibration
Dimension	96 X 70 X 46mm
Net Weight	Approx 160g
Working Temperature	‑40℃ ~ +85℃

🔌 Wiring Description

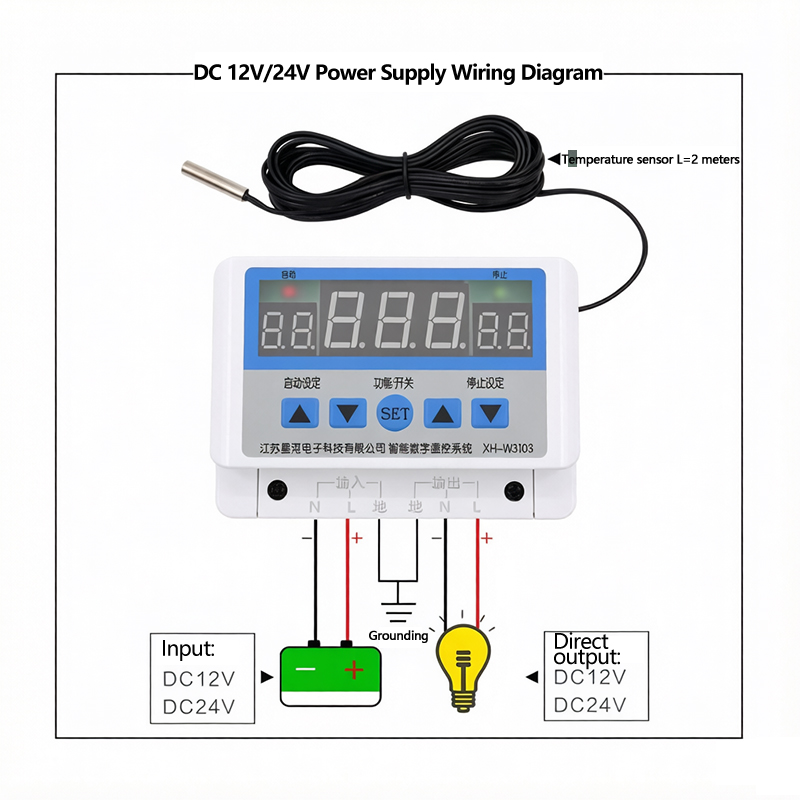

‑ DC12V / DC24V version: Connect the power supply to the input terminal, and the heating/cooling load to the output terminal, with positive and negative poles distinguished. ‑ AC220V version: Connect mains power to the input terminal, connect the AC load device to the output terminal, no distinction between live wire and neutral wire. ‑ The NTC temperature probe is plugged into the dedicated sensor port for real‑time temperature collection.

⚙️ Working Mode Introduction

‑ Constant Temperature Control Mode: Set start temperature and stop temperature, the controller automatically cuts off or switches on the load to maintain the target temperature. ‑ F1 Intermittent Operation Mode: Set the running duration and pause duration, the device automatically cycles start‑stop operation by minutes. ‑ F2 Timed Shutdown Mode: After the preset running time expires, the controller automatically cuts off the output power. ‑ F3 Timed Startup Mode: After the preset waiting time expires, the controller automatically switches on the load to start working. ‑ Temperature Calibration Mode: Manually compensate the detected temperature value within ‑10℃ ~ +10℃ to eliminate sensor deviation.

🎯 Application Scenarios

‑ Household heating and cooling constant‑temperature control system ‑ Breeding incubator, reptile pet box and poultry hatching equipment ‑ Aquarium, fish tank and water tank temperature management ‑ Industrial equipment constant‑temperature protection and cabinet heat dissipation control ‑ Greenhouse planting, fermentation box, DIY electronic constant‑temperature projects
