1‑Channel Relay Module For D1 Mini DC5V 10A 250VAC 3.3V Trigger Relay Expansion Board Compatible With Arduino ESP8266 Smart Home Control Project
1‑Channel Relay Module For D1 Mini DC5V 10A 250VAC 3.3V Trigger Relay Expansion Board Compatible With Arduino ESP8266 Smart Home Control Project
Price :
Original price was: $0.50.$0.37Current price is: $0.37.
- Information related to taxation
- Some question to contact us
- Shipping Information
Dedicated 1‑channel relay expansion shield for D1 MINI, 5V control, max 10A 250VAC load, Arduino compatible with OTA upgrade for smart home DIY automation.
Description

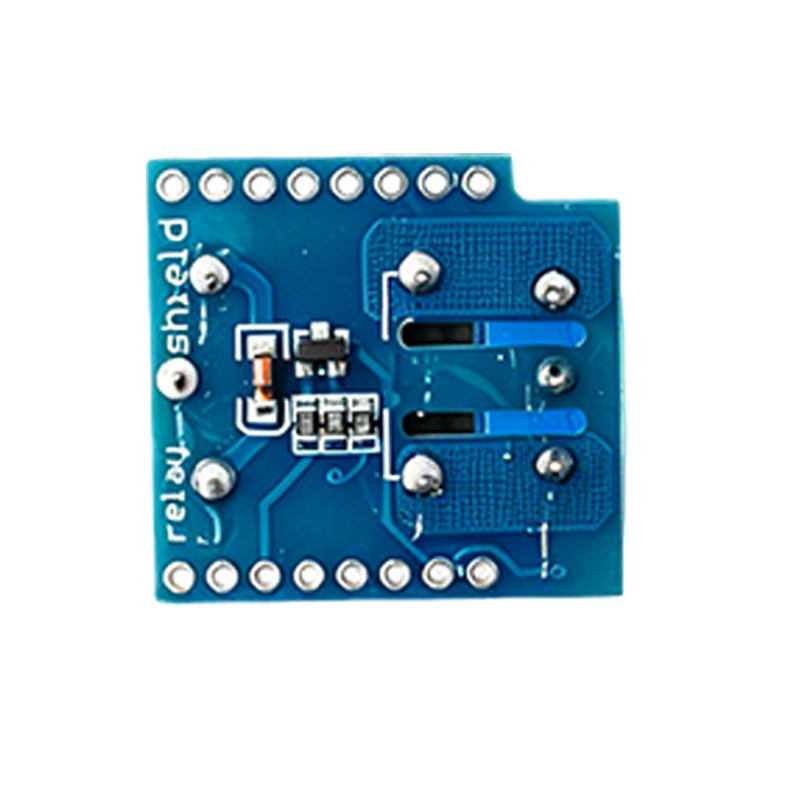

D1 MINI 1‑Channel Relay Shield Module
📌 Product Overview

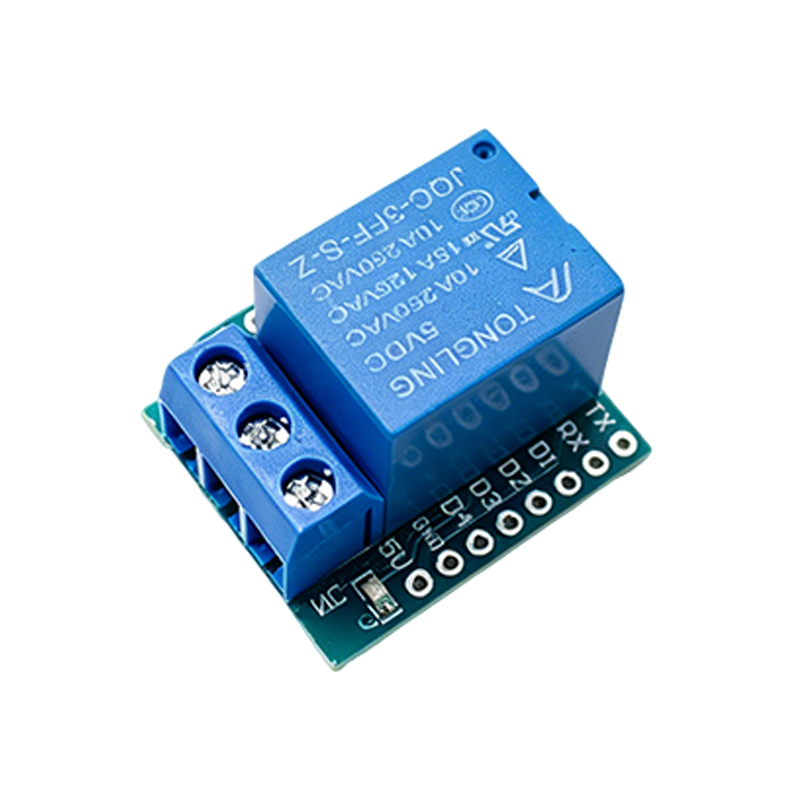

This is a dedicated 1‑channel relay expansion shield designed for the D1 MINI WiFi development board. It adopts the JQC‑3FF‑S‑Z 5VDC relay, with a contact load capacity of 10A 250VAC. The module is directly stackable onto the D1 MINI board, using the D1 pin as the control IO port. It is fully compatible with the Arduino IDE and supports OTA remote upgrade function. Compact size, easy wiring and quick assembly, ideal for smart home switching control, DIY automation projects and low‑power load control applications.✨ Core Features
- Special expansion shield for D1 MINI WiFi development board, plug‑and‑play stackable design.
- Equipped with JQC‑3FF‑S‑Z 5V relay, rated load: 10A 250VAC / 16A 125VAC.
- Control signal via D1 (GPIO5) pin of the mainboard.
- Arduino‑compatible, programmable with official Arduino IDE.
- Supports OTA wireless firmware update.
- Onboard working status indicator LED for real‑time relay state observation.
- Screw terminal block for convenient and stable high‑current wiring.
- Mini compact layout, space‑saving for embedded DIY projects.
- Industrial‑grade working temperature: -40℃ ~ +85℃.
📋 Product Parameters
| Item | Parameter |
|---|---|
| Product Model | D1 MINI 1‑Channel Relay Shield |
| Control Voltage | 5VDC |
| Relay Model | JQC‑3FF‑S‑Z |
| Max Contact Load | 10A 250VAC ; 16A 125VAC |
| Control IO Pin | D1 (GPIO5) |
| Compatibility | D1 MINI Development Board, Arduino IDE |
| Additional Function | OTA firmware update support |
| Dimension | 27.525.818mm |
| Net Weight | 12g |
| Working Temperature | -40℃ ~ +85℃ |
📐 Dimension Info
‑ Module size: 27.5X25.8X18mm, Net weight:12g⚠ Important Usage Notice
This relay module is matched for D1 MINI mainboard, confirm pin definition before power‑on. Do not exceed the rated current and voltage of the relay contact to avoid burnout. All IO ports of D1 MINI work at 3.3V logic level. Avoid continuous long‑time heavy‑load operation for heat dissipation. Kind reminder: If there are version differences or images not been updated, please refer to the actual product.🛠 Application Scenarios
Smart home control, electrical appliance switch control, IoT automation, Arduino DIY electronic projects, equipment power on‑off control.
