G3MB-202P Solid State Relay SSR Module 2A 240VAC Input 5V/12V/24V DC PCB Mount Small Relay For Arduino Industrial Control

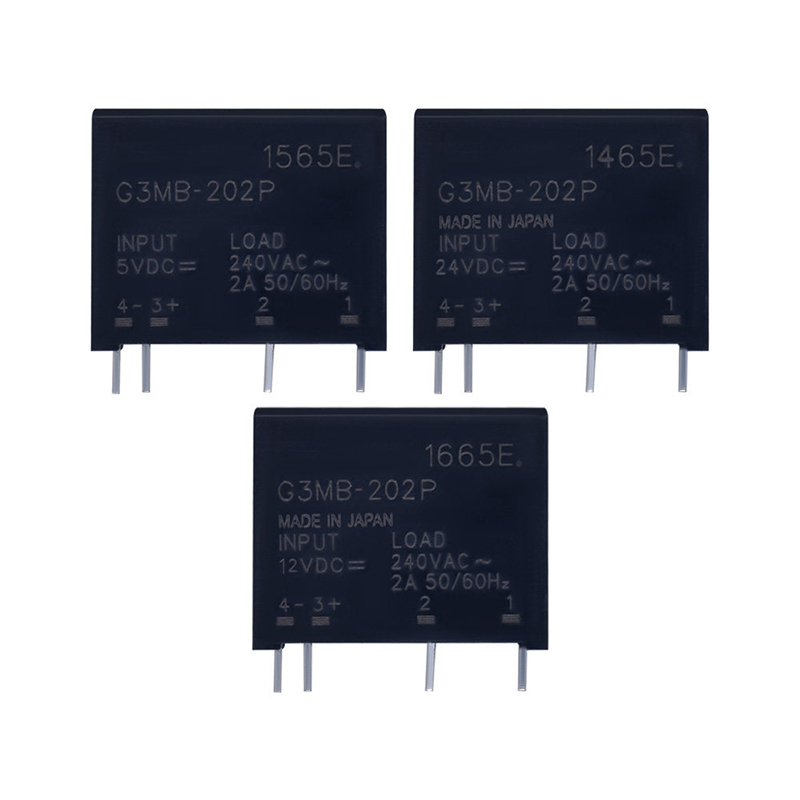

G3MB-202P Small Solid State Relay

📌 Product Overview G3MB-202P is a miniature SIP package solid state relay (SSR) for PCB mounting. It is available in 5VDC, 12VDC, 24VDC input versions. The relay supports 100~240VAC output load voltage with rated load current up to 2A. It adopts compact subminiature design, much smaller than traditional G3M series. Built-in snubber circuit and optional input resistor. Zero-crossing turn-on function is available for selected models. It features no mechanical contact, low noise, long service life and high reliability, widely used in industrial control, PLC output control, lighting control and DIY electronic projects. ✨ Core Features

• Miniature SIP in-line package for direct PCB soldering
• Multiple input options: 5VDC, 12VDC, 24VDC
• Rated load: 2A, 100~240V AC
• Built-in snubber circuit, optional built-in input resistor
• Zero cross switching version available
• No mechanical contacts, silent operation, long lifespan
• Compact size, easy to integrate into small control boards

📋 Product Parameters

Parameter	Spec
Model	G3MB-202P
Type	Solid State Relay (SSR)
Input Voltage Option	5VDC / 12VDC / 24VDC
Load Voltage Range	75 ~ 264 VAC, rated 100~240VAC
Rated Load Current	2A
Surge Current	30A (60Hz, 1 cycle)
Package	SIP-4 Pin Through Hole

📐 Dimension Info Module size: 24.5X20.5X3.9mm ⚠ Important Notes

1. Pay attention to input and load pin definition during wiring, wrong connection will cause damage.
2. Do not exceed rated 2A load current to prevent overheating burnout.
3. Proper heat dissipation is required under continuous high-load working condition.
4. The input voltage must match the purchased model.

🛠 Application Scenarios Industrial automation control, PLC peripheral control, lamp and heater control, home appliance control, smart home system, electronic DIY and prototype development.
