G120F USB High Speed Programmer Driver‑free SPI Flash Programmer Support 24XX 25XX 95XX 45XX Chip
G120F USB High Speed Programmer Driver‑free SPI Flash Programmer Support 24XX 25XX 95XX 45XX Chip
Price :
$9.72 $13.70Price range: $9.72 through $13.70
- Information related to taxation
- Some question to contact us
- Shipping Information
G120F high‑speed USB programmer with ARM 32‑bit CPU, driver‑free under Win8‑Win11. Supports 24XX/25XX/95XX/45XX chips, one‑to‑two dual‑slot batch programming, auto‑identify chip, auto voltage switch, ideal for repair and mass‑production burning.
Description

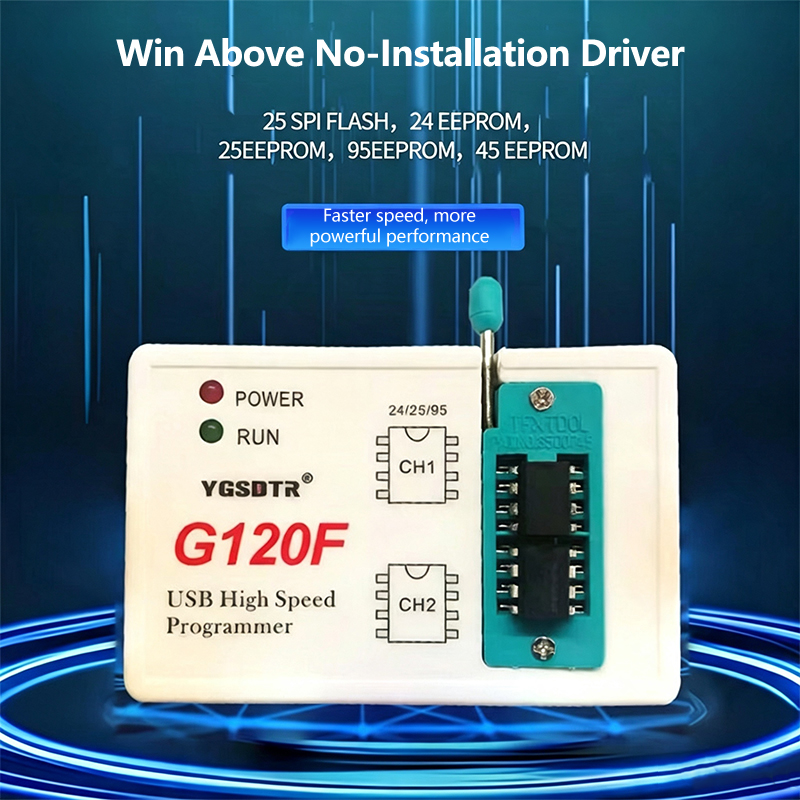

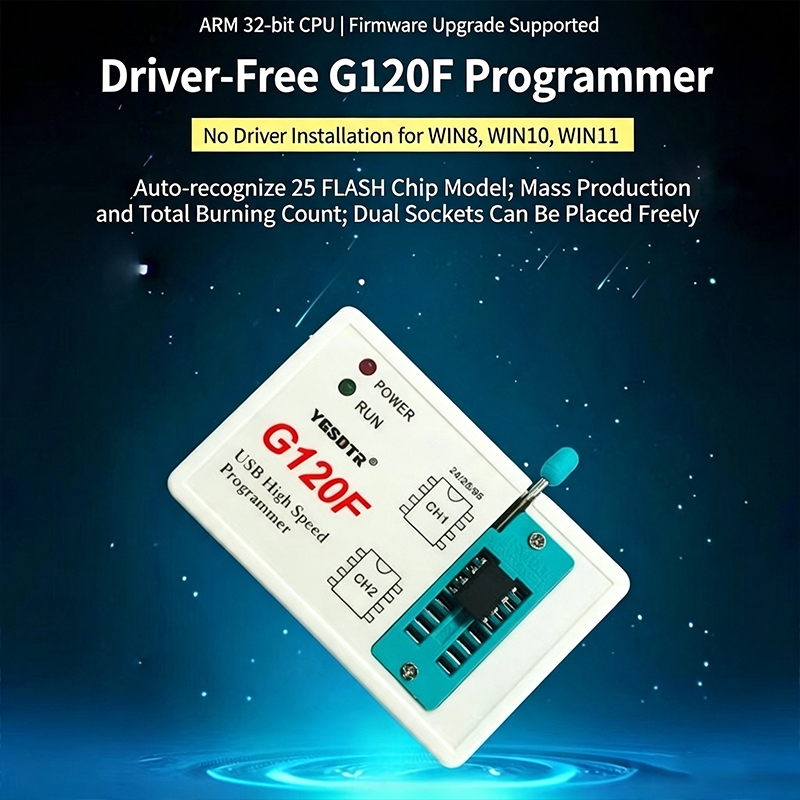

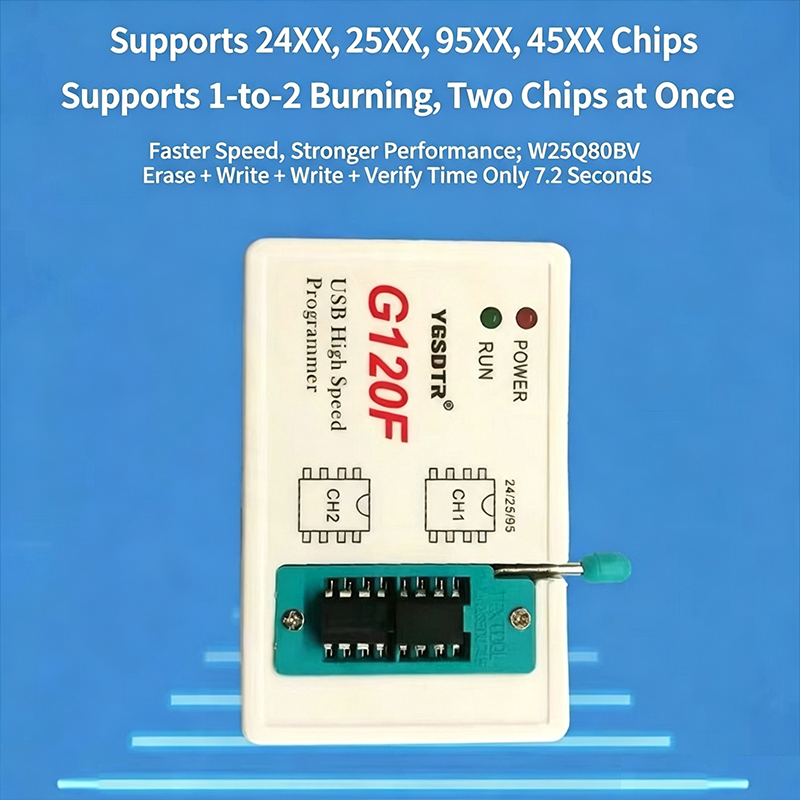

✅ G120F USB High‑Speed Programmer
The G120F is a driver‑free high‑speed USB programmer built with ARM 32‑bit 72MHz CPU core. It adopts USB2.0 high‑speed data transmission interface to realize ultra‑fast chip burning performance.
📌 Core Features
- Driver‑free for WIN8 / WIN10 / WIN11; XP and WIN7 need manual driver installation
- Support chip models: 24XX, 25XX, 95XX, 45XX series chips (45XX chips require special socket)
- One‑to‑two programming, burn two chips simultaneously, dual‑slot freely placed
- Automatic identification of SPI FLASH chip model; auto‑detect chips by pressing operation button
- Auto‑erase, write and verify function; auto‑remove chip protection
- Auto‑switch programming voltage, support 3.3V & 5V chip programming
- Max support 1Gb large‑capacity chip; W25Q80BV erase‑write‑verify only takes 7.2 seconds
- Batch programming mode, unlimited loop batch burning for mass‑production
- Both hardware and firmware support upgrade; complete upper‑computer software
- Multilingual software UI: Simplified Chinese, Traditional Chinese, English
- Flame‑retardant housing, quality‑assured, support bulk customization service
| Item | Parameter |
|---|---|
| CPU | ARM 32‑bit 72MHz |
| Interface | USB2.0 |
| Supported OS | XP / WIN7 / WIN8 / WIN10 / WIN11 |
| Programming Voltage | 3.3V / 5V auto switch |
| Max Chip Capacity | 1Gb |
| Burning Mode | Normal / One‑to‑two batch programming |
📋 Application Scenarios
- Home Appliance Repair: Write storage chips for TV, DVD, mainboard, hard disk and other equipment maintenance.
- Product R&D: Chip burning and verification in product development laboratory.
