USB Blaster Downloader Cable Stable Version FPGA CPLD JTAG Programmer Debugger Download Wire For Altera Development Board

USB Blaster Rev.C Download Cable

📌 Product Overview USB Blaster Rev.C is a high‑performance FPGA & CPLD download emulator compatible with ALTERA series chips. It adopts USB2.0 full‑speed transmission, supporting three mainstream download modes including JTAG, AS and PS. It works perfectly with Quartus II software, realizing firmware downloading, online debugging and SignalTap II logic analysis for FPGA/CPLD devices. Compared with the traditional parallel‑port ByteBlaster II, its downloading speed is greatly improved, equipped with POWER and ACT status indicator lights to observe working state conveniently. Compact housing design is easy to carry for embedded development and laboratory debugging. ✨ Core Features

• Version: Rev.C, USB 2.0 full‑speed interface
• Compatible with full‑range ALTERA FPGA, CPLD and configuration chips
• Support 3 download modes: JTAG, AS, PS, interface voltage 1.2V‑5.5V
• Support SignalTap II embedded logic analyzer and Nios II in‑system debugging
• Download speed is 6 times faster than ByteBlaster II parallel download line
• Dual LED indicators: POWER and ACT for running status monitoring
• Cooperate with Quartus II development software, built‑in driver for Quartus II V8.1 and above
• Support Windows XP / Vista / Win7 32bit & 64bit system
• Small size, light weight, with flat ribbon cable for easy wiring

📋 Product Parameters

Item	Specification
Model	USB Blaster Rev.C
Communication Interface	USB2.0 Full Speed
Download Mode	JTAG / AS / PS
Target Voltage Range	1.2V‑5.5V
Housing Size	56.5mm × 28mm
Net Weight	12.2g
Supported Chips	Cyclone / Stratix / MAX / ACEX1K / APEX20K / FLEX10K / EPCS series
Applicable Software	Quartus II

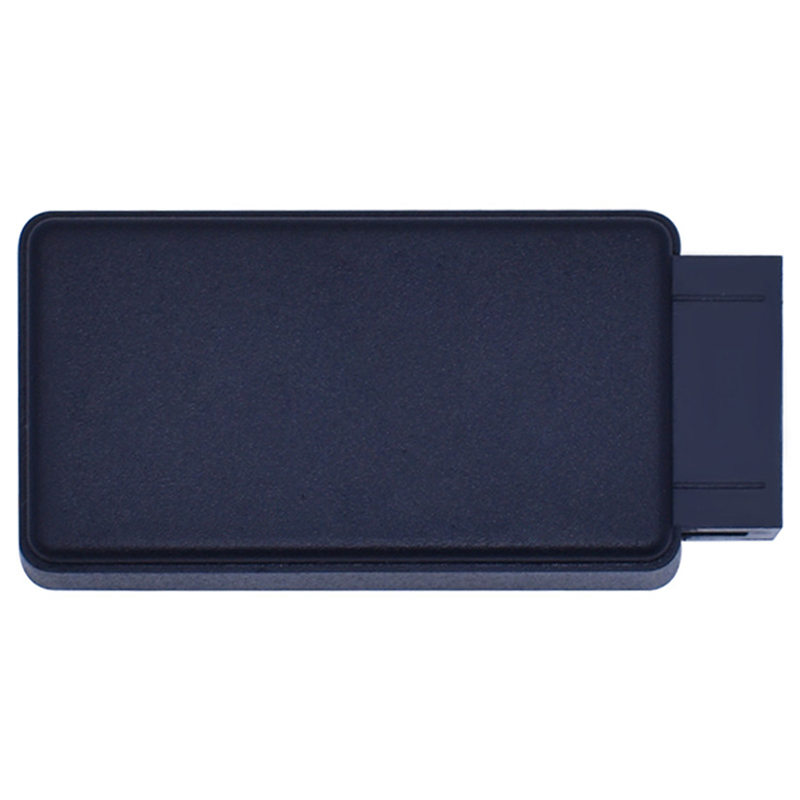

📐 Dimension Info Main body size: 56.5mm × 28mm Net weight: 12.2g Equipped with 10‑pin flat download cable ⚠ Important Usage Notice

1. Stable performance on Intel CPU computers; poor compatibility for AMD CPUs, not recommended for AMD platforms.
2. Windows 10 system may have unstable connection or identification failure.
3. Quartus II version 8.1 and later integrate built‑in drivers, no extra driver installation required. Win7 users are advised to use Quartus II 10.1 or newer.
4. The product only contains hardware download cable, without technical development support.
5. Check pin definition before wiring to avoid reverse connection damage to the target board.

🛠 Application Scenarios FPGA / CPLD program downloading, Nios II embedded debugging, SignalTap II real‑time logic capture, electronic engineering DIY, university laboratory development, industrial FPGA prototype verification
