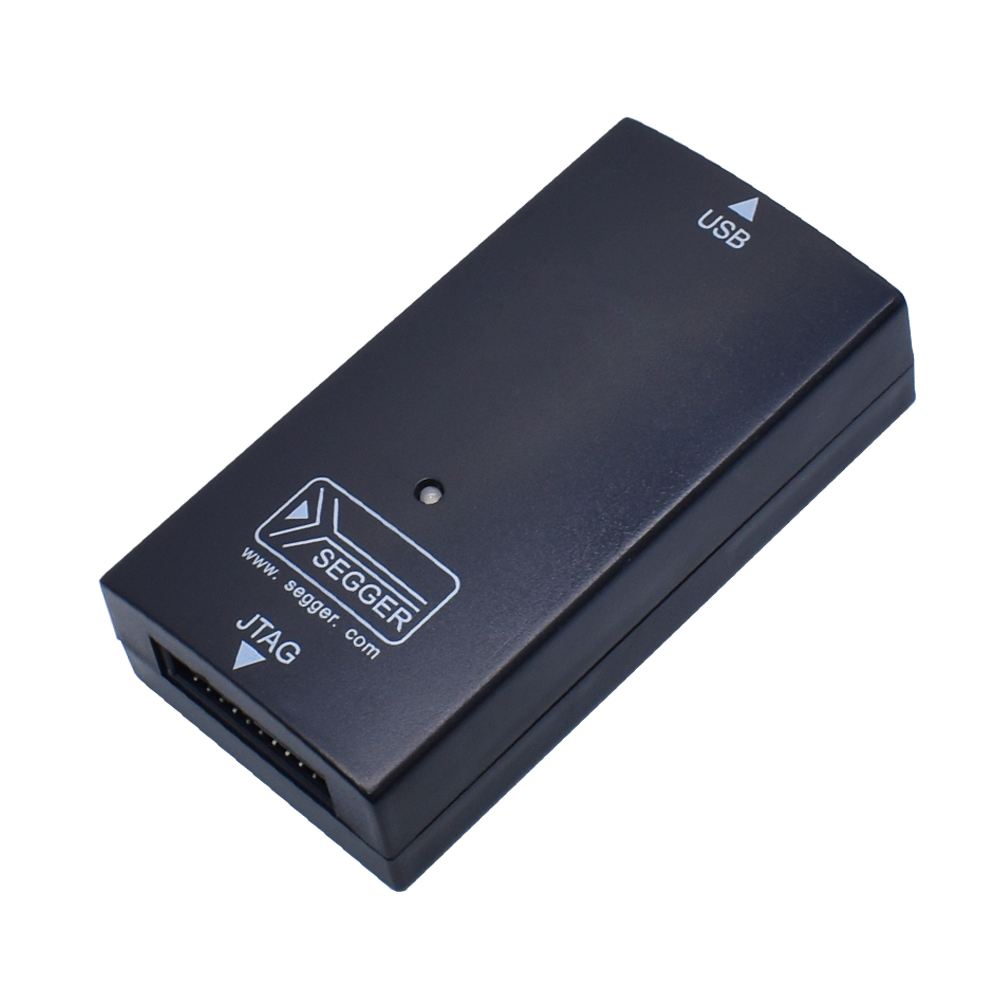

High Speed J-Link JLink V8 USB JTAG ARM Emulator Debugger J-Link V9 Emulator STM32F103C8T6 STM MCU

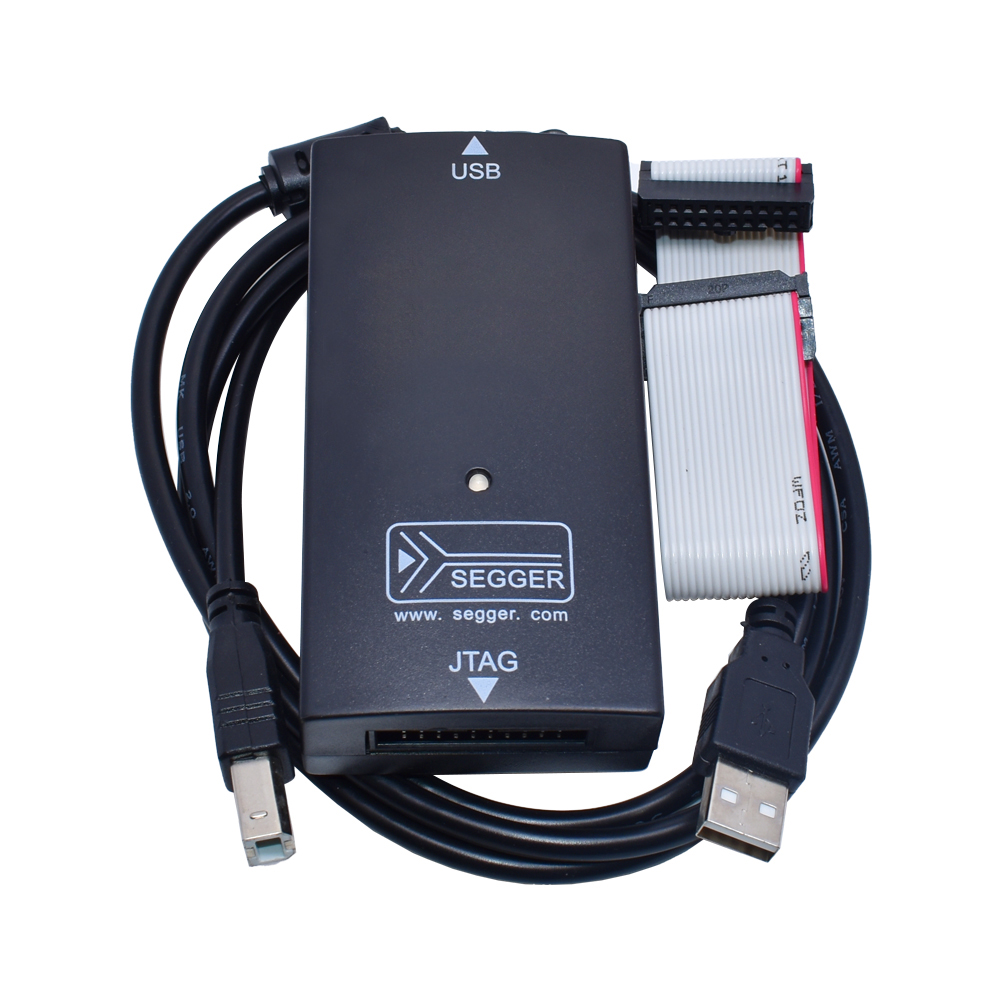

High Speed J-Link JLink V8 USB JTAG ARM Emulator Debugger J-Link V9 Emulator STM32F103C8T6 STM MCU - Image 3

SKU N/A Category Downloader Simulator

High Speed J-Link JLink V8 USB JTAG ARM Emulator Debugger J-Link V9 Emulator STM32F103C8T6 STM MCU

Name: High Speed J-Link JLink V8 USB JTAG ARM Emulator Debugger J-Link V9 Emulator STM32F103C8T6 STM MCU
Brand: WAVGAT

Price :

$10.00 $10.50Price range: $10.00 through $10.50

versions

Clear

High-speed USB 2.0 interface, stable and fast data transmission, plug and play
Dual JTAG/SWD interface support, compatible with all ARM7/ARM9/Cortex-M core chips
Wide compatibility, perfectly fits STM32F103C8T6 and all STM32 series MCUs
V8 & V9 dual versions optional, meet basic and high-speed development demands
1.8V-5.5V wide voltage adaptive design (V9 version), strong hardware compatibility
Supports real-time debugging, breakpoint detection, batch burning and RTT high-speed transmission
Compatible with Keil, IAR, STM32CubeIDE, J-Flash and other mainstream software
Durable hardware, strong anti-interference, low power consumption and high stability

Description

High Speed J-Link V8/V9 USB JTAG ARM Emulator Debugger Product Description

This high-performance J-Link V8 and V9 USB JTAG/SWD emulator debugger is a professional programming, downloading and debugging tool specially designed for ARM architecture microcontrollers. Fully compatible with mainstream STM32 series MCUs such as STM32F103C8T6, it is widely applicable to embedded development, program burning, online debugging and firmware verification, serving as an essential auxiliary tool for electronic engineers and embedded developers.

Adopting standard USB 2.0 high-speed transmission interface, this debugger features stable connection, fast data transmission and strong anti-interference capability. It supports dual mainstream debugging interfaces of JTAG and SWD, perfectly matching the development and debugging requirements of most ARM core chips including ARM7, ARM9 and Cortex-M series. Compared with ordinary debugging tools, it delivers outstanding speed and stability in program downloading, real-time debugging and firmware flashing.

There are obvious performance upgrades between J-Link V8 and V9 versions to meet different development demands. The classic J-Link V8 supports a maximum 10MHz clock frequency under JTAG mode and 4MHz under SWD mode, with mature and stable hardware solution, low failure rate and excellent compatibility for daily STM32 development. The upgraded J-Link V9 further optimizes the hardware circuit, boosting the maximum JTAG clock speed to 20MHz and SWD clock speed to 15MHz, realizing faster program downloading and real-time debugging. Equipped with an adaptive voltage detection module, it automatically adapts to target board voltage from 1.8V to 5.5V, effectively solving compatibility problems of different voltage-level hardware devices and improving debugging success rate and stability.

This emulator supports full-featured debugging functions, including single-step debugging, breakpoint setting, real-time variable monitoring, program tracking and offline firmware burning. It is perfectly compatible with mainstream development software such as Keil, IAR, STM32CubeIDE and J-Flash, and supports mass production batch programming, greatly improving development and production efficiency. In addition, it supports SWV/SWO serial wire output and RTT real-time transmission functions, enabling developers to quickly view program running status and locate code bugs.

Compact in size, plug-and-play and easy to carry, the tool comes with complete driver support, no complicated configuration is required for use. It is highly compatible with all STM32 series microcontrollers represented by STM32F103C8T6, and also applicable to other mainstream ARM MCUs. With reliable performance, strong compatibility and cost-effective advantages, it is ideal for student learning, personal development, enterprise project debugging and mass production programming.
